1 / 5
| Model NO. | Rubber Backed Ceramic Wear Liner |
| Material | Alumina Ceramic |
| Installation | Bolt Fastening |
| Al2O3 Content | 92% |
| Density | 3.6g/cm³ |
| Compression Strength | 1050MPa |
| Ceramic Thickness | 3-75mm |
| Steel Plate | Q235A (3-10mm) |
| Hardness (Hv) | 950n/mm² |
| Rubber Material | Natural Rubber |
| Bending Strength | 220 MPa |

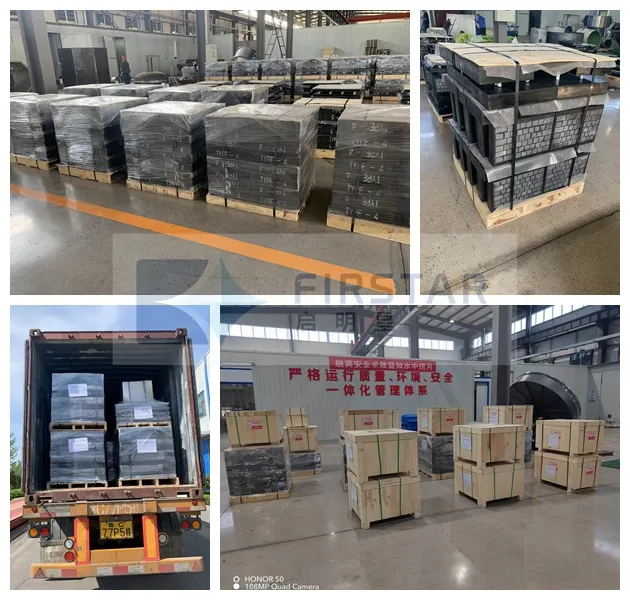

| Package Weight | 25.000kg |

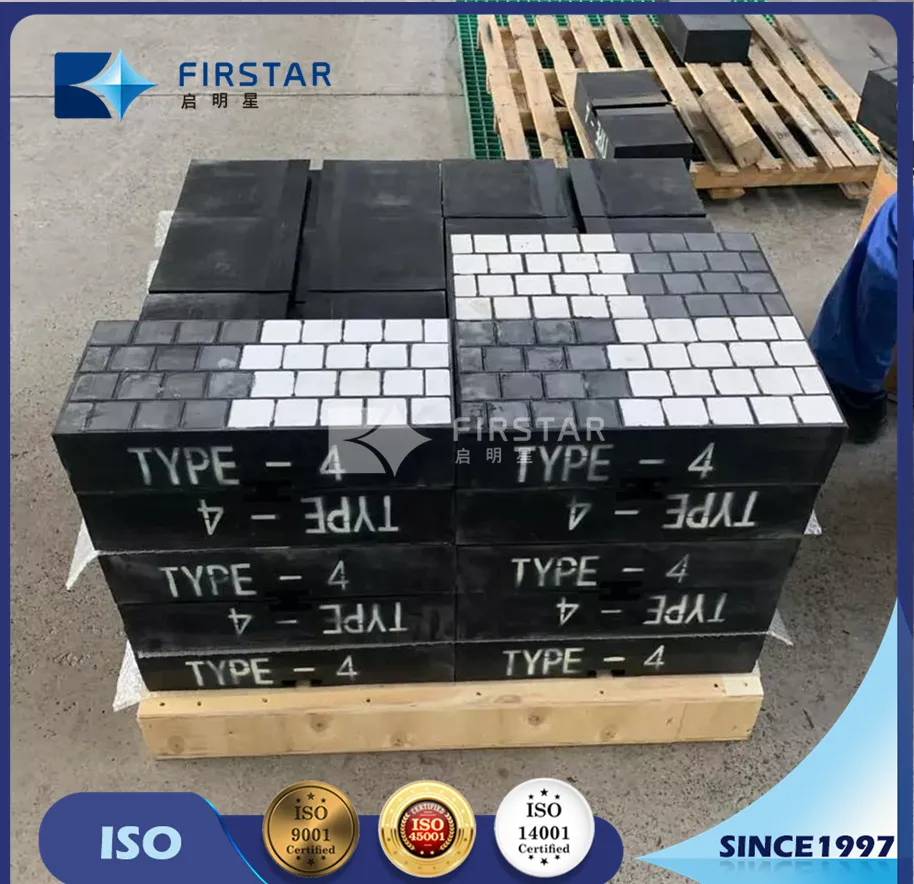

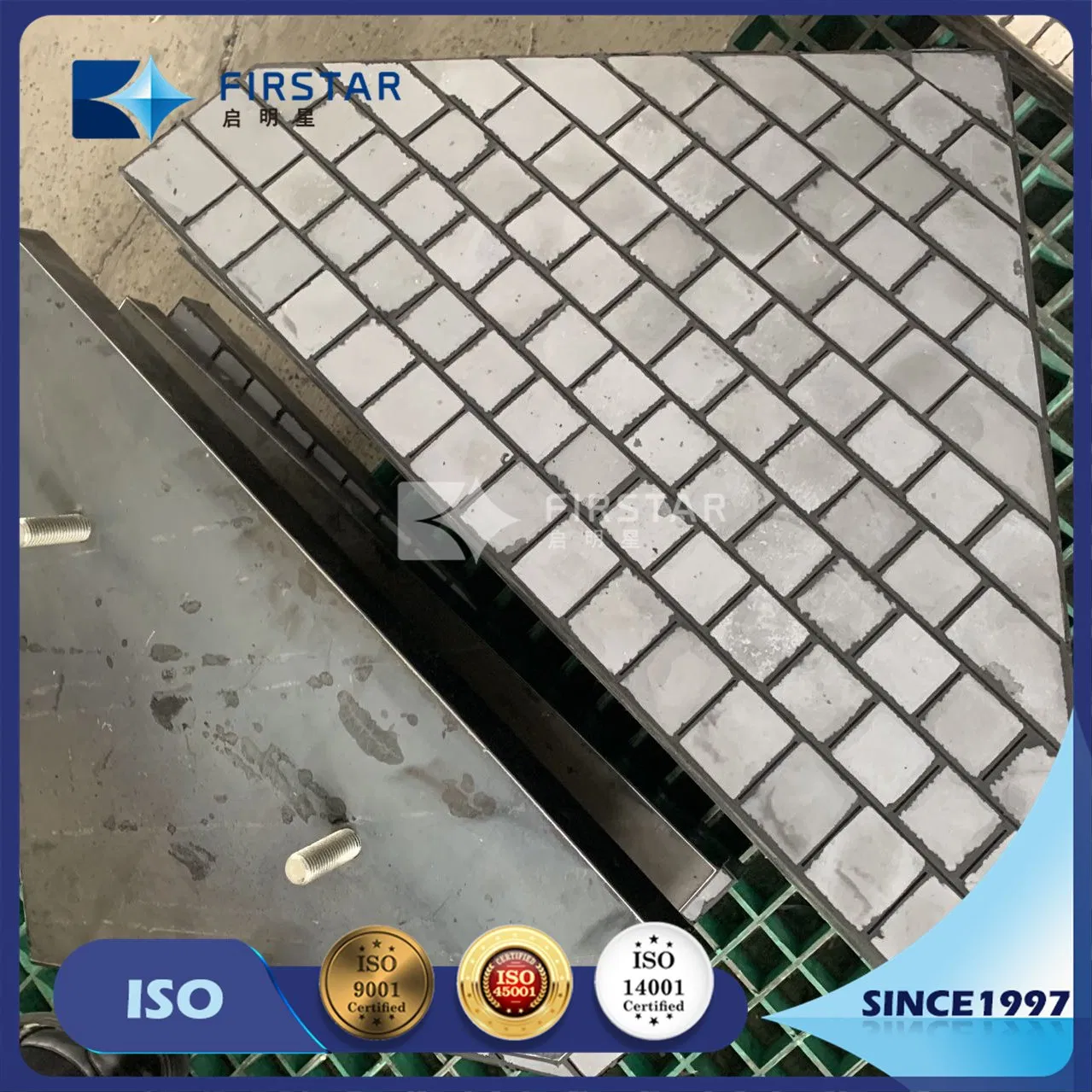

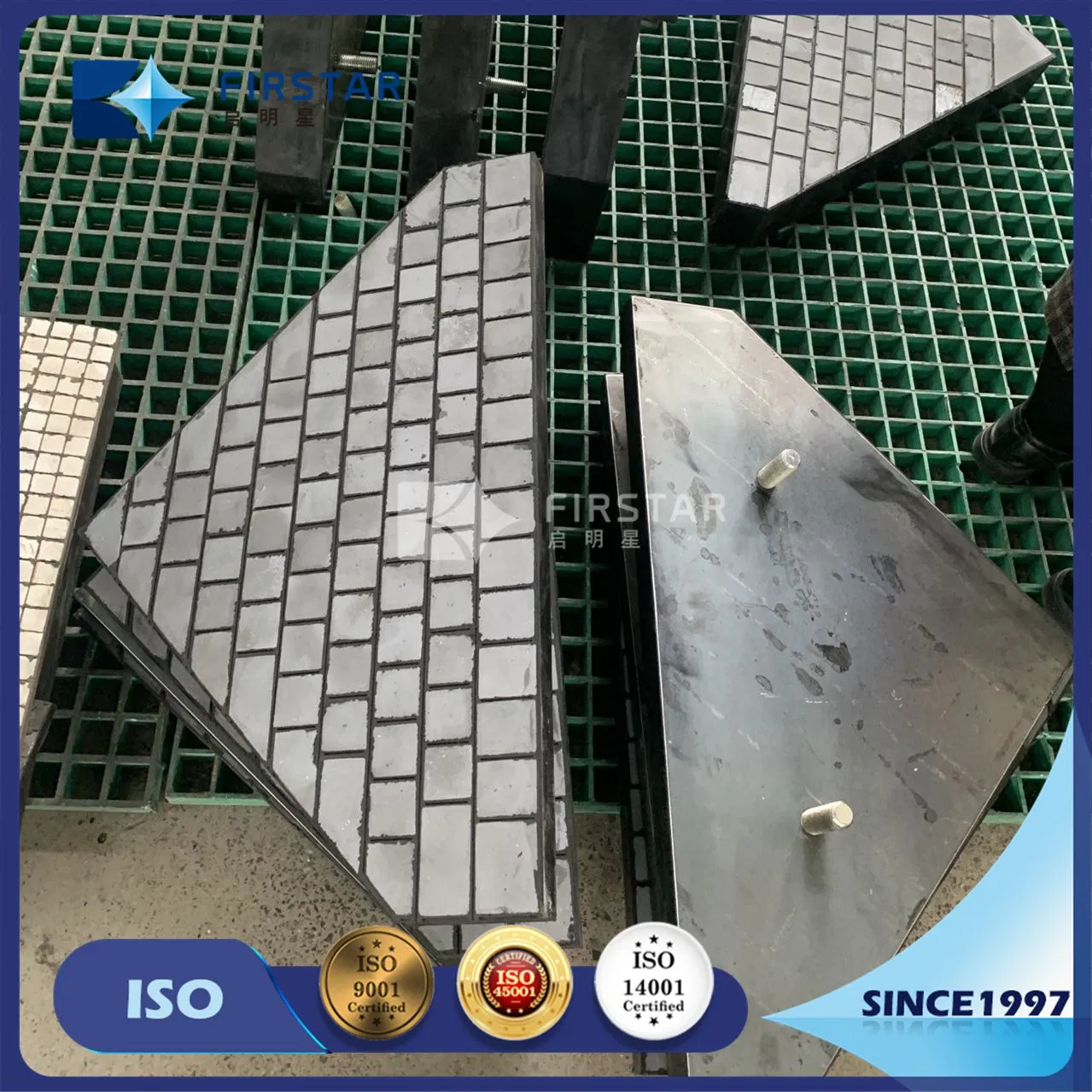

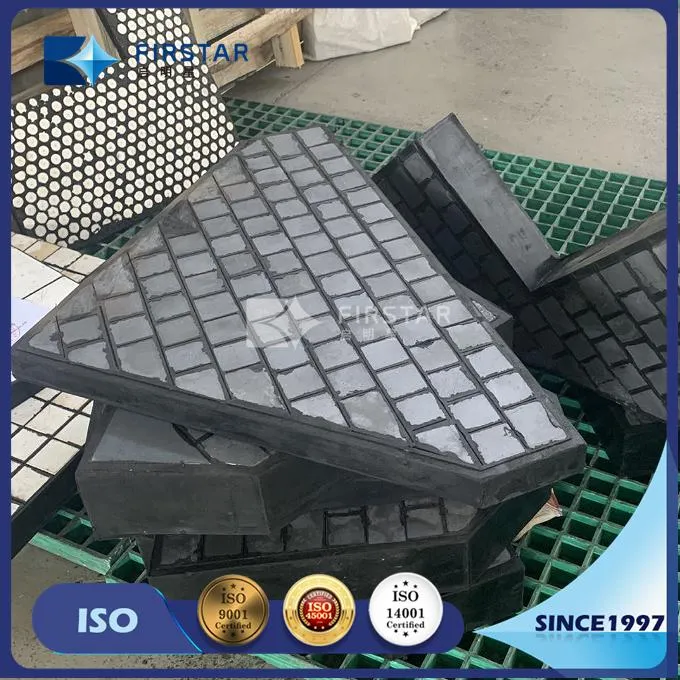

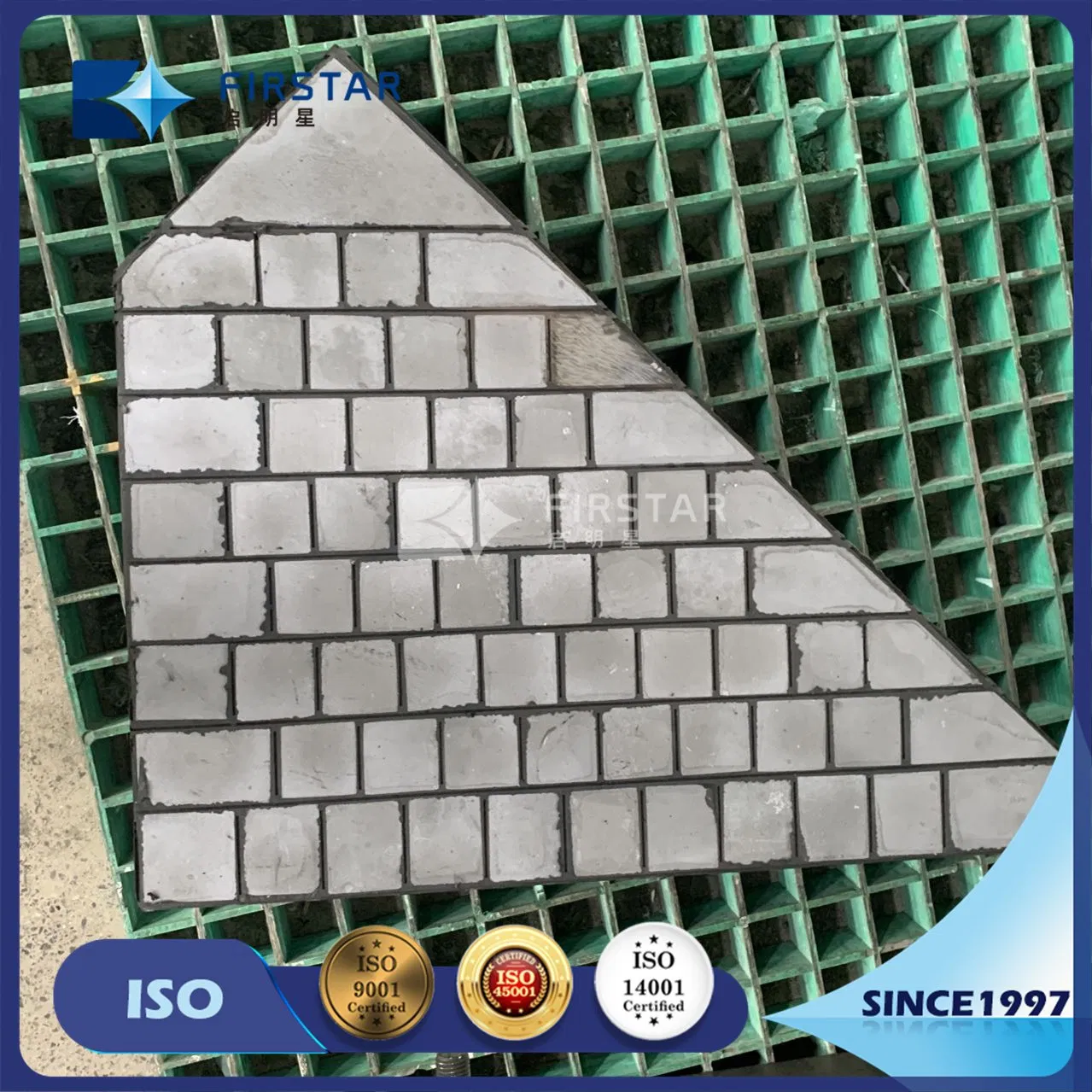

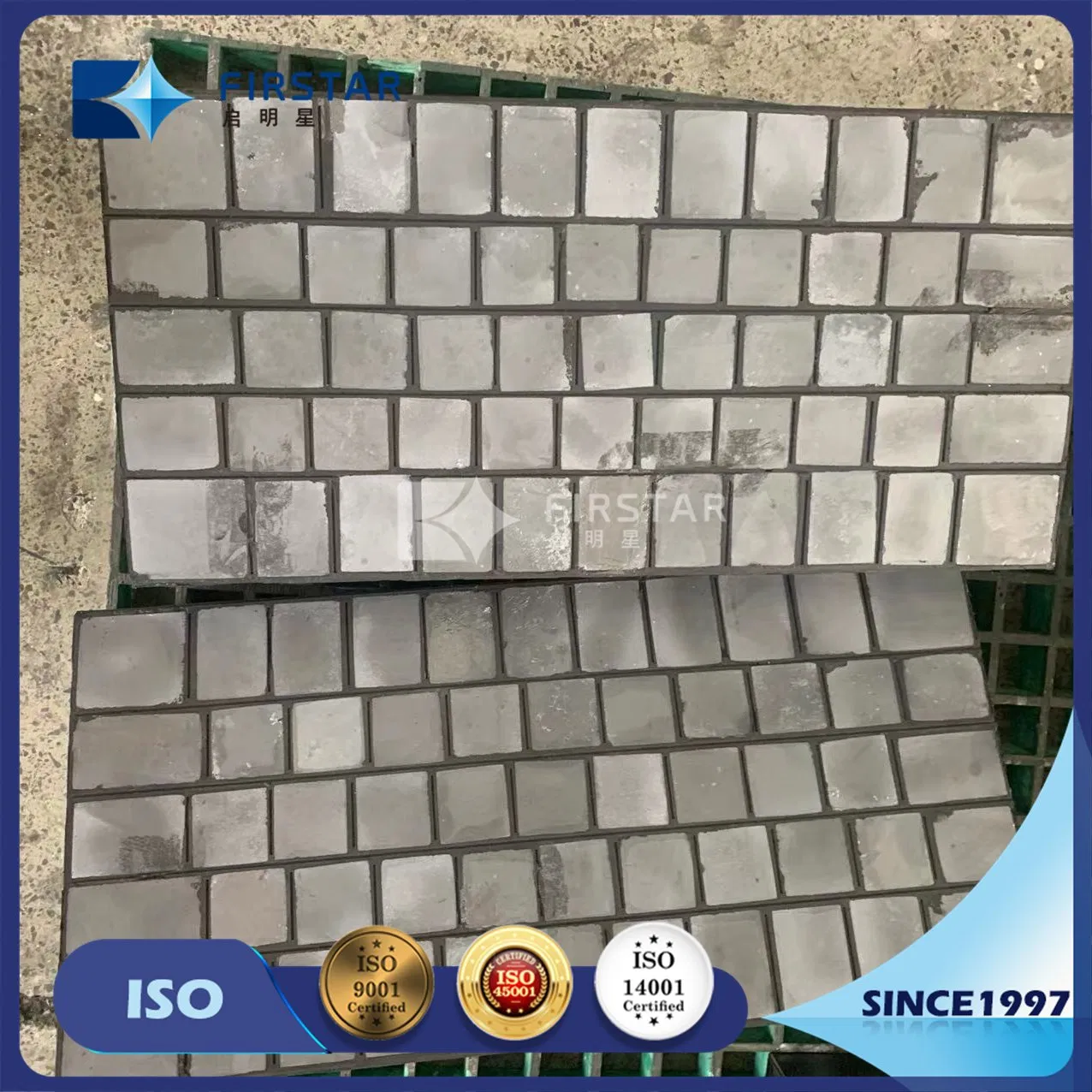

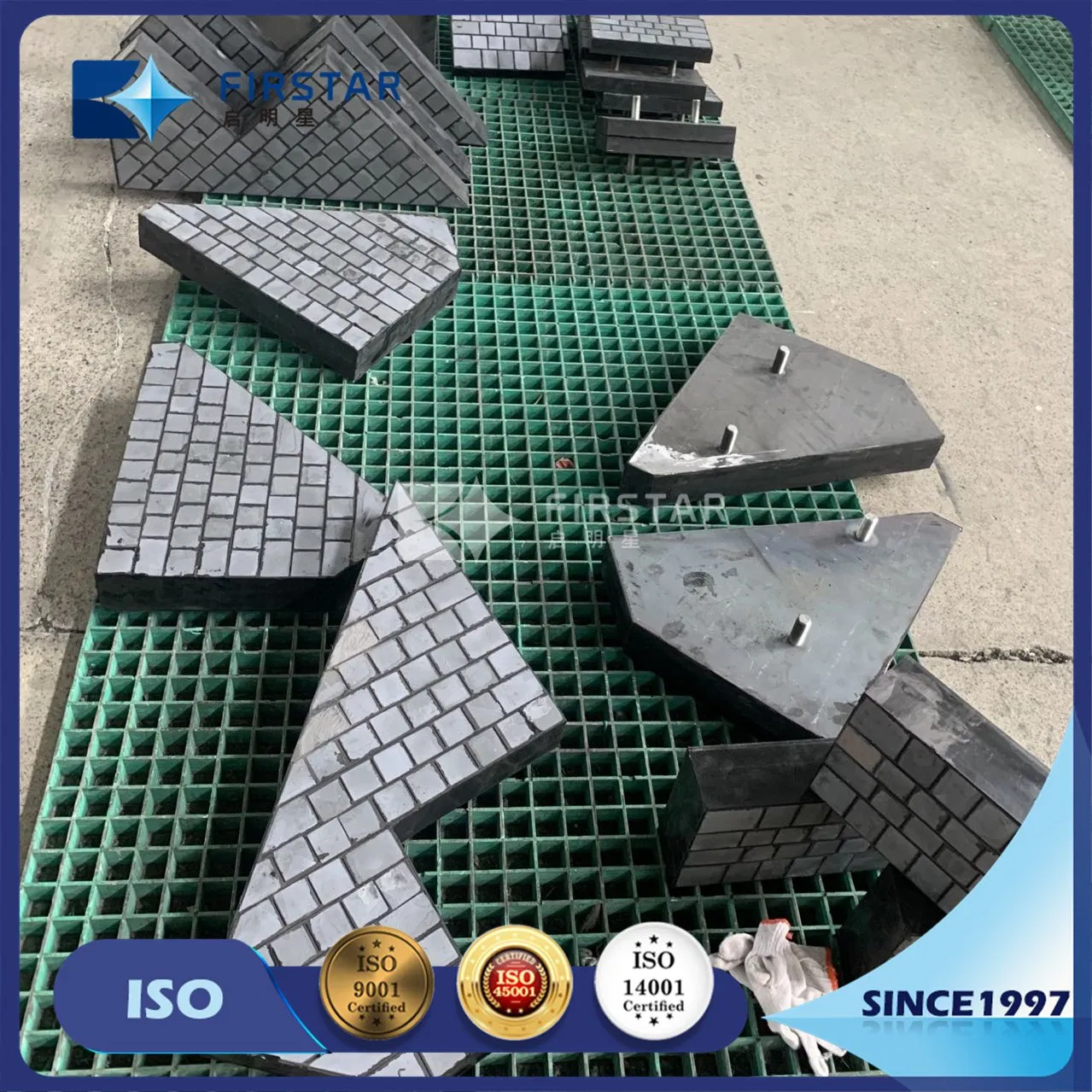

Ultra-Durable Silicon Carbide Ceramic Composites Wear Liner for Harsh Environments

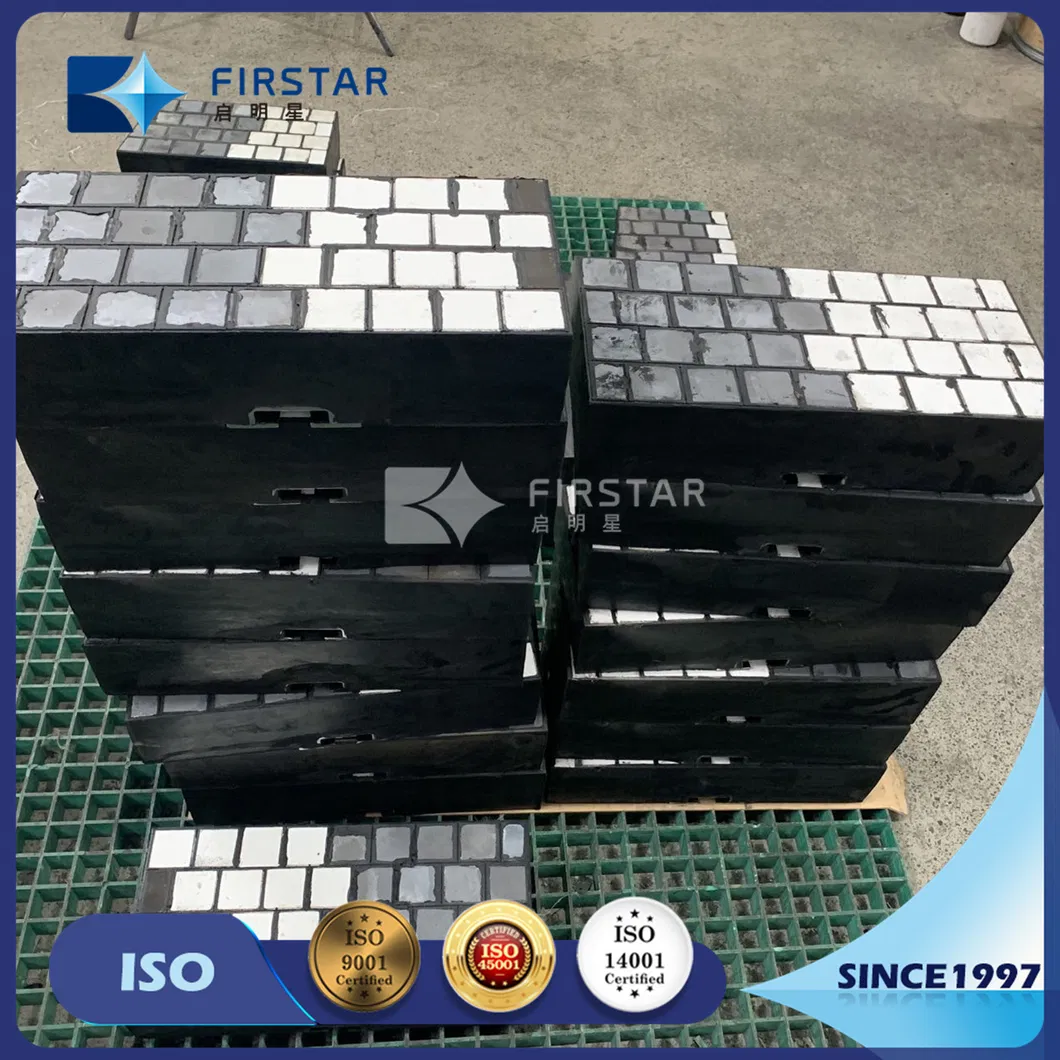

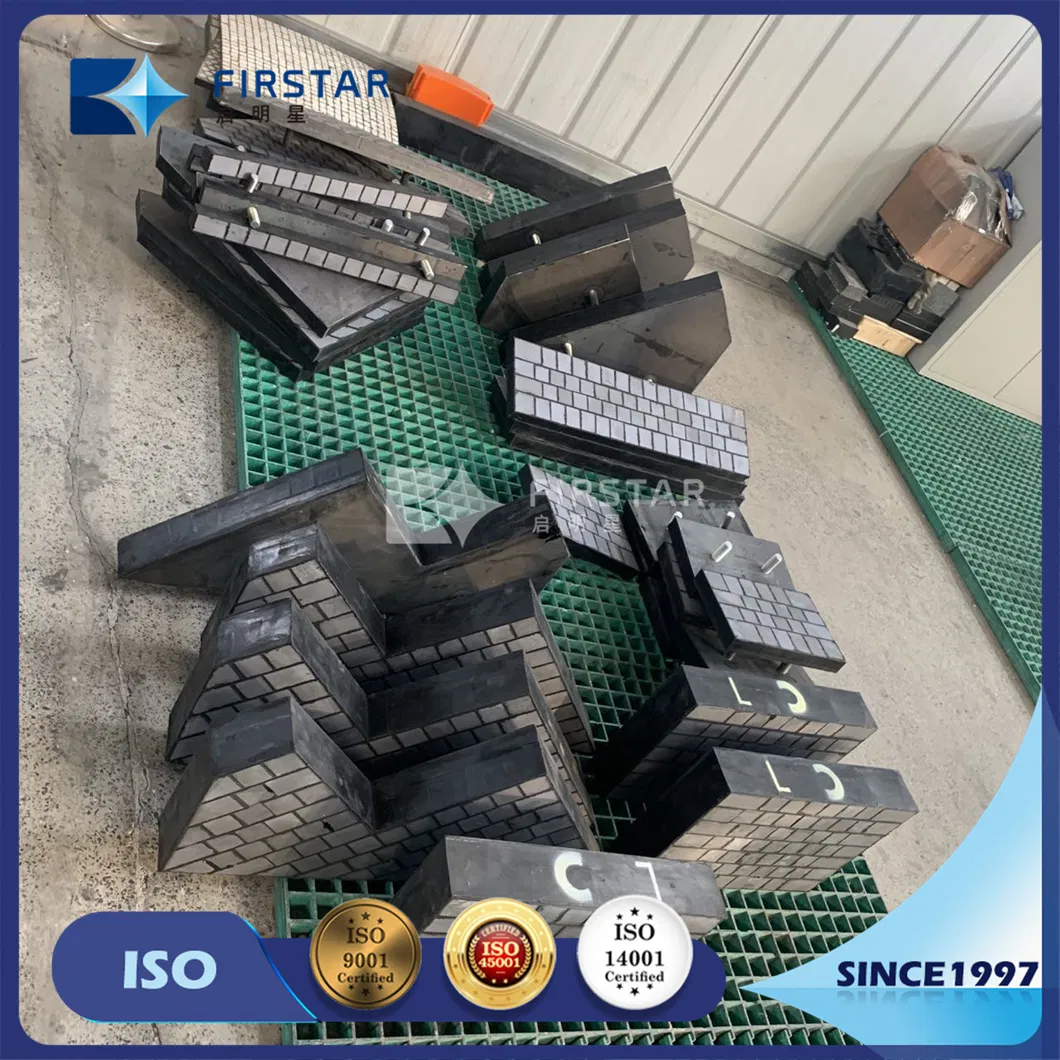

In aggressive industrial applications, equipment subject to high impact and abrasion suffers mechanical and chemical attack. Our composite ceramic wear liners are designed for the toughest environments. By vulcanizing large, hard ceramic bricks into a matrix of wear-resistant rubber, we create a solution where the rubber acts as a dampener to prevent ceramic crushing under extreme impact.
| Component | Attributes | Properties |
|---|---|---|
| Ceramic Tiles | Material | 92%, 95%, T95%, 96%, ZTA |
| Rubber | Tensile Strength | ≥15Mpa |
| Rubber | Shore Hardness | 45-65 |
| Rubber | Working Temp | -50ºC - 200ºC |
| Steel Plate | Material | Q235A |
| Adhesive | Peel Strength | 48h N/2.5cm ≥ 120 |
Providing quality wear and anti-impact ceramics supported by an Ultrafine Energy Efficiency Technology Research Institute. Our focus is on increasing the lifespan of wearable parts through new improved technologies and product innovation supported by scientific research.

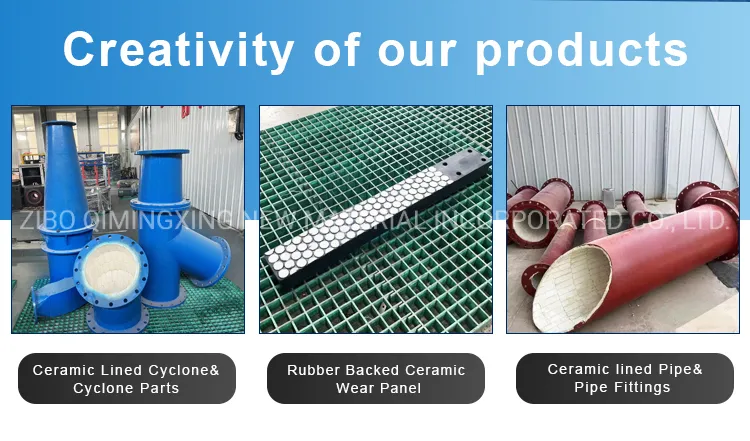

Abrasion Ceramics: Alumina pipe liners, ceramic tubes, weldable tiles, rubber-backed ceramic liners, mosaic sheets, and pre-fabricated pipe sleeves.

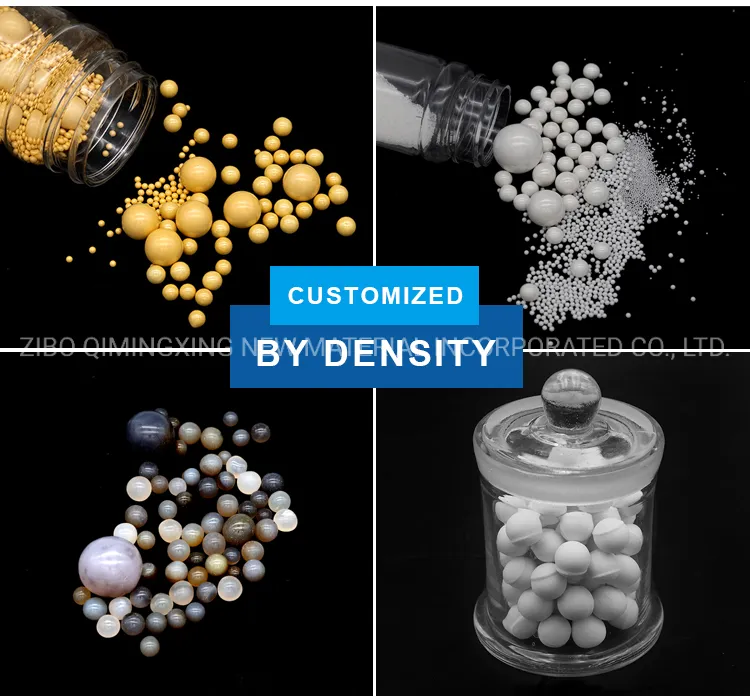

Grinding Media: 92%, 95%, 99% Alumina media, ZTA 370/380/450/470, and Zirconia grinding media.
