| Model NO. | Rubber Backed Ceramic Panel |
| Material | Aluminum |
| Type | Wear Resistant Plate |
| Thickness | 37mm/63mm |
| Tensile Strength at Break | >10.6MPa |
| Elongation at Break | >350% |
| Shore Hardness | 60-70 |
| Adhesive (Rubber&Ceramic) | >3.8 MPa |
| Adhesive (Rubber&Equipment) | >3.5 MPa |
| Material Detail | Ceramic, Rubber, Steel |
| Production Capacity | 18000 Tons/Years |
| HS Code | 6909120000 |

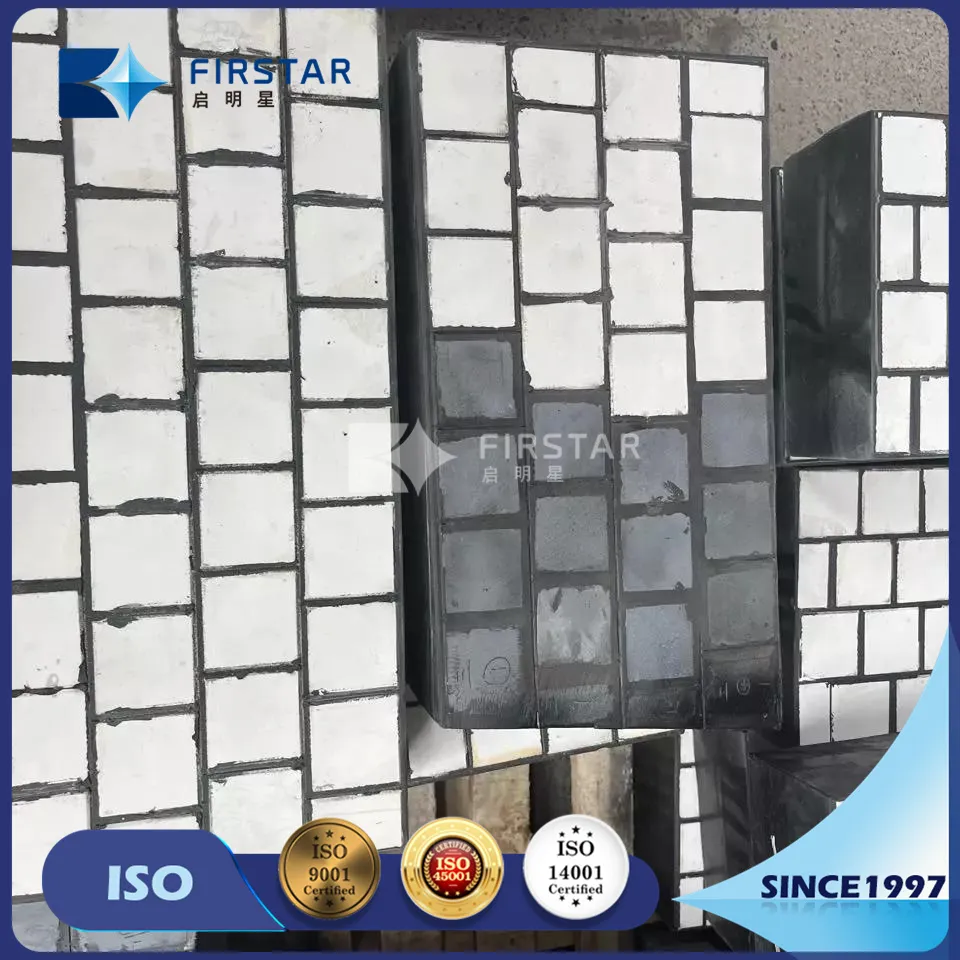

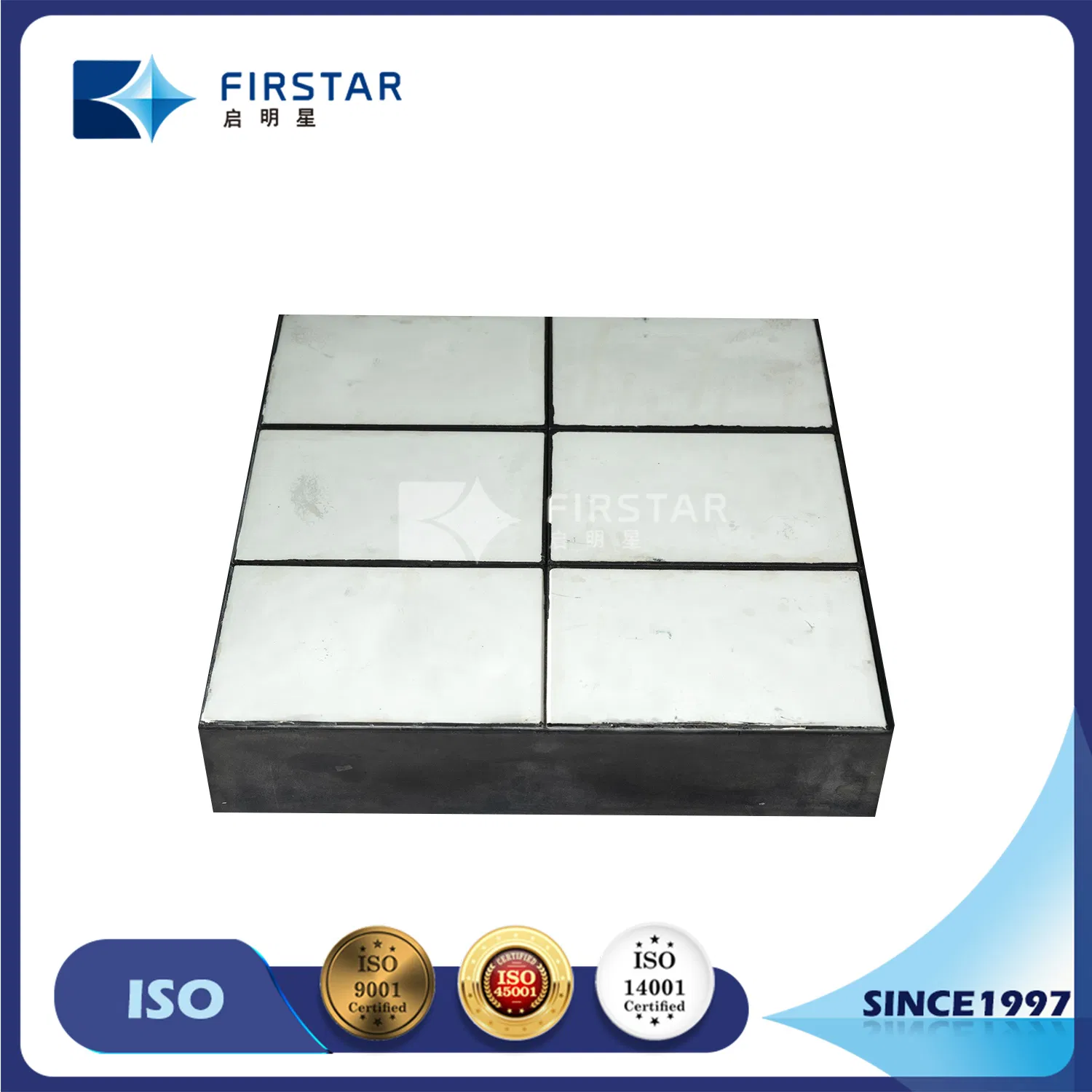

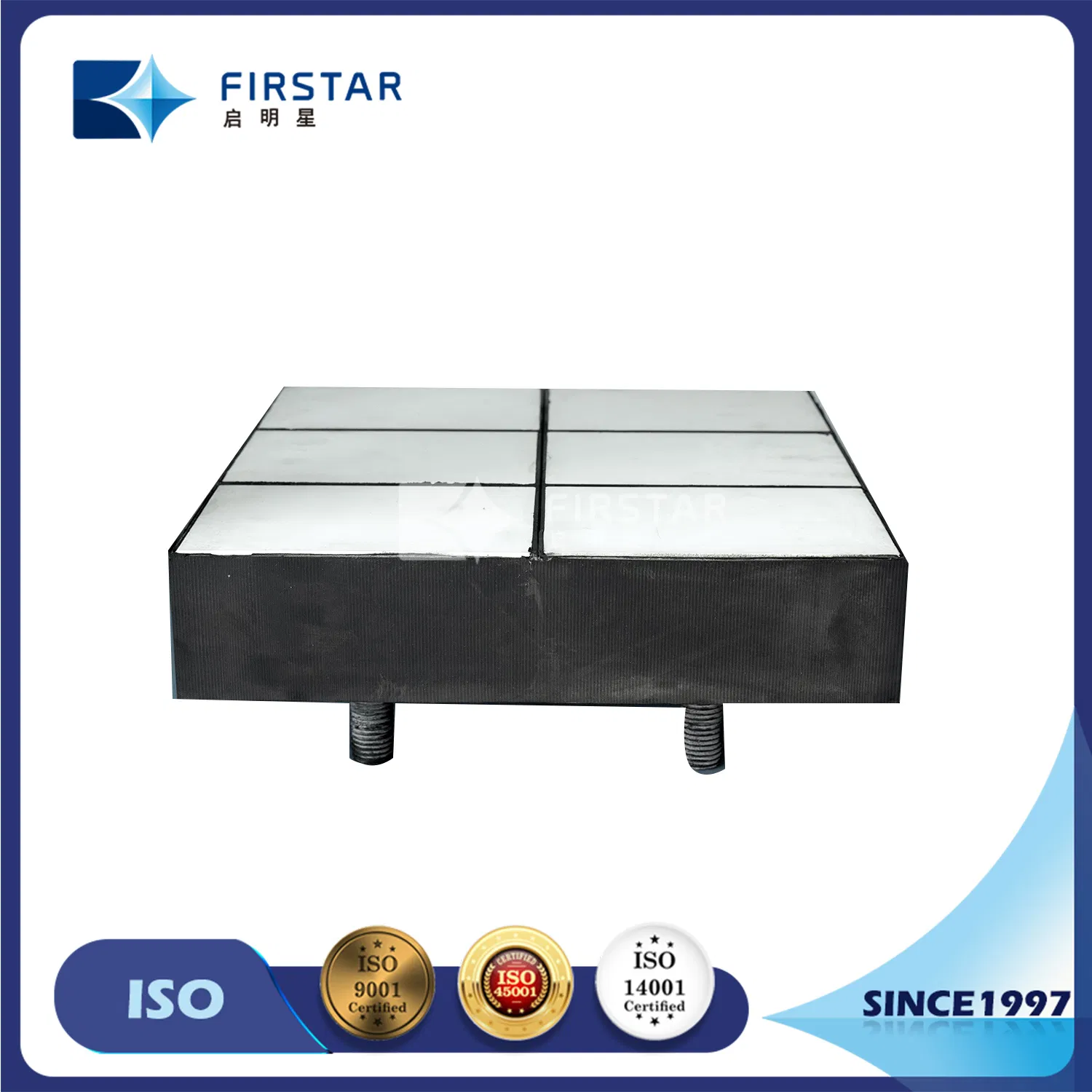

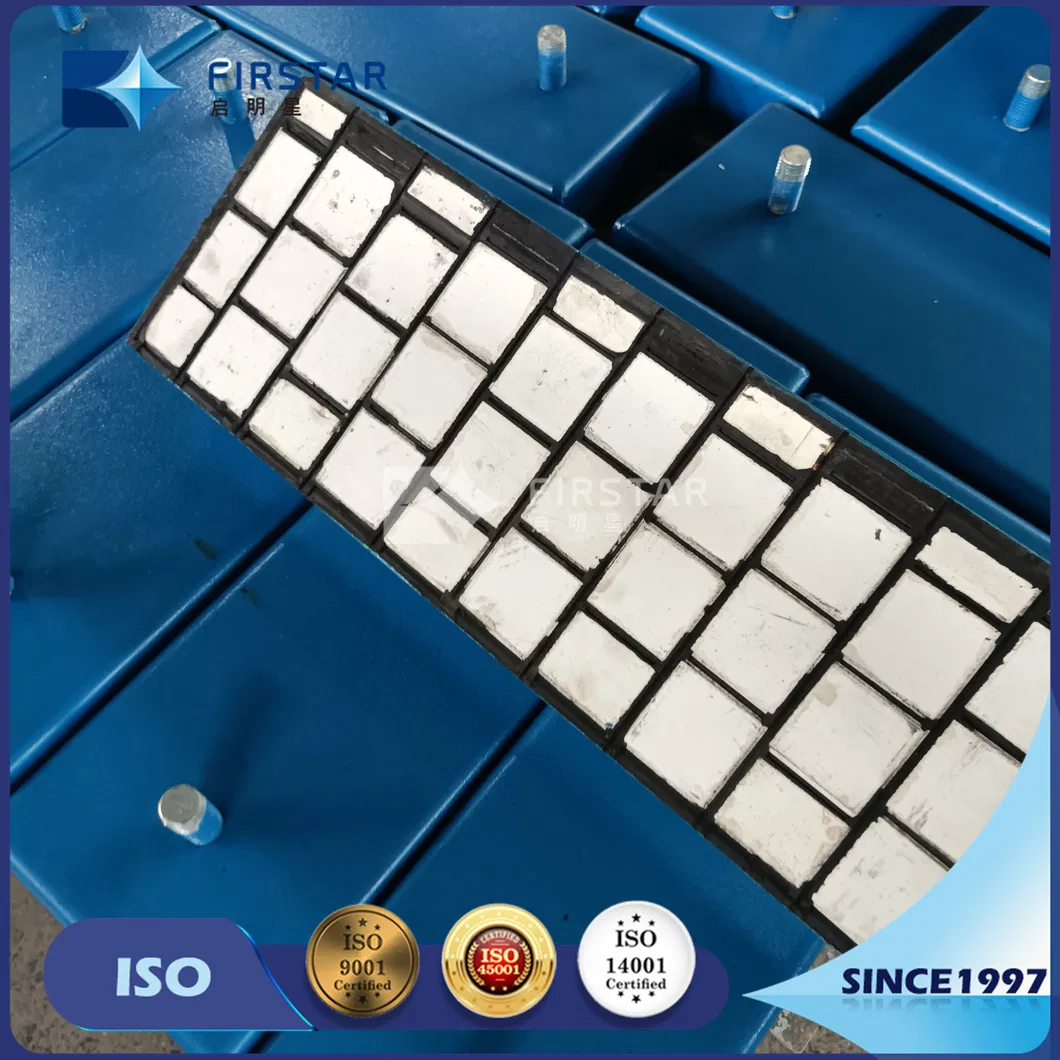

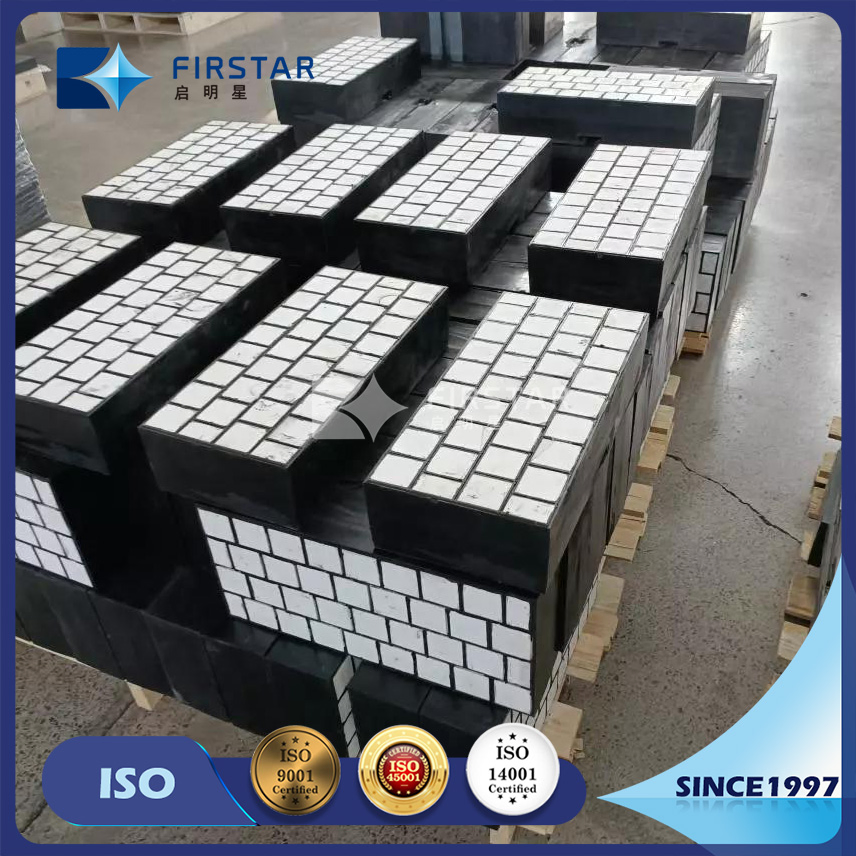

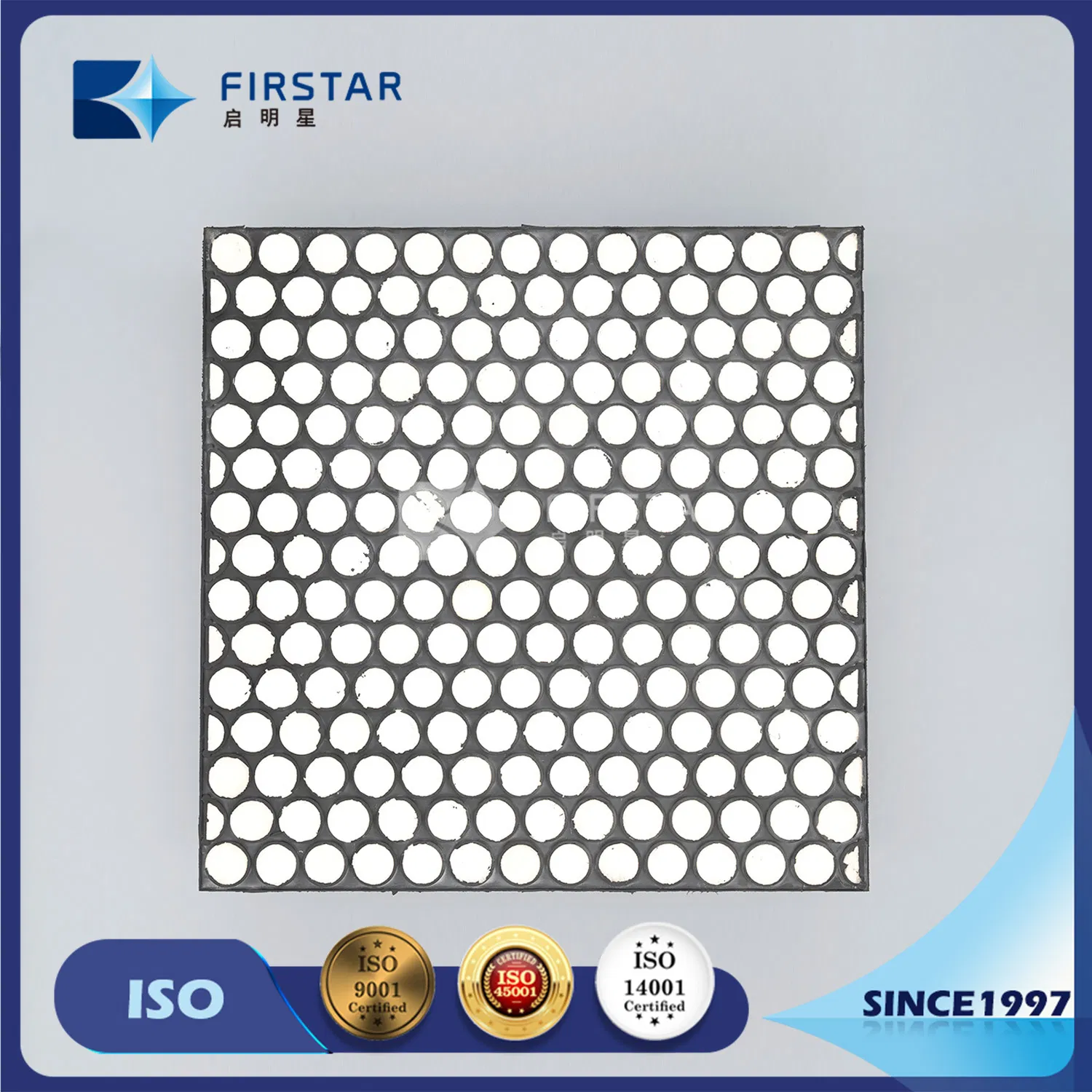

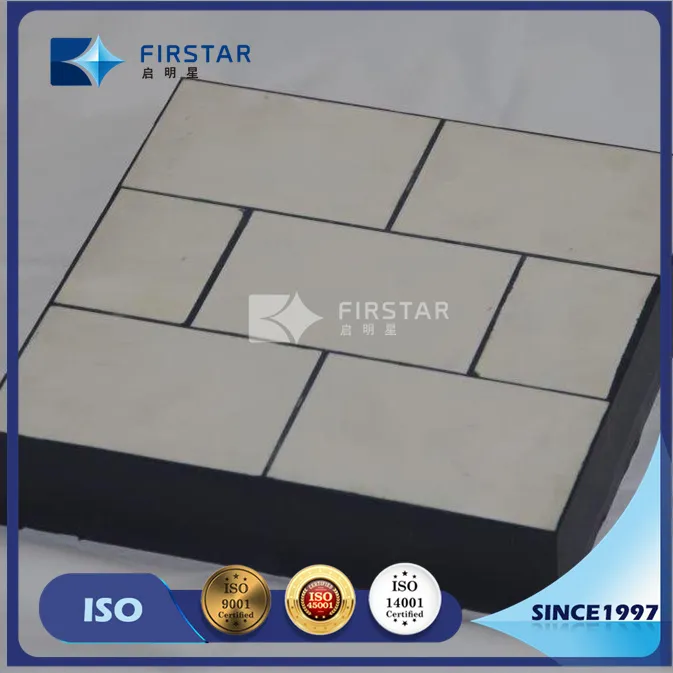

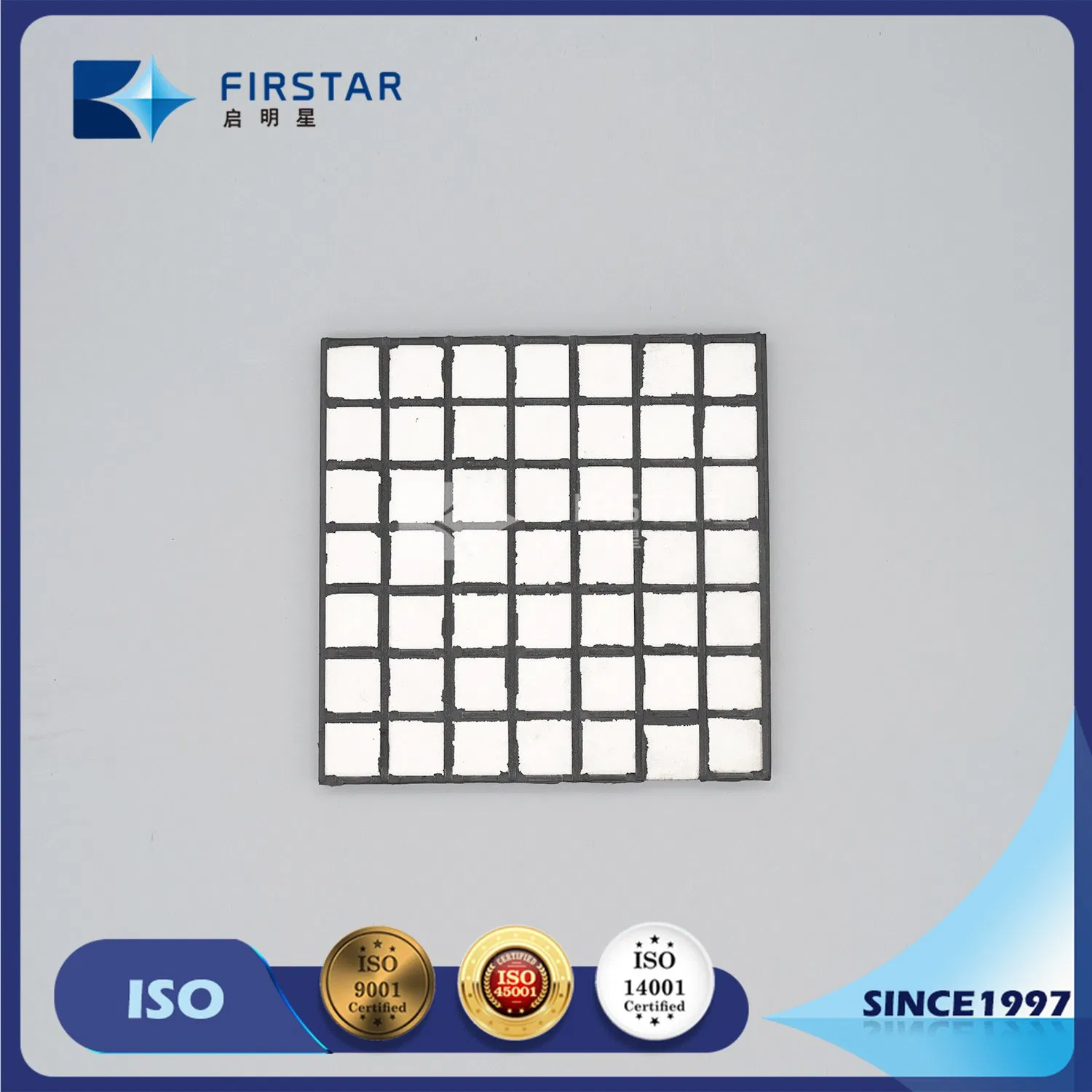

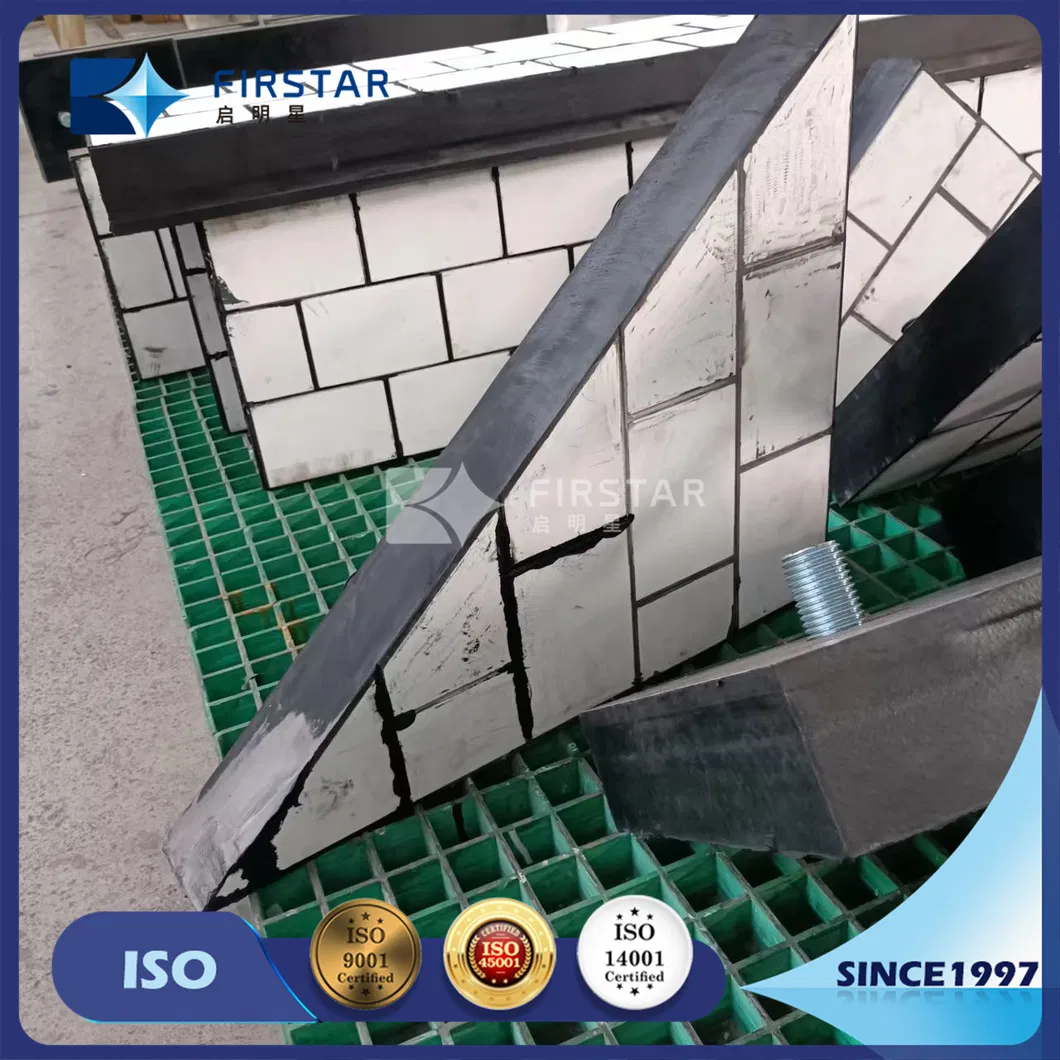

The ceramic wear rubber plates are custom made and are great for protecting your investments. The ceramic aluminum oxide combined with rubber, extends the life of your production lines, reducing maintenance costs. In addition, they can ultimately reduce production downtime through a direct impact on noise reduction.

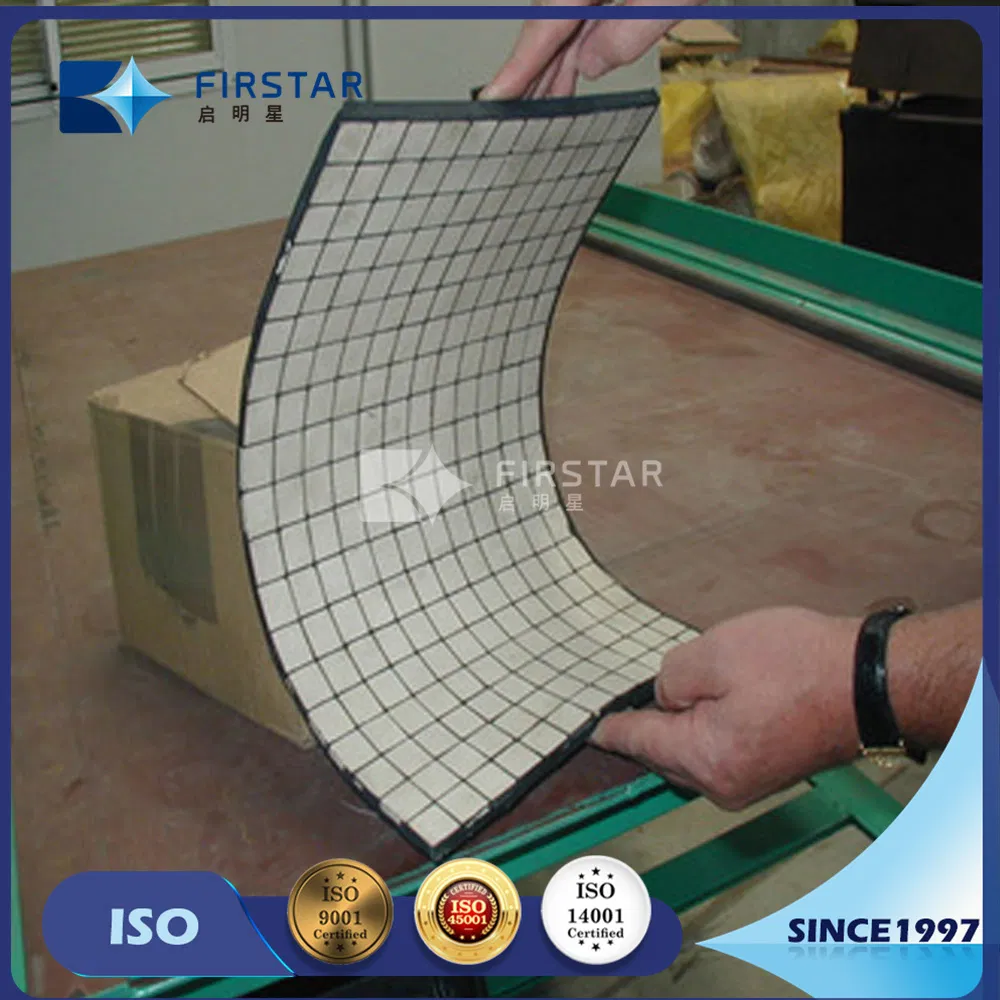

Excellent properties such as: anti-wear as well as higher energy absorption characteristics. With elastic property of the rubber and the exceptional wear and corrosion resistant property of the alumina ceramics, the composite ceramic wear liners can be applied to all the equipments which suffer high impact, abrasion, mechanical attack, chemical attack, corrosion or combination of these.
| Material | Attributes | Properties |
|---|---|---|
| Ceramic Tiles | Material | 92%, 95%, T95%, 99%, ZTA |
| Rubber | Component | Natural, Nitrile-Butadiene, Flame Retardant |
| Density | ~1.4g/cm3 | |
| Shore Hardness | 65±5 | |
| Working Temp | -50ºC - 200ºC | |
| Steel Plate | Material | Q235A |
| Thickness | 3-8mm |
Regular Plate Size:
| Length (mm) | Width (mm) | Ceramic (mm) | Rubber (mm) | Steel (mm) |
| 300 | 300/150/200/400/450 | 25 / 50 | 6 / 7 | 6 |
| 400 | 450 | 25 / 50 | 6 / 7 | 6 |

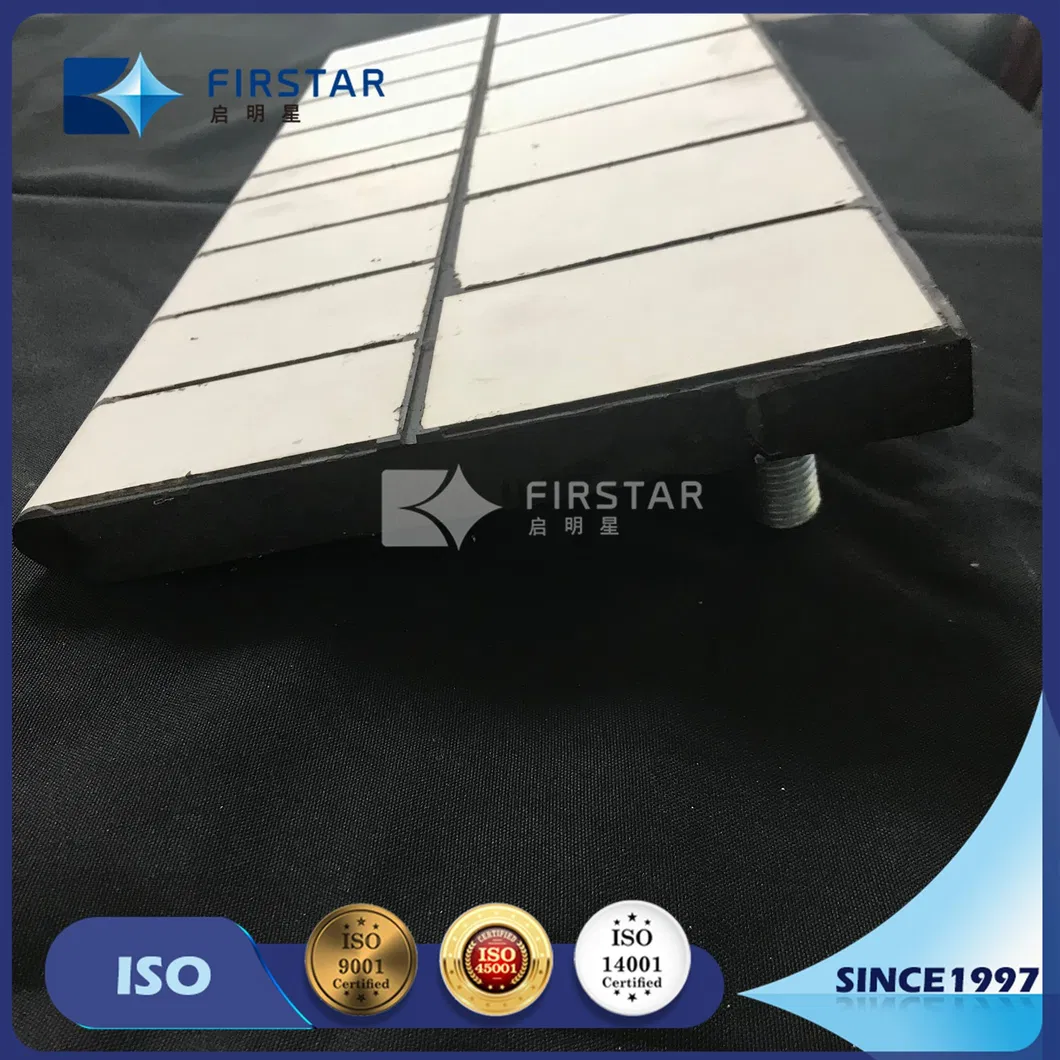

*Also size and shapes can be manufactured as requested.
Providing wear resistant solutions to industries including Mining, Mineral Processing, Power Generation, Iron and Steel, Cement, and Petro-Chemical Refining.
