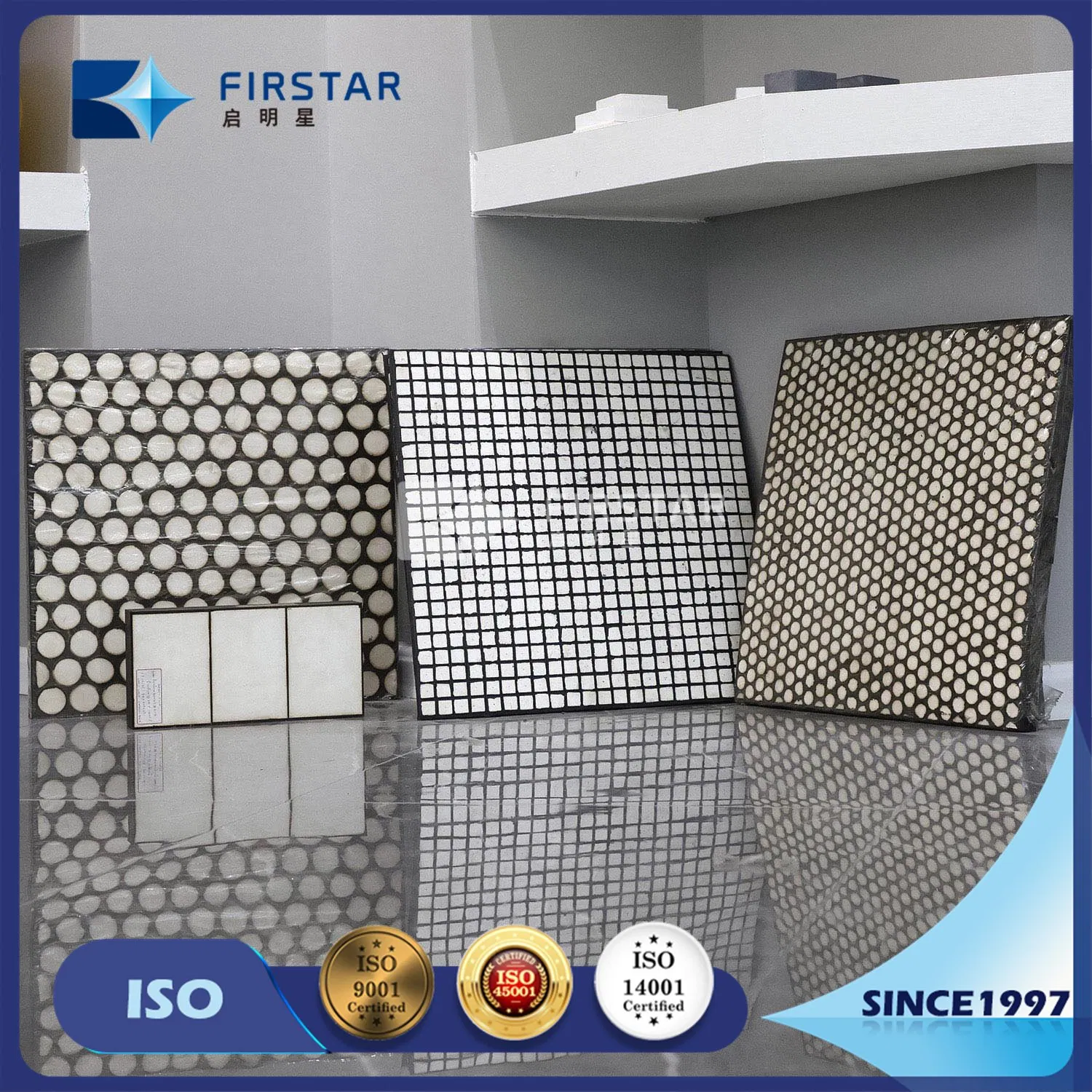

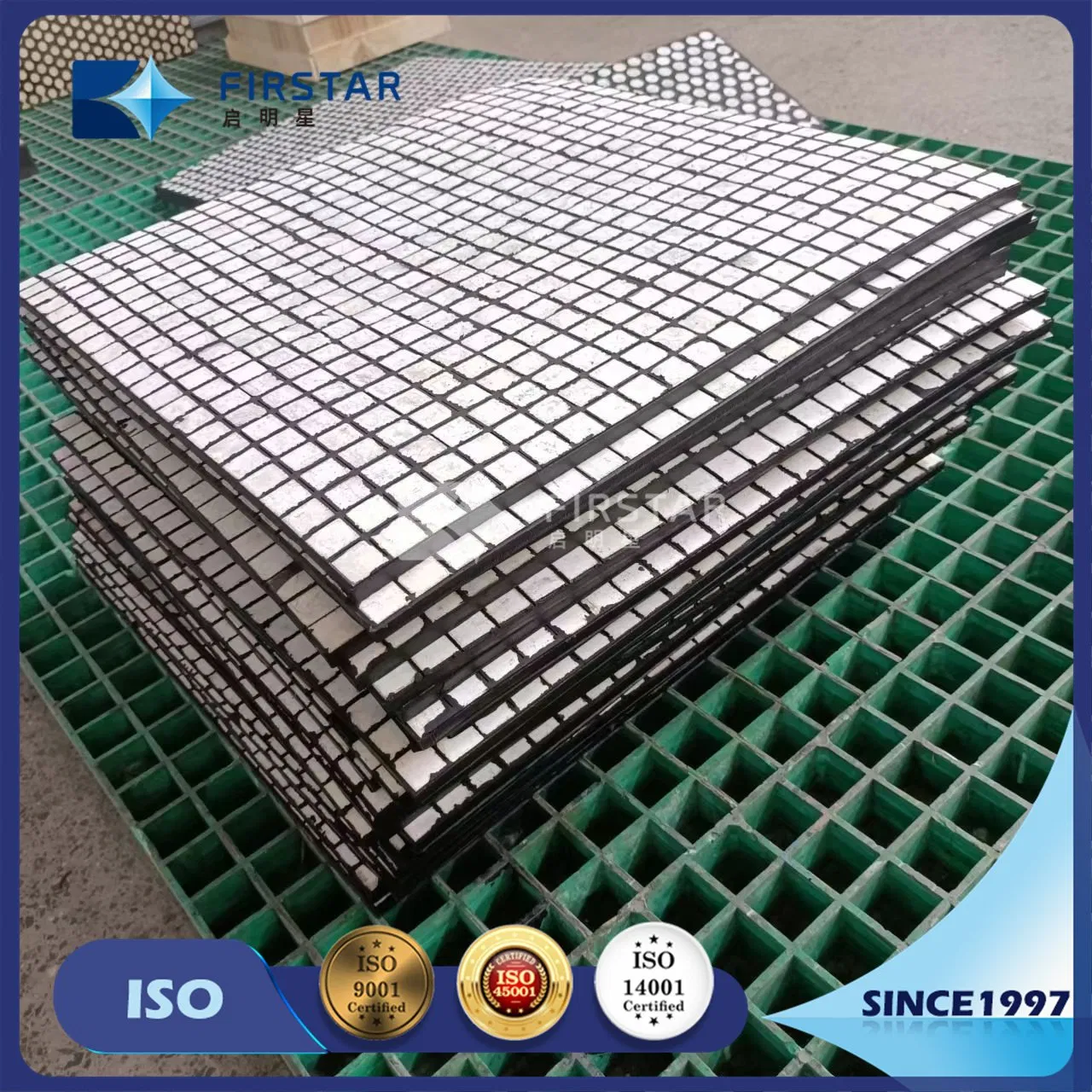

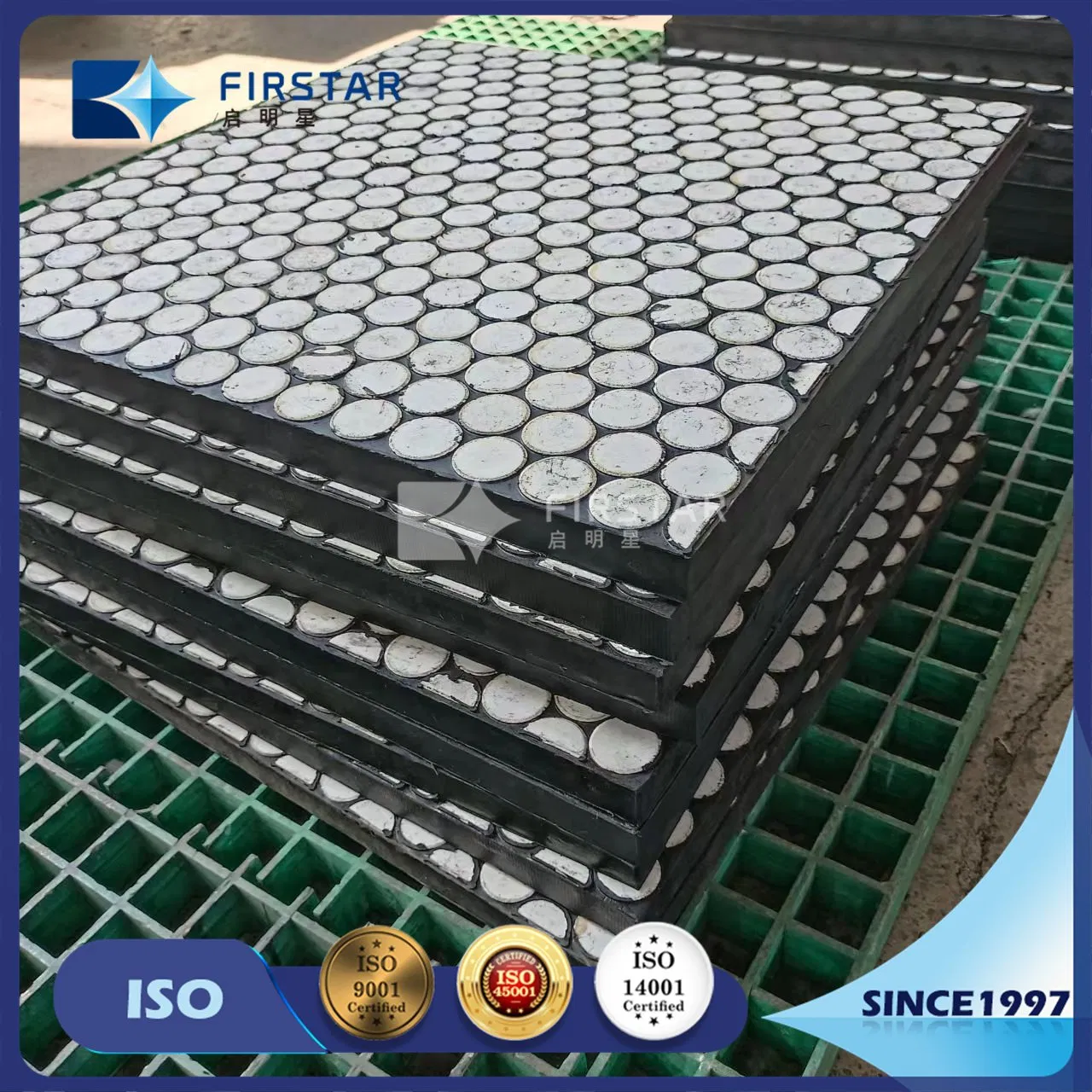

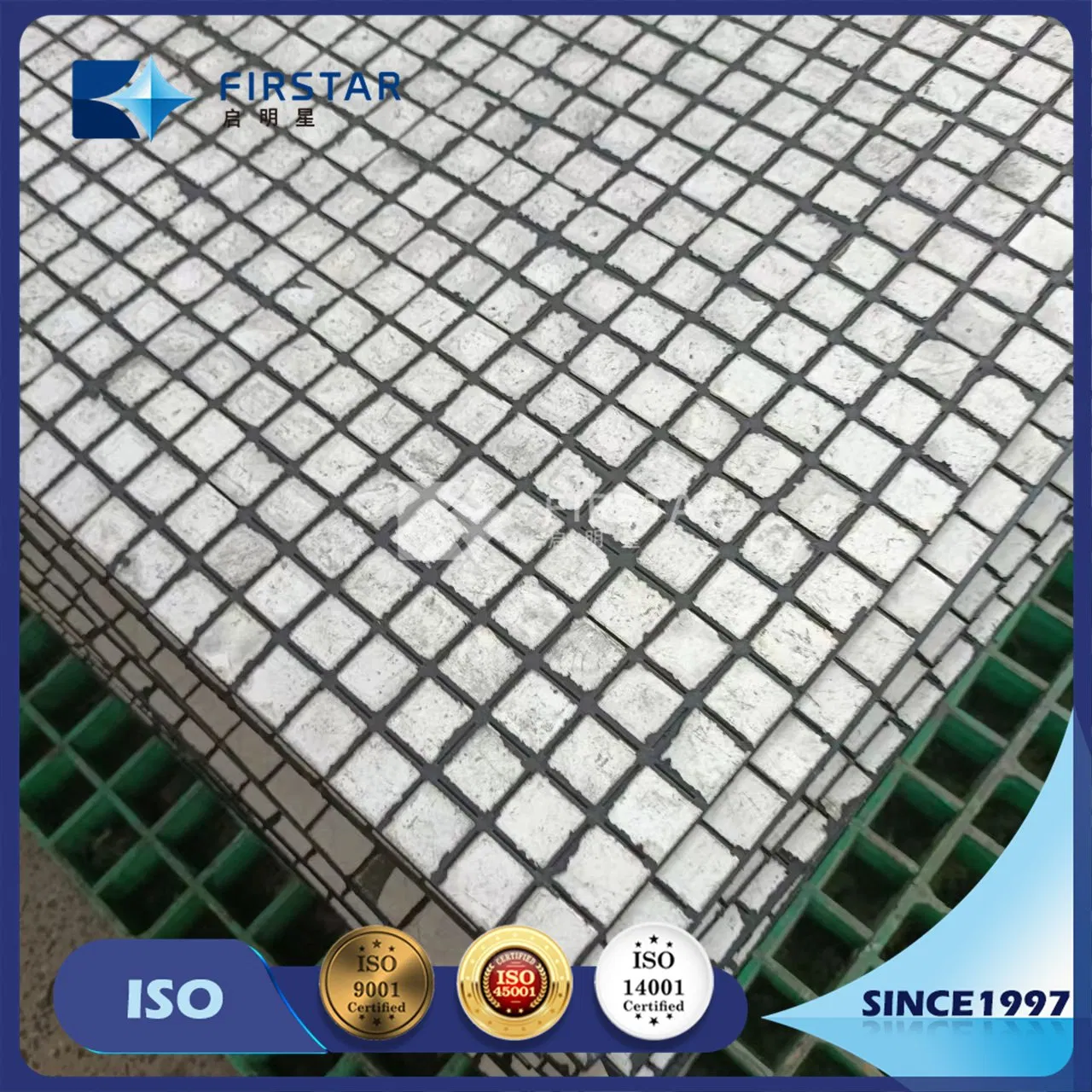

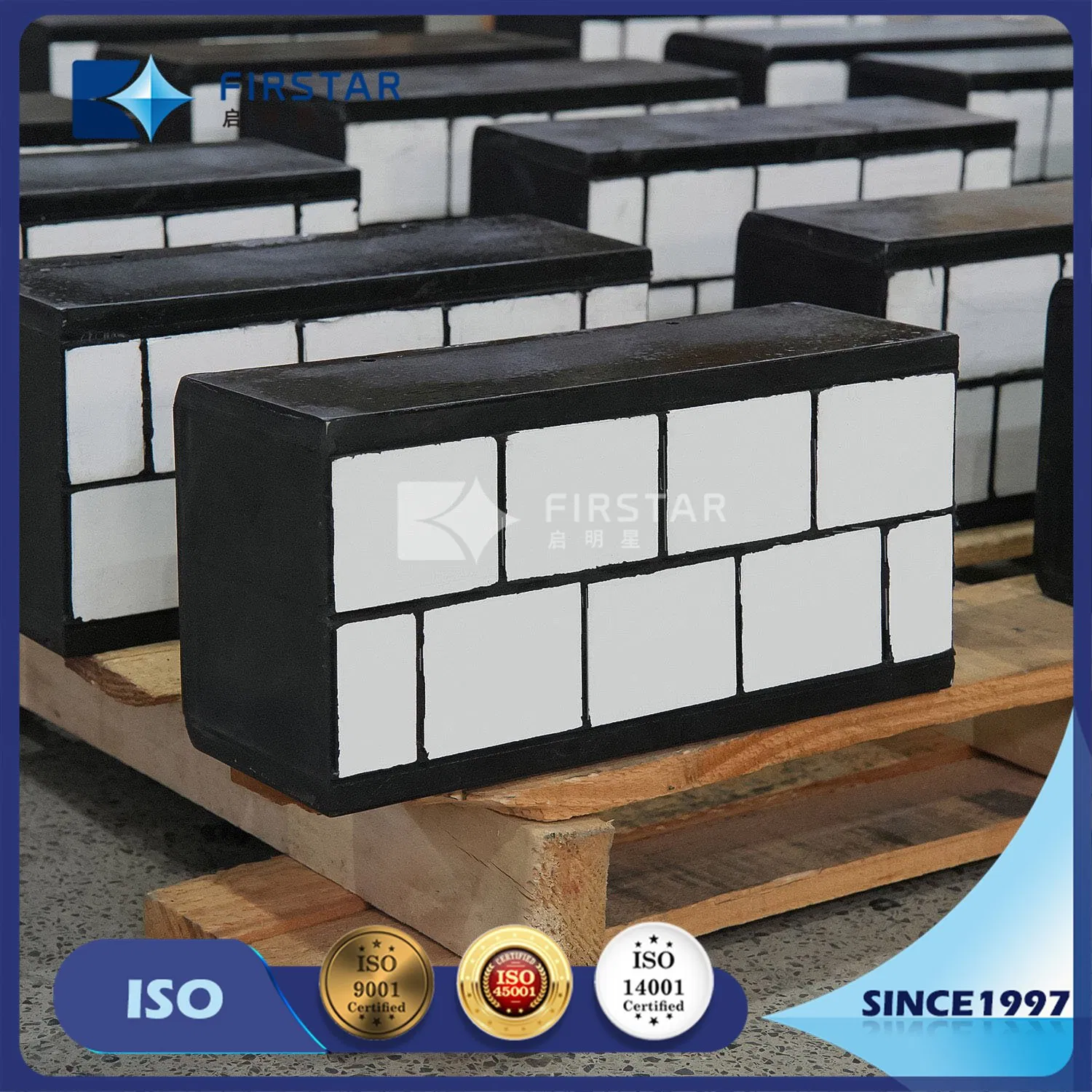

High-Quality Durable Ceramic Panels for Launder and Chute Solutions
High-Quality Durable Ceramic Panels for Launder and Chute Solutions
High-Quality Durable Ceramic Panels for Launder and Chute Solutions
High-Quality Durable Ceramic Panels for Launder and Chute Solutions
High-Quality Durable Ceramic Panels for Launder and Chute Solutions
1 / 5
High-Quality Durable Ceramic Panels for Launder and Chute Solutions
High-Quality Durable Ceramic Panels for Launder and Chute Solutions
High-Quality Durable Ceramic Panels for Launder and Chute Solutions
High-Quality Durable Ceramic Panels for Launder and Chute Solutions
High-Quality Durable Ceramic Panels for Launder and Chute Solutions

High-Quality Durable Ceramic Panels for Launder and Chute Solutions

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
Rubber Backed Ceramic Panel
Material
Alumina Ceramic, Resilient Rubber, Steel
Type
Wear Resistant Ceramic
Density
1.4G/Cm3
Tensile Strength
>14MPa
Shore Hardness
48-65
Adhesive Strength
>3.5 MPa
Production Capacity
17000 Tons Per Year
Specification
500*500*63mm
Product Description

500*500*25mm Composite Rubber Backed Ceramic Lining Panels for Chute and Launder Abrasion Protection

92 Alumina Ceramic Liners Wear Plate Backing Materials Mild Steel Backing Plate
Al2O3:≥92% Density:≥3.6g/cm³ Porosity:<0.25 Compressive strength:≥1050Mpa Rockwell Hardness ≥85.5HRA Rubber: Natural Tensile strength(TSB):≥15Mpa Shore A Hardness: 50-60 Thermal conductivity: 2w/m·k Steel Thickness: 6mm Steel: Q235A or Q235B (C 0.12-0.22%, Mn 0.30-0.67%)

🔹 Product Overview: Ceramic rubber composite pads & plates utilize a rubber vulcanization process to embed wear-resistant ceramic into rubber. This can be bonded to equipment inner surfaces or vulcanized with steel plates and bolts.

🔹 Features: Combines the extreme wear resistance of ceramics with the impact resistance of rubber, suitable for conveying systems under normal temperatures.

Applications
  • Raw material feeding system: belt head hopper, trolley tee bucket.
  • Batching system: mixing silo, primary/secondary mixing cylinders.
  • Sintering material conveying: beneficiation hopper, vibrating screen silo.
  • Dust removal: pipes, elbows, tees, and tail discharge systems.
  • Steel production: Ball mill outlet pipes, separator inner shells, slag flushing pipelines.
Product Pictures

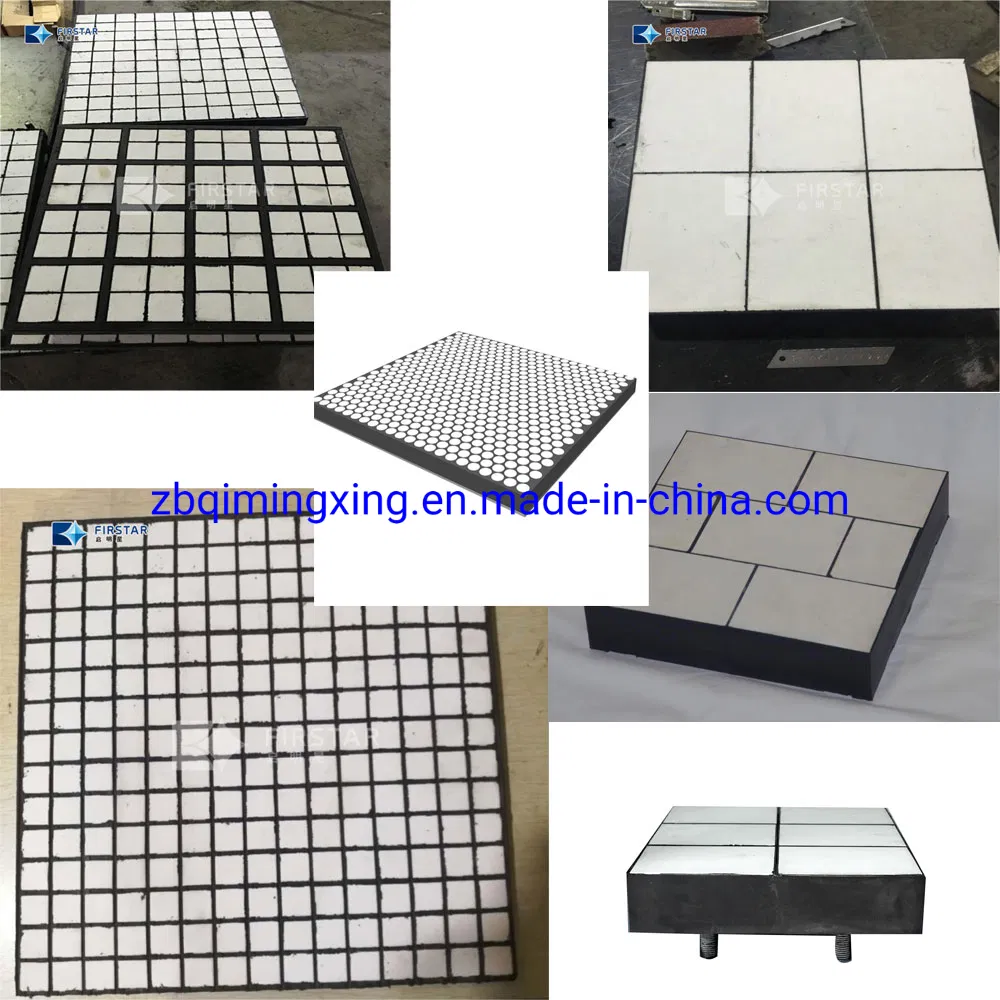

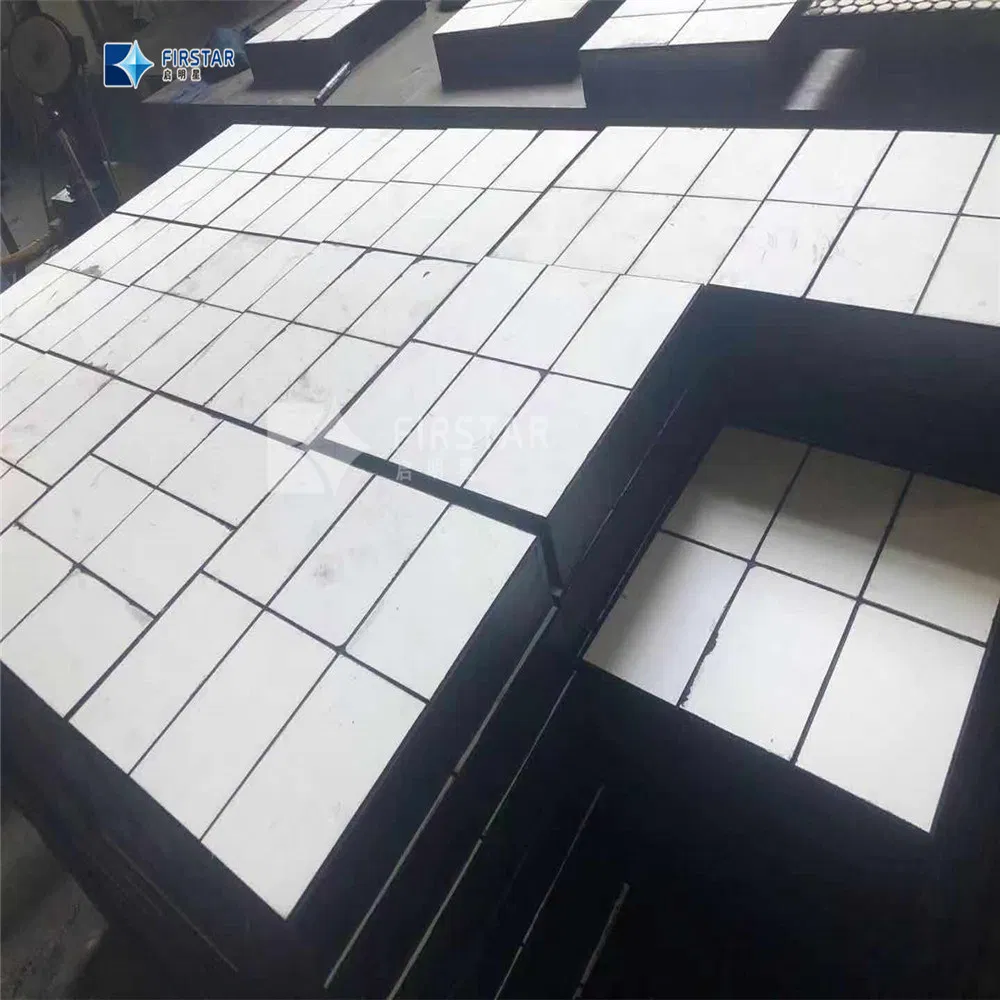

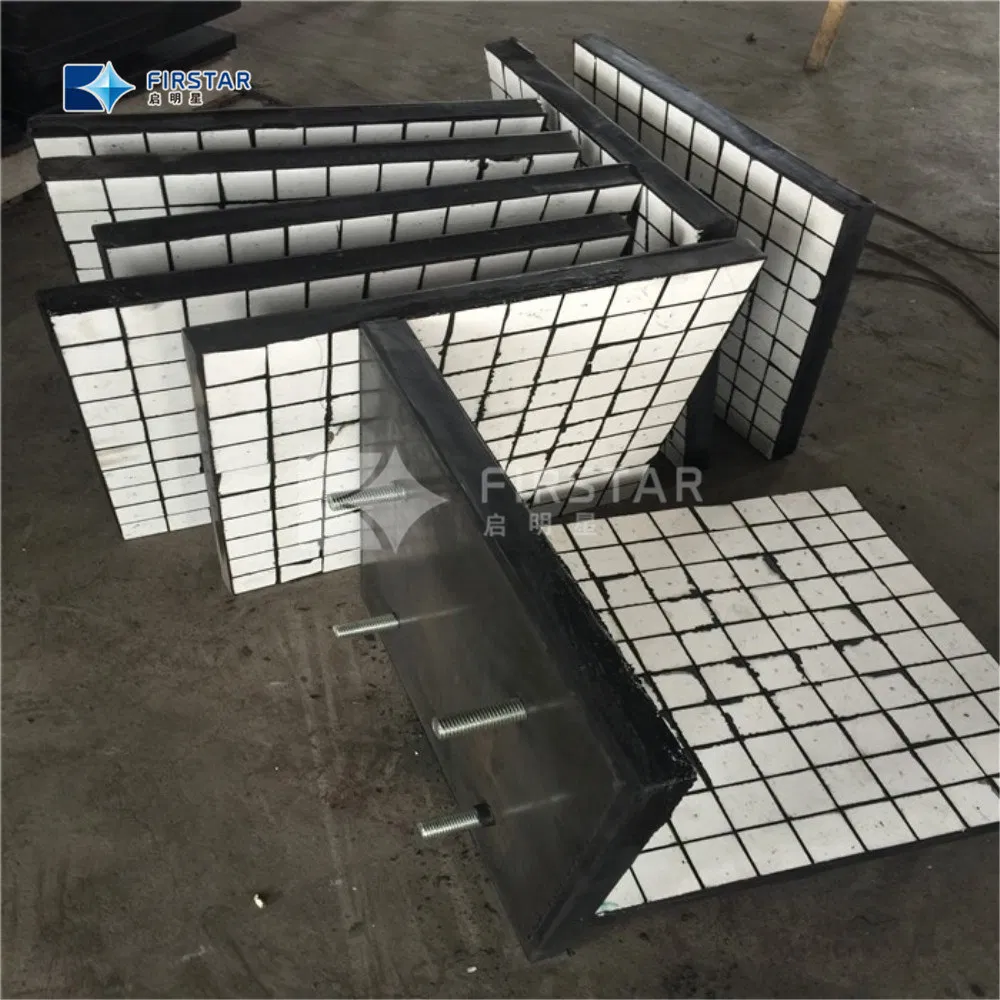

Ceramic Panel 1 Ceramic Panel 2 Ceramic Panel 3
Packaging & Quality
Packaging
  • Established in 1997 with 25 years of experience in wear solutions.
  • ISO9001:2015 certified production facility.
  • Total construction area of 50,000 sqm with three proprietary production lines.

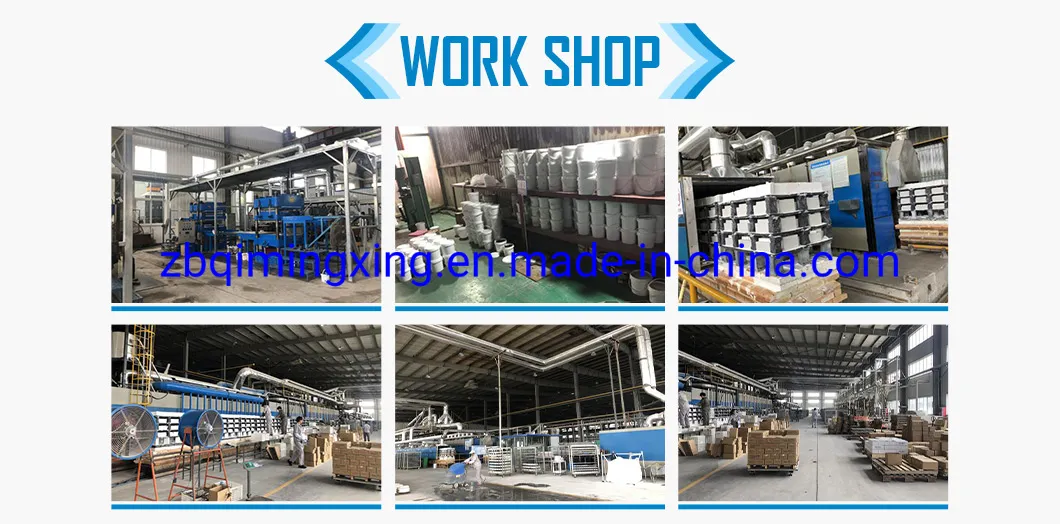

Production Facility 1

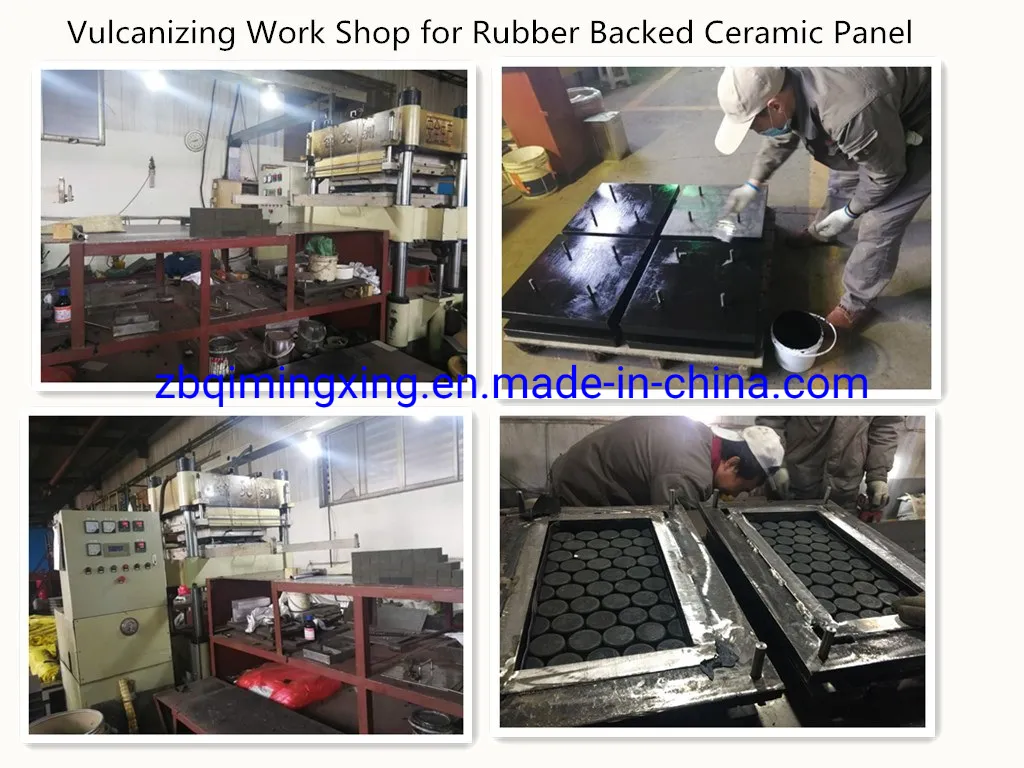

Production Facility 2 Quality Control Manufacturing
Product Category

Specialized production of HC series wear-resistant ceramic liners, alumina balls, zirconium silicate balls, ZTA liners, and various vulcanized ceramic runner sheets.

Category 1 Category 2 Category 3 Category 4 Category 5 Category 6
Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a professional manufacturer with over 25 years of experience in wear solution products.
Q: Can I request samples before a bulk order?
A: Yes, samples are available depending on the size. The sample air shipping fee is typically returned upon placing a bulk order.
Q: What is the typical delivery timeframe?
A: For in-stock items, it takes 1-5 days. For custom or out-of-stock orders, it ranges from 5-30 days depending on the quantity.
Q: What are your standard payment terms?
A: Our standard terms are 30% T/T in advance, with the remaining balance due before shipment.
Q: Do you offer customized ceramic solutions?
A: Yes, we accept customization. Please provide specific drawings, sizes, and compositions for a tailored quote.
Q: What information is needed for a quick quote?
A: Please provide the required quantity, application industry, target price, and specific technical drawings or sizes.
