High-Performance Ceramic Rubber Wear Liners with Steel Plate

Basic Information

Material	Aluminum
Type	Wear Resistant Plate
Component	Steel, Rubber, Ceramic
Ceramic Material	92% 95% Alumina, ZTA, Silicon Carbide
Ceramic Shape	Cylinder, Hexagonal, Square, etc.
Size of Plate	300300, 500500 and Customised
Thickness	5~100mm
Package	Pallet or Wood Carton
Production Capacity	18000 Tons/Year

Product Description

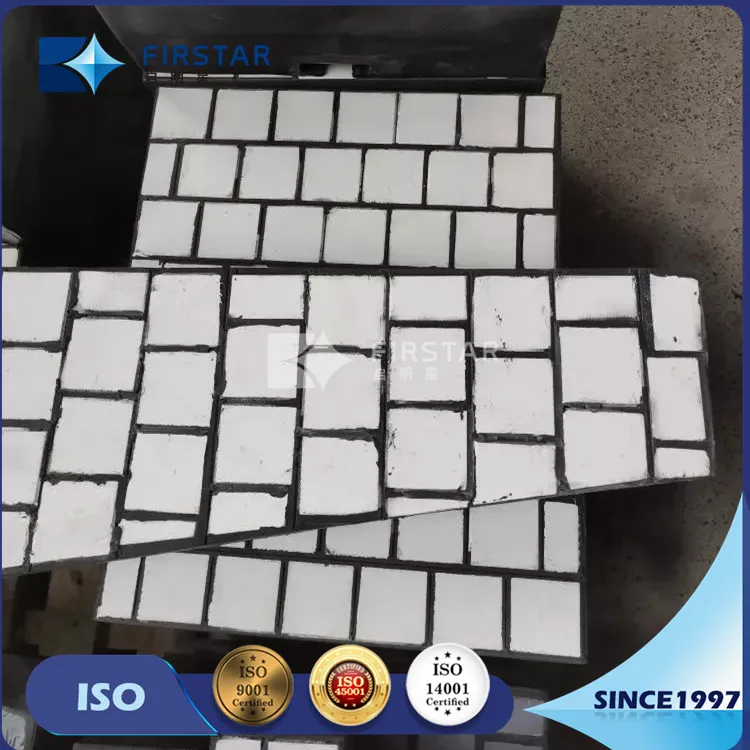

Wear Resistant Ceramic Rubber Composite Wear Liners With Steel Plate and Studs

The rubber backed ceramic panel, also known as a ceramic composite panel or three-in-one ceramic panel, is an ideal solution for components experiencing rigorous wear. Alumina ceramics are the second hardest material after diamonds, making them perfect for high-impact and abrasion-resistant surfaces.

Detailed Application: Suitable for bulk material conveying systems such as coal hoppers, chutes, mixers, feeders, bins, and bunkers. Major industries include mining, coal-fired power plants, cement plants, and blast furnace plants.

Key Advantages:

Excellent absorption of high impact and sliding abrasion.
Significant reduction in noise levels within the plant.
Engineered to resist specific sizes and types of impact.

Easy Installation

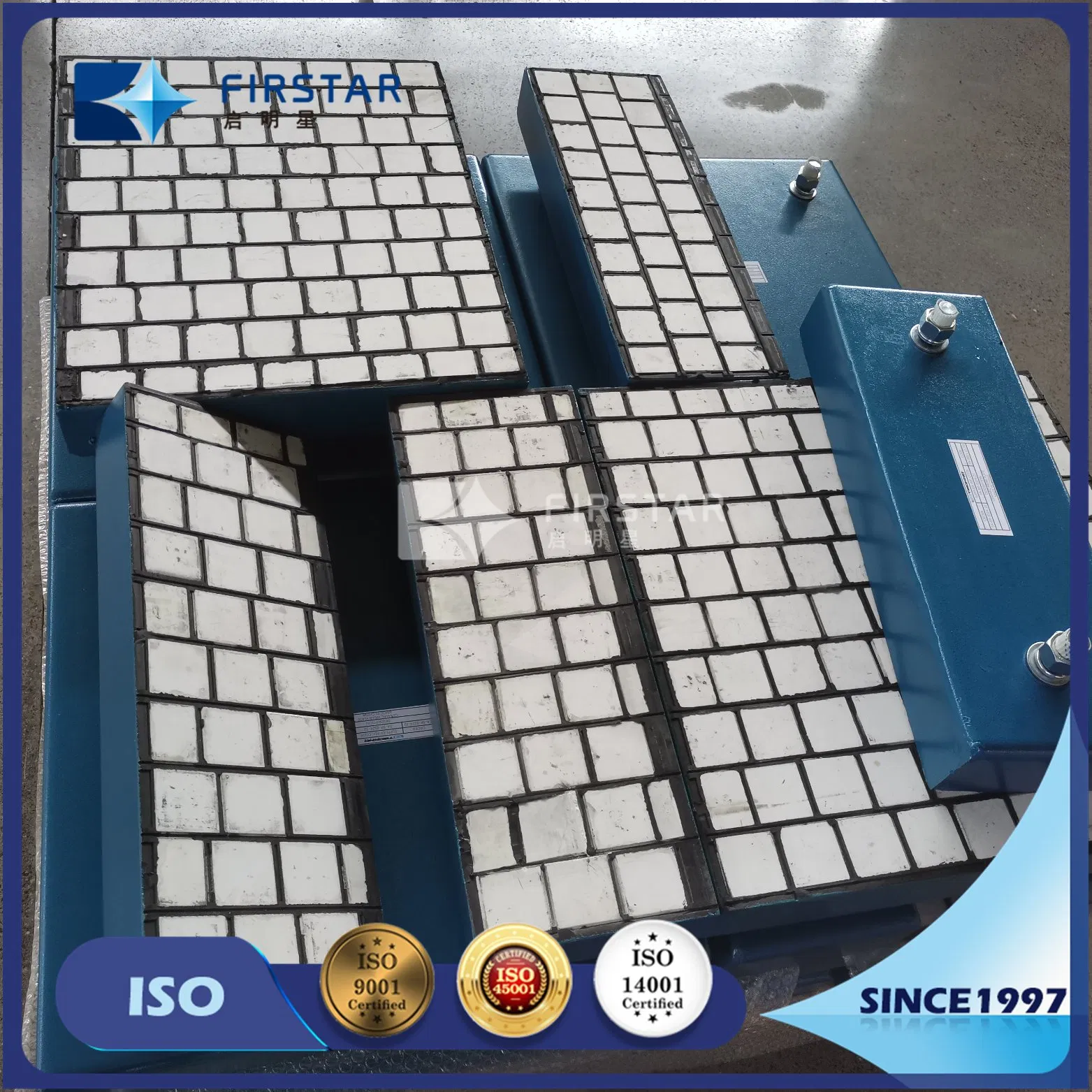

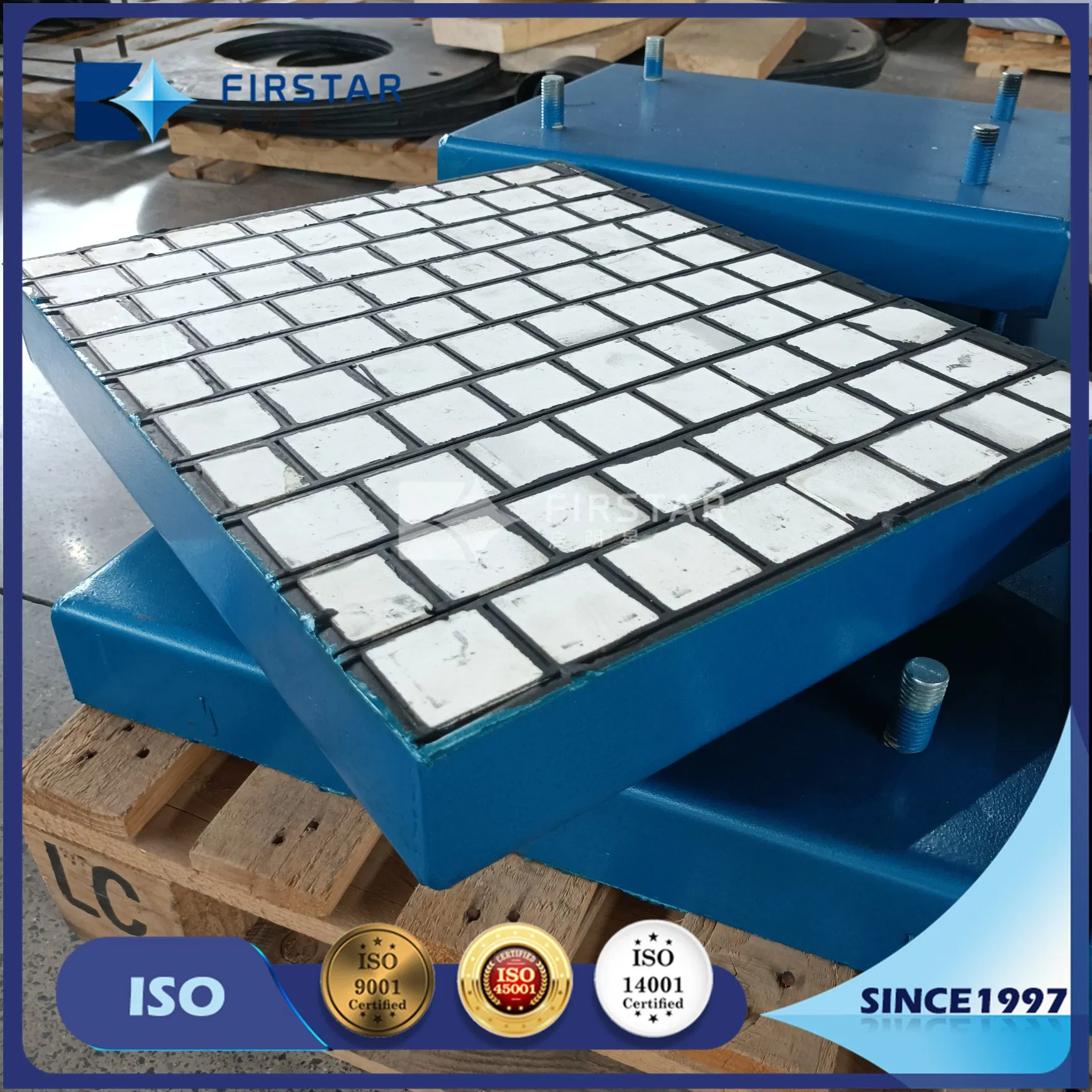

Rubber Backed Ceramic Mats can be installed by bonding directly to clean steelwork using metal primers and bonding agents. Alternatively, steel-backed panels can be welded via stubs and secured with bolts and nuts for robust attachment.

Product Parameters

Material Type	Attributes	Properties
Ceramic Tiles	Purity	92%, 95%, T95%, ZTA
Rubber	Density	~1.4g/cm³
Rubber	Tensile Strength	≥15Mpa
Rubber	Shore Hardness	45-65
Steel Plate	Material	Q235A
Steel Plate	Thickness	5-6mm

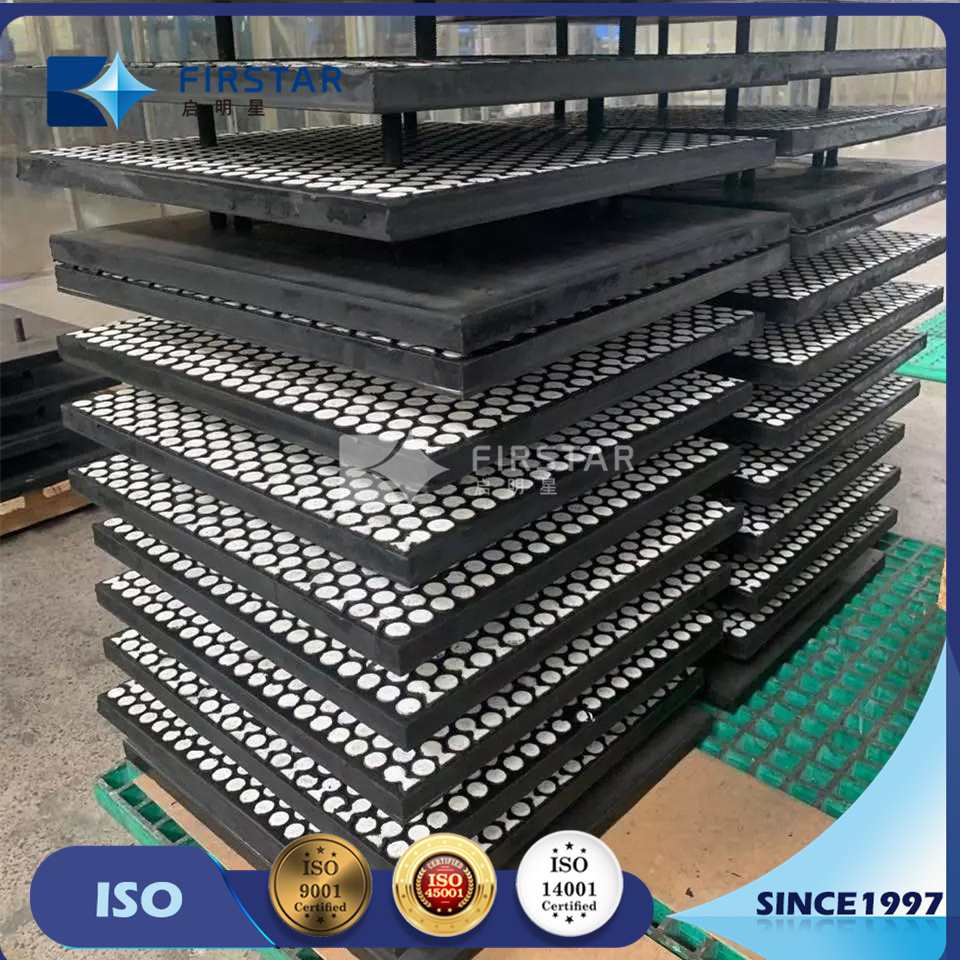

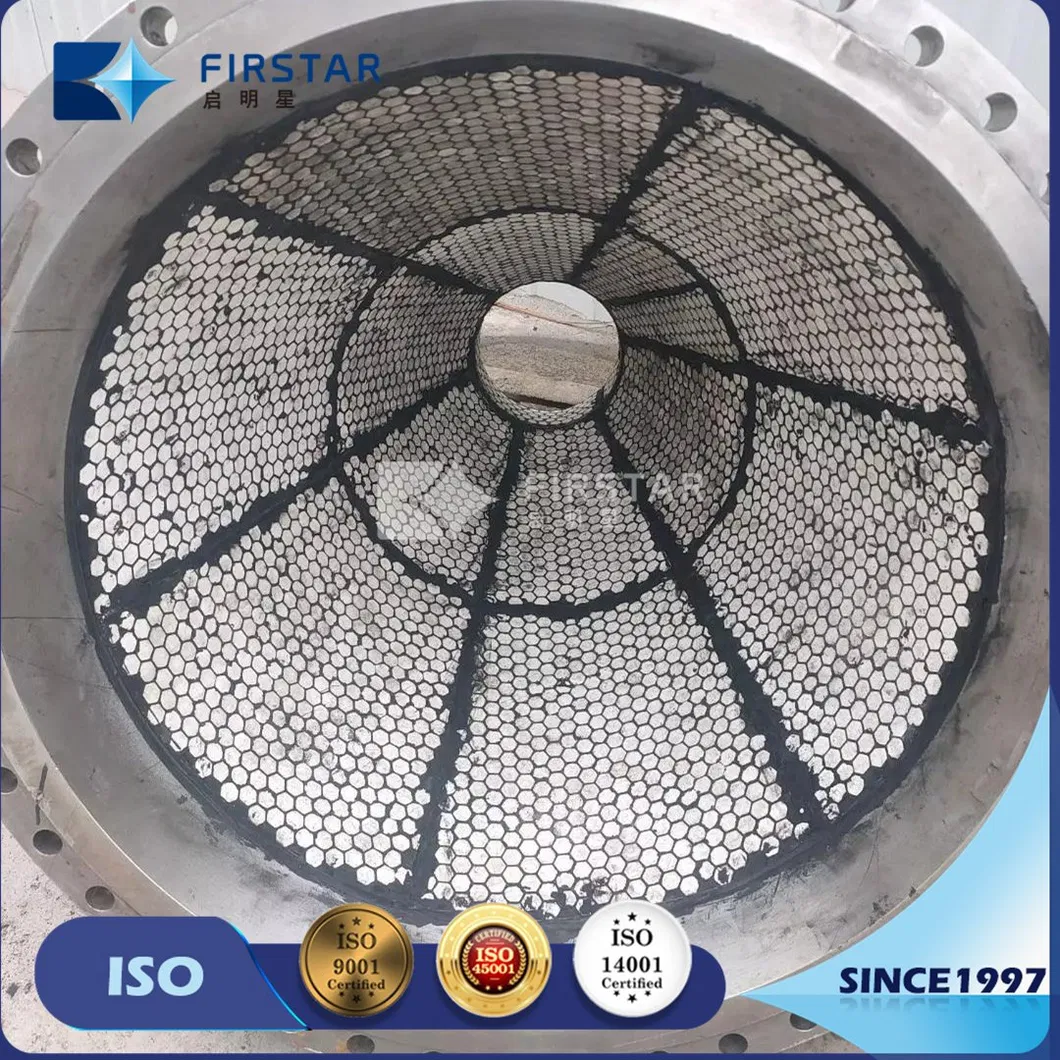

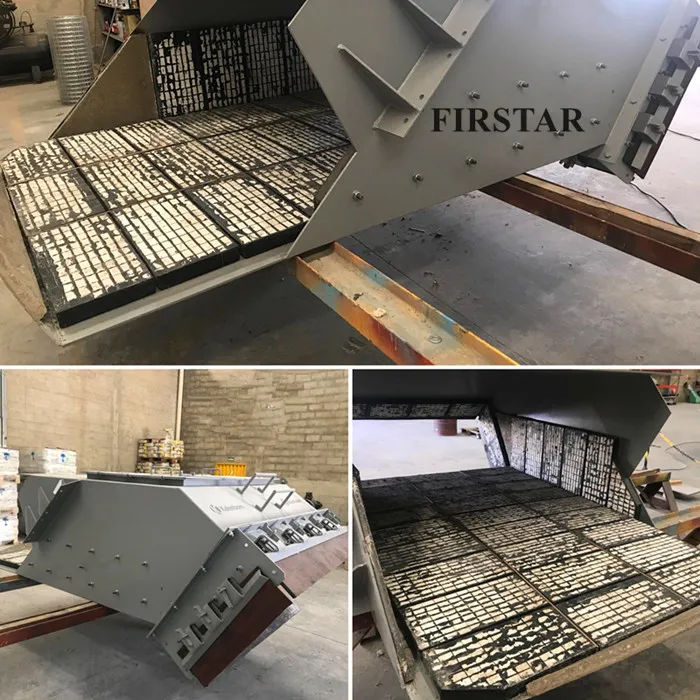

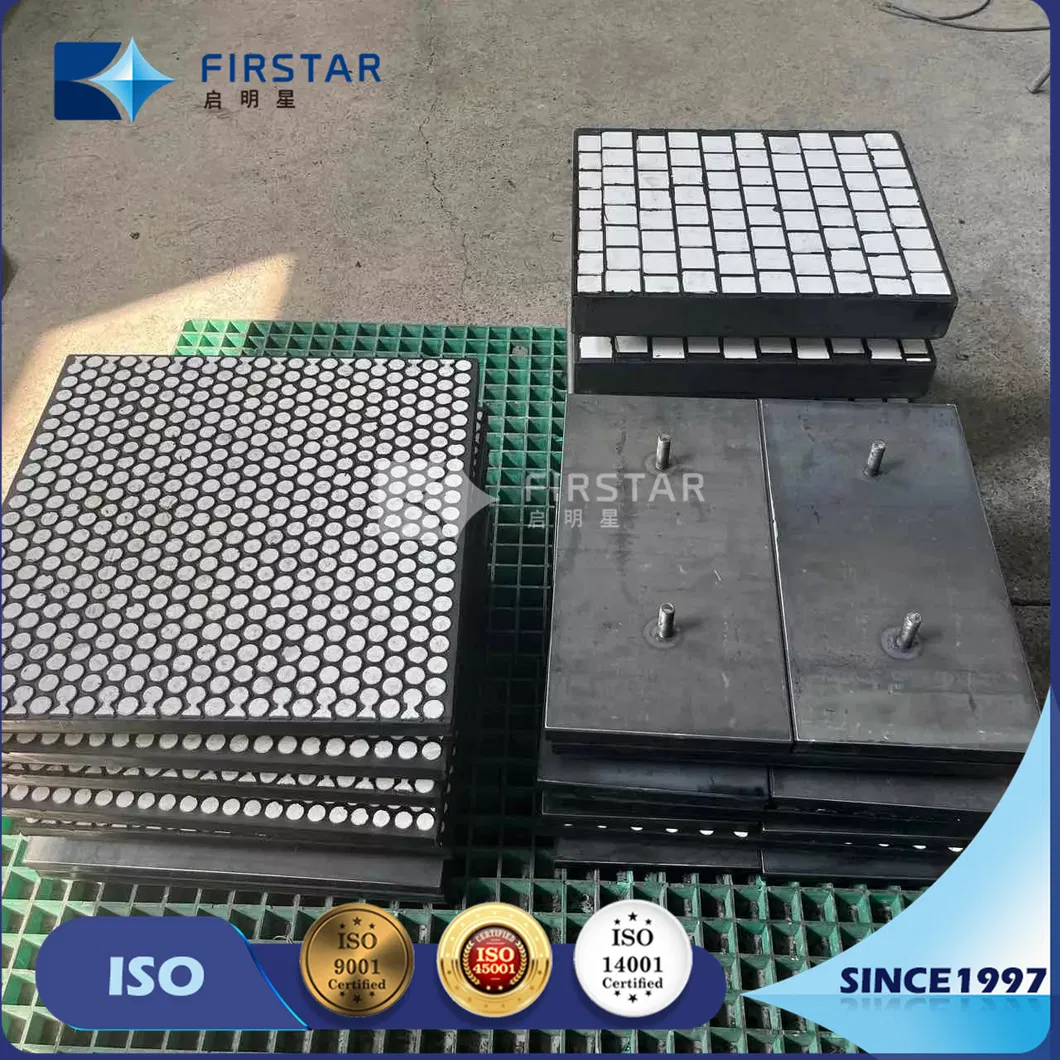

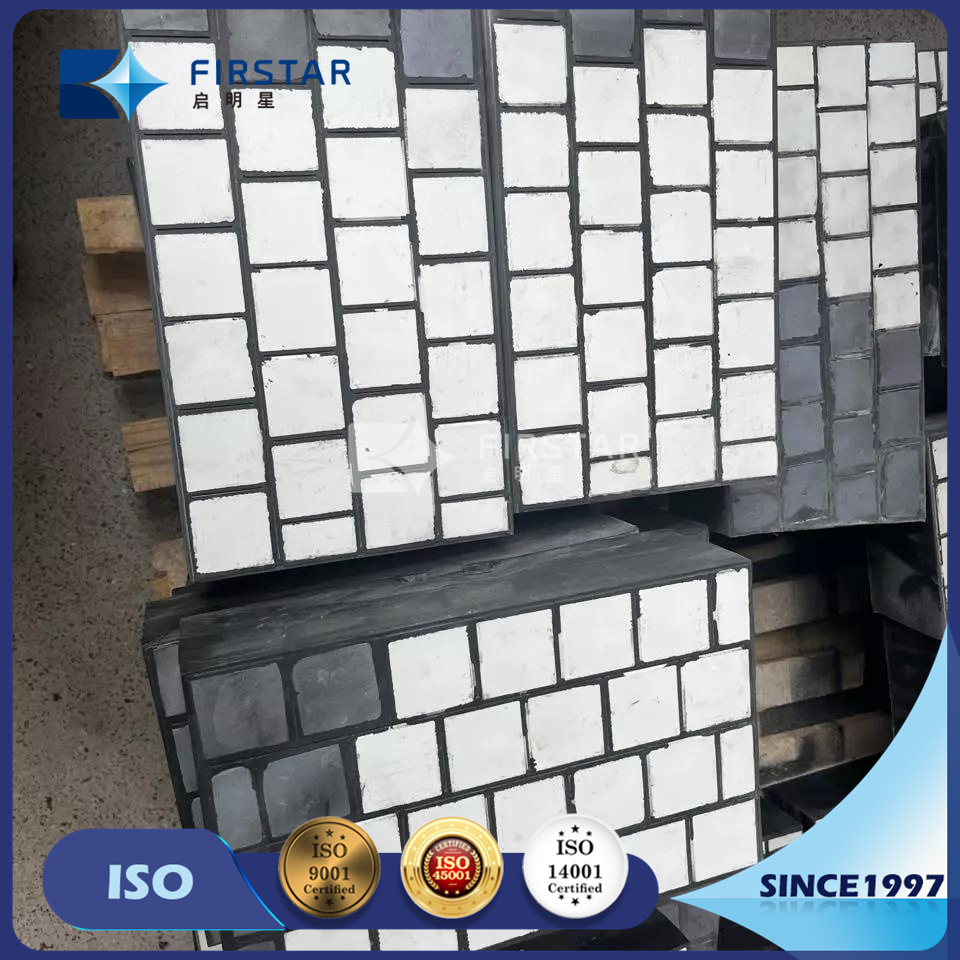

Detailed Photos

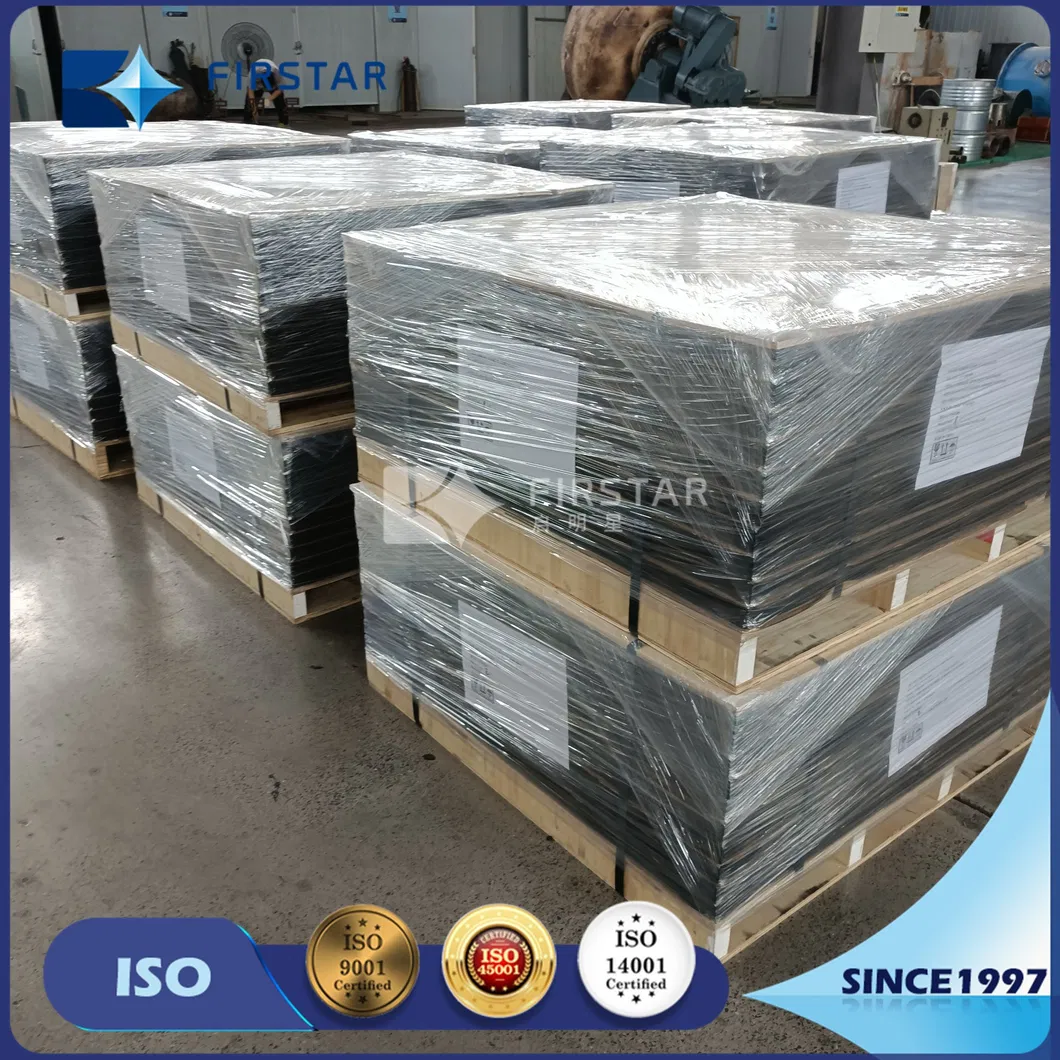

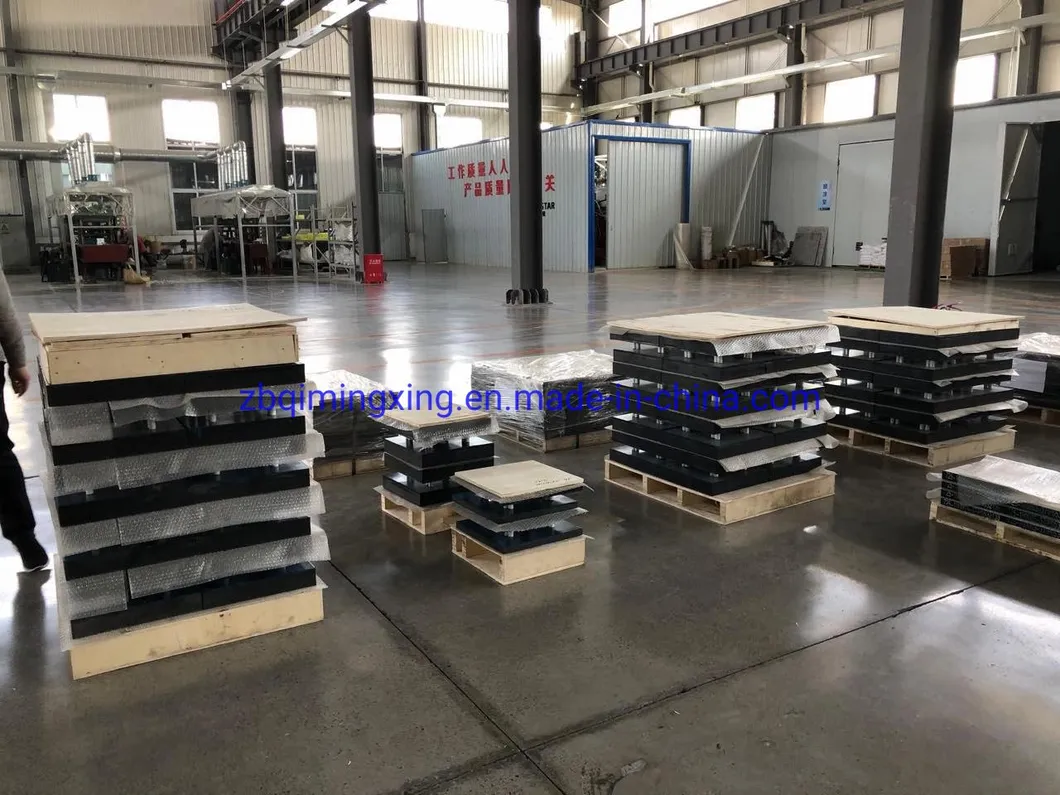

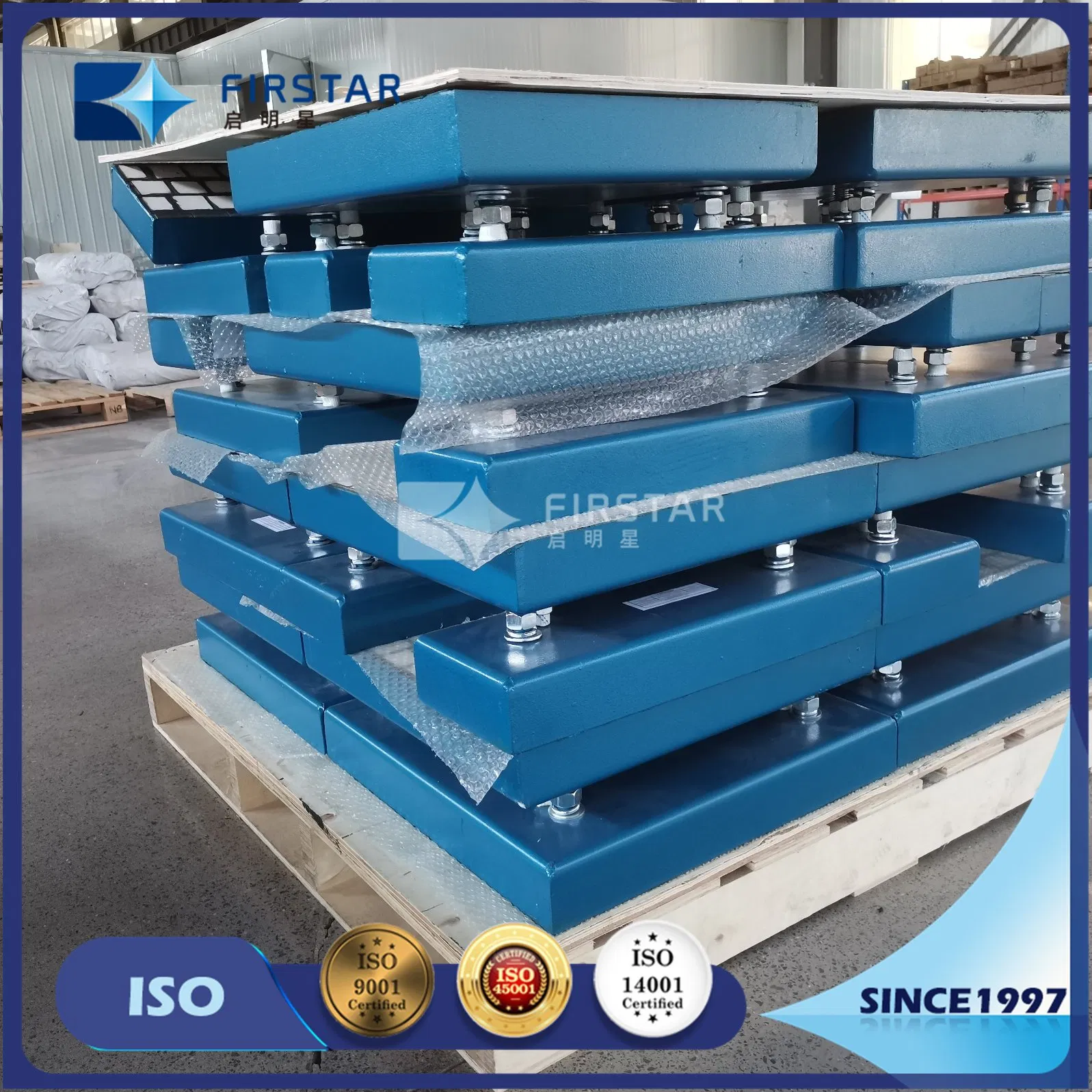

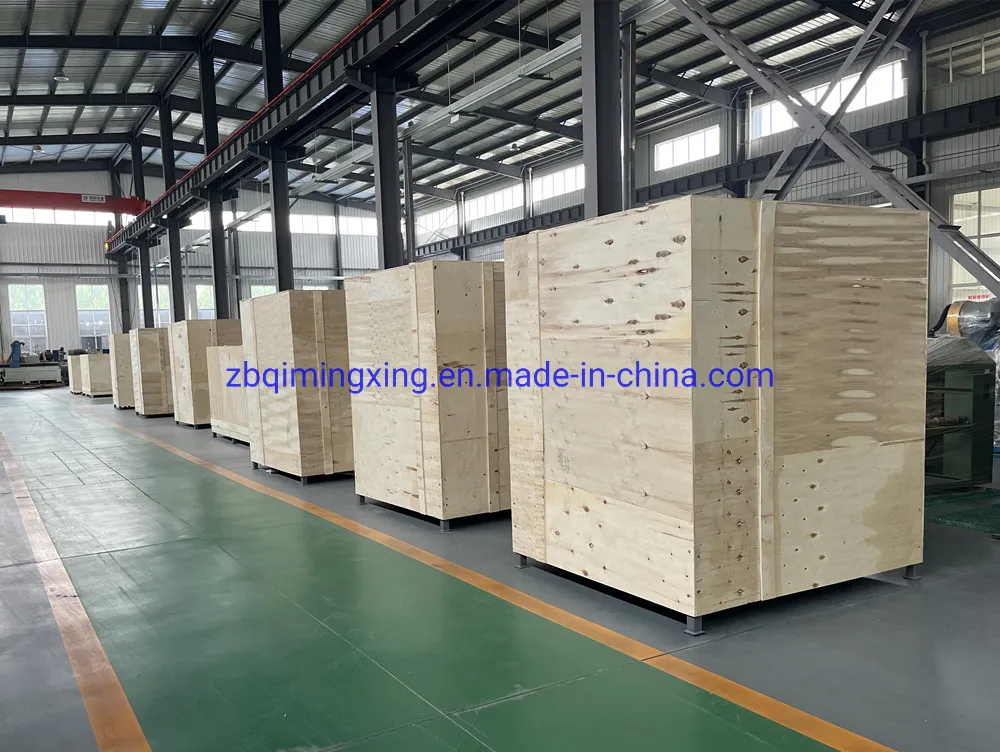

Packaging & Delivery

1. Packaged with shrinking film and pallets, or customized carton boxes for export.
2. Packaging can be fully customized according to specific customer requirements.

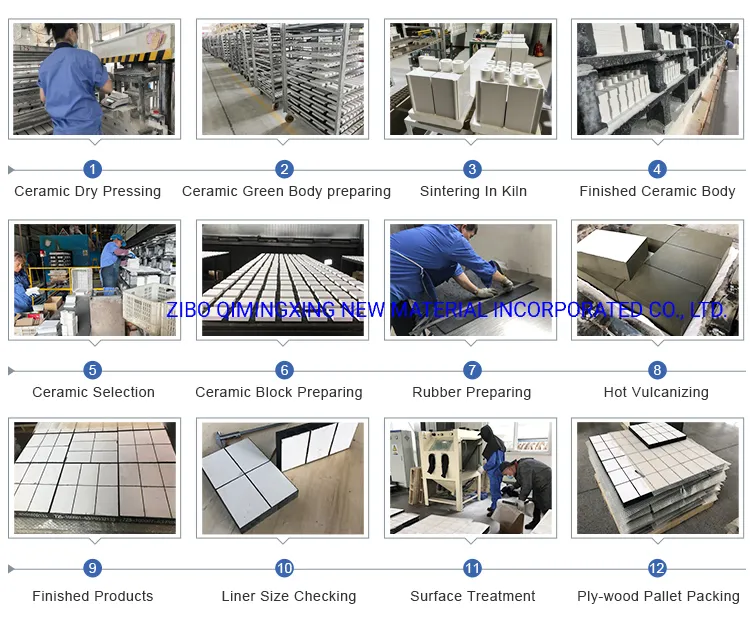

Production Process

Frequently Asked Questions

Are you a direct manufacturer?

Yes, we are a group company established in 1997 with three factories manufacturing alumina powder, grinding media, and wear-resistant liners, including our own vulcanizing plant.

Can you provide samples for quality testing?

Free samples in small quantities can be provided for quality checking. Express fees can often be deducted from bulk orders.

What is the typical delivery time?

Most products are customized. Generally, it takes 7 to 30 days depending on the order quantity and application conditions.

What are your main export markets?

We export globally to markets including Australia, Russia, Ukraine, Mongolia, Southeast Asia, Chile, Peru, and South Africa.

Do you accept small or bulk orders?

We accept both. With a production capacity of 18,000 tons per year, we have the capability to handle large-scale bulk orders while maintaining flexibility for smaller needs.

What other products do you manufacture?

In addition to composite panels, we produce plain ceramic liners, weldable liners, curved liners, various grinding media (ZTA, Zirconia), and alumina powders.
