Industrial ceramics are widely utilized across power, coal, metallurgy, and chemical industries to combat abrasive materials and corrosive media. These high-performance ceramics serve as ideal wear-resistant and corrosion-resistant linings for pipelines transporting sand, coal, ash, and aluminum liquid.

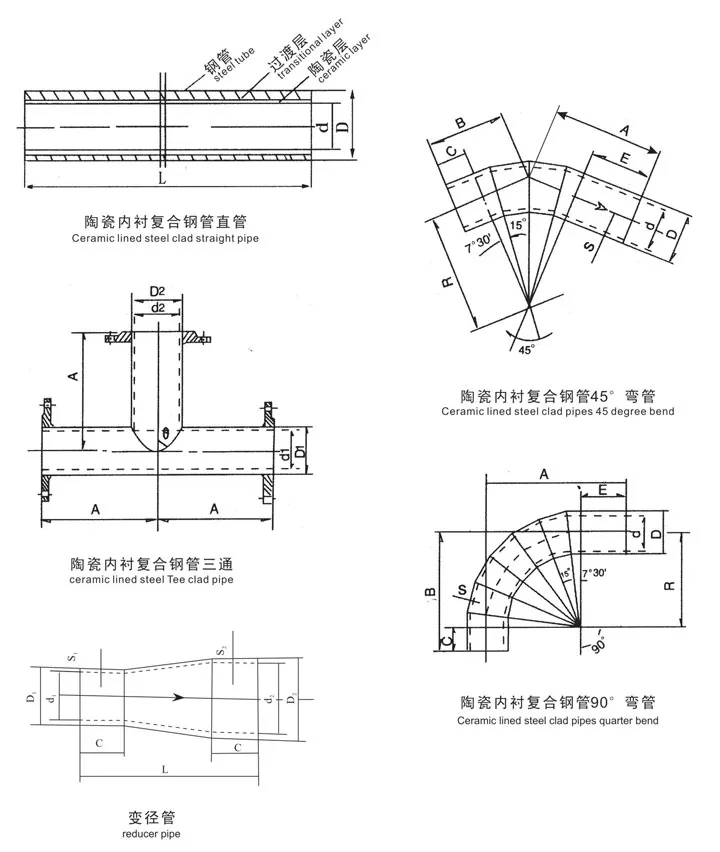

| Product Type | ID (mm) | OD (mm) | Thickness (mm) | Length (mm) | R (mm) | Degree |
|---|---|---|---|---|---|---|
| Straight Tube | 76 | 106 | 15 | 150-250 | / | / |
| Straight Tube | 100 | 140 | 20 | 305 | / | / |
| Straight Tube | 150 | 185 | 17.5 | 150-250 | / | / |
| Straight Tube | 200 | 240 | 20 | 305 | / | / |
| Bend Pipe | 76 | 106 | 15 | / | 400 | 7.5 |
| Bend Pipe | 150 | 185 | 17.5 | / | 1500 | 3 |
| Note: Custom sizes available from 10mm to 500mm ID. | ||||||
| Alumina Content (%) | ≥92% | ≥95% | ≥97% | ≥99% |
|---|---|---|---|---|
| Fe2O3 (%) | ≤0.2 | ≤0.15 | ≤0.15 | ≤0.1 |
| Hardness (Mohs) | ≥8 | ≥9 | ≥9 | ≥9 |
| Porosity (%) | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.01 |
| Density (g/cm³) | ≥3.60 | ≥3.65 | ≥3.75 | ≥3.90 |
| Max ID (mm) | ≤620 | ≤620 | ≤620 | ≤620 |
Transportation Precautions: Ceramic composite pipes possess high hardness but must be handled gently. Avoid serious collisions, direct impact from metal instruments, or damage to the end-surface ceramic layers.
Standard packaging consists of reinforced wooden boxes. For international shipments to Europe, all wooden materials are fumigated. Specialized PE film wrapping is available for moisture protection or per specific customer requests.
