| Model NO. | Rubber Backed Ceramic Wear Liner |
| Material | Silicon Carbide Ceramic / 92% Alumina |
| Installation | Adhesive Bonding / Bolt Customized |
| Ceramic Thickness | 3-75mm |
| Steel Plate | Q235A (3-10mm Thickness) |
| Rubber Material | Natural Rubber (Impact Resistant) |

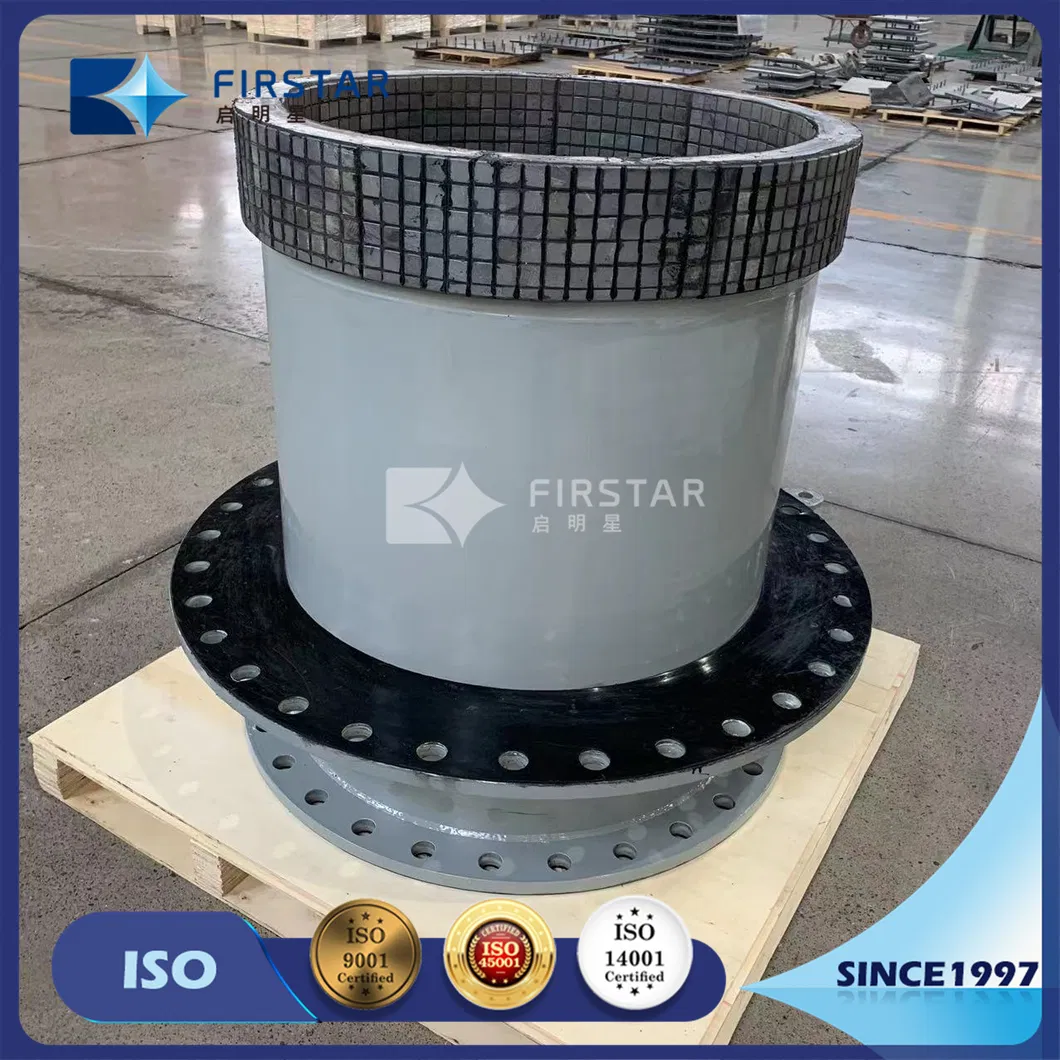

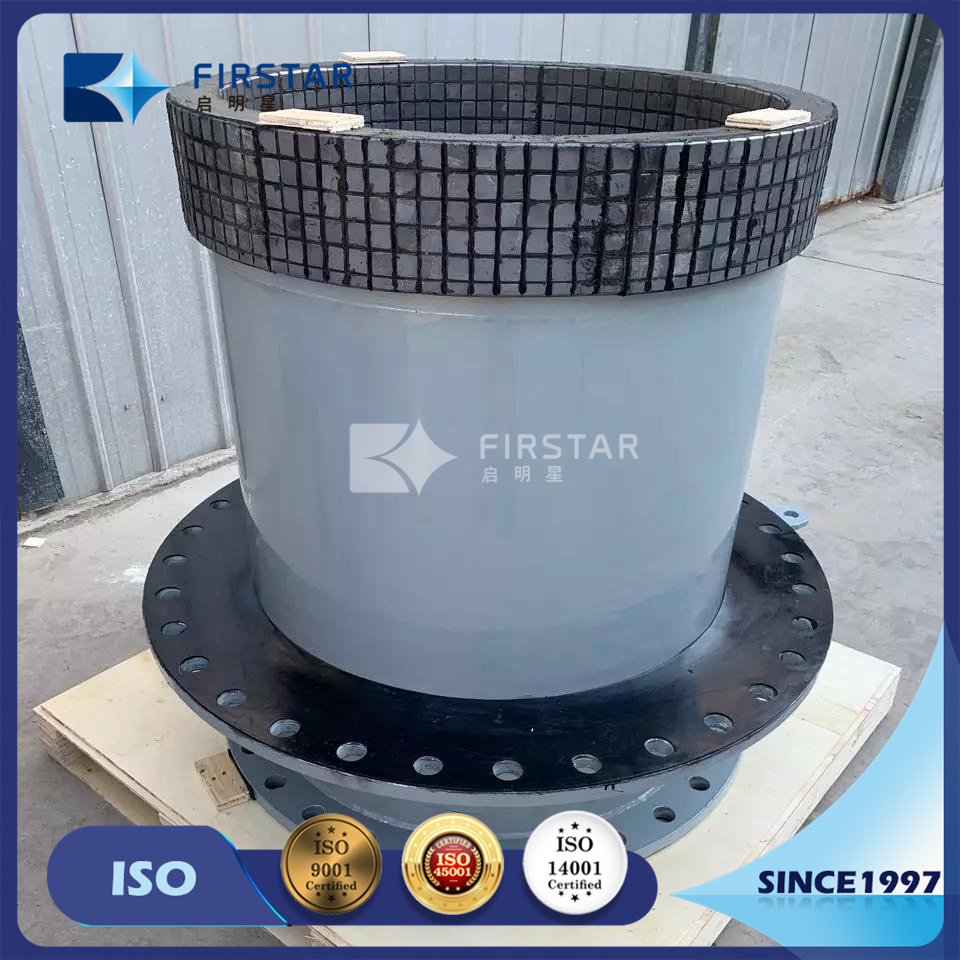

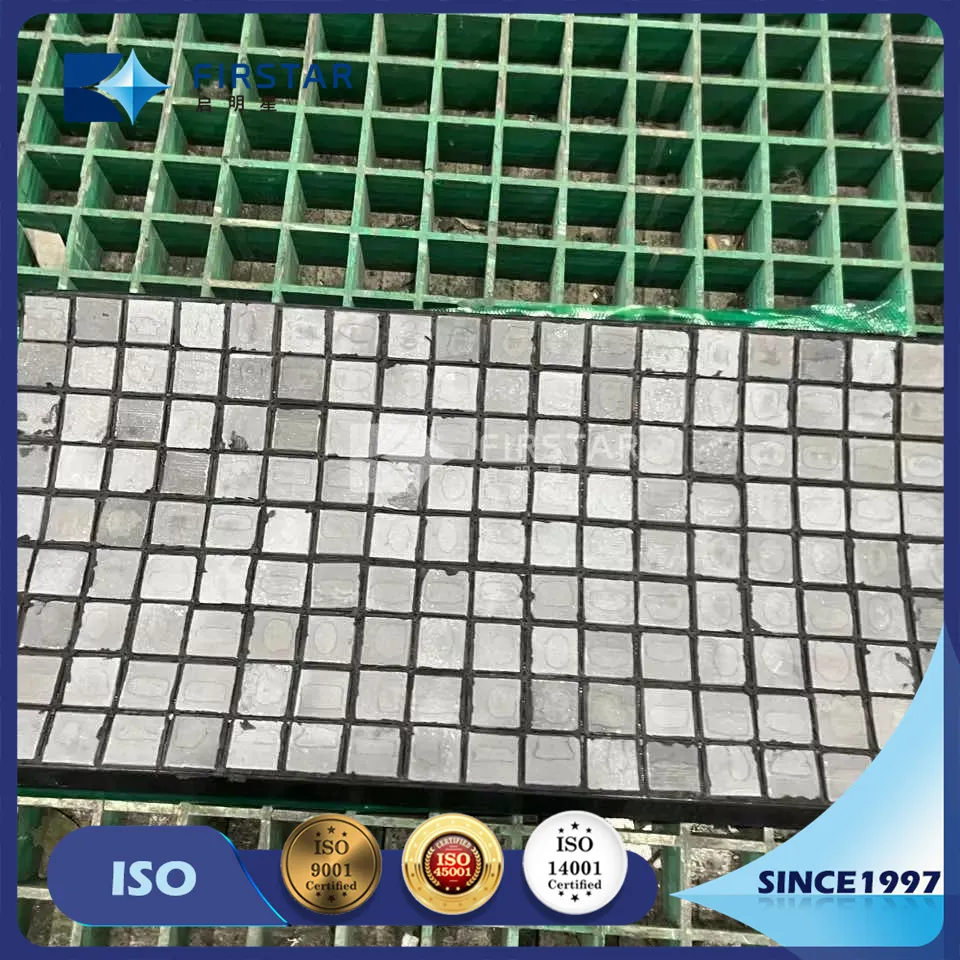

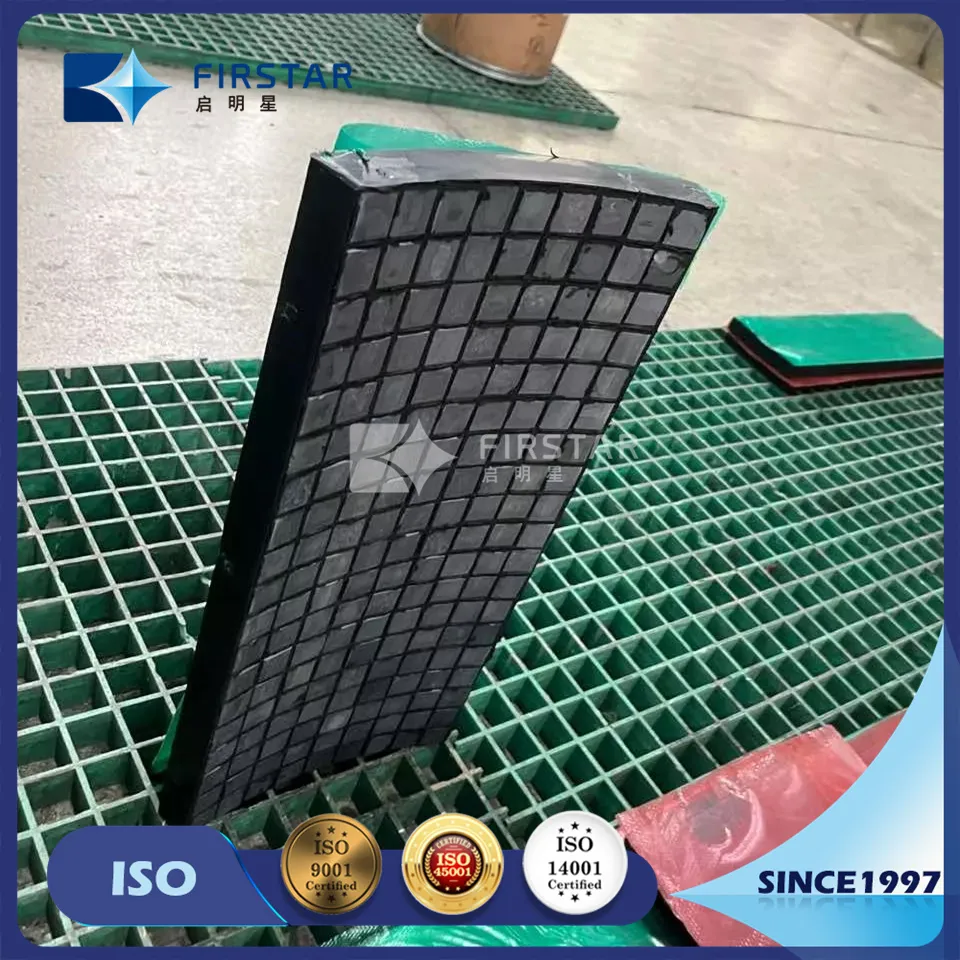

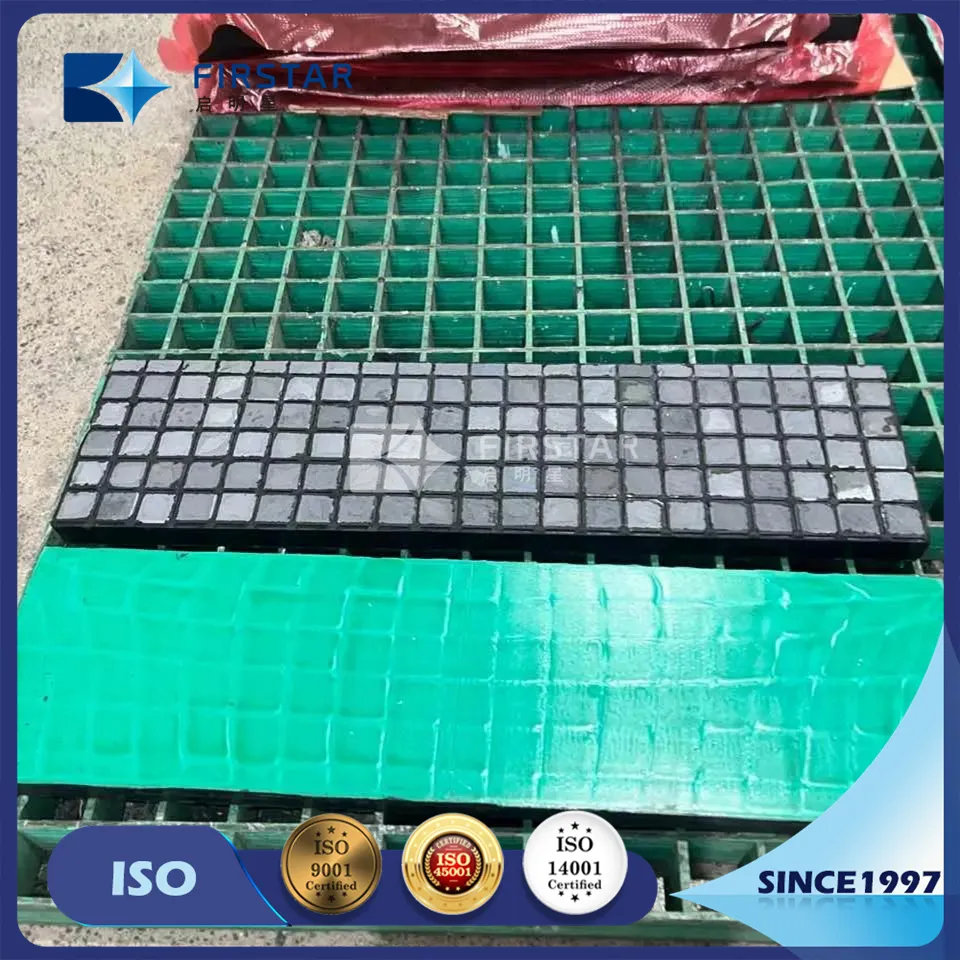

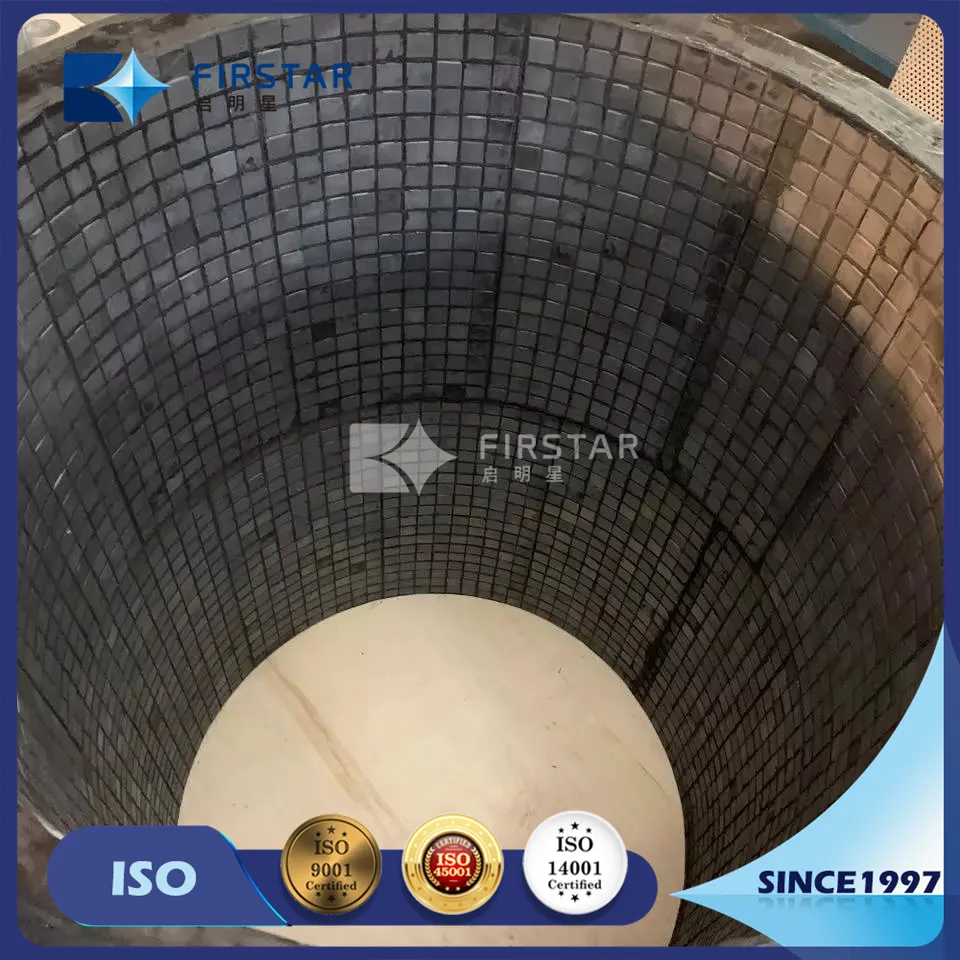

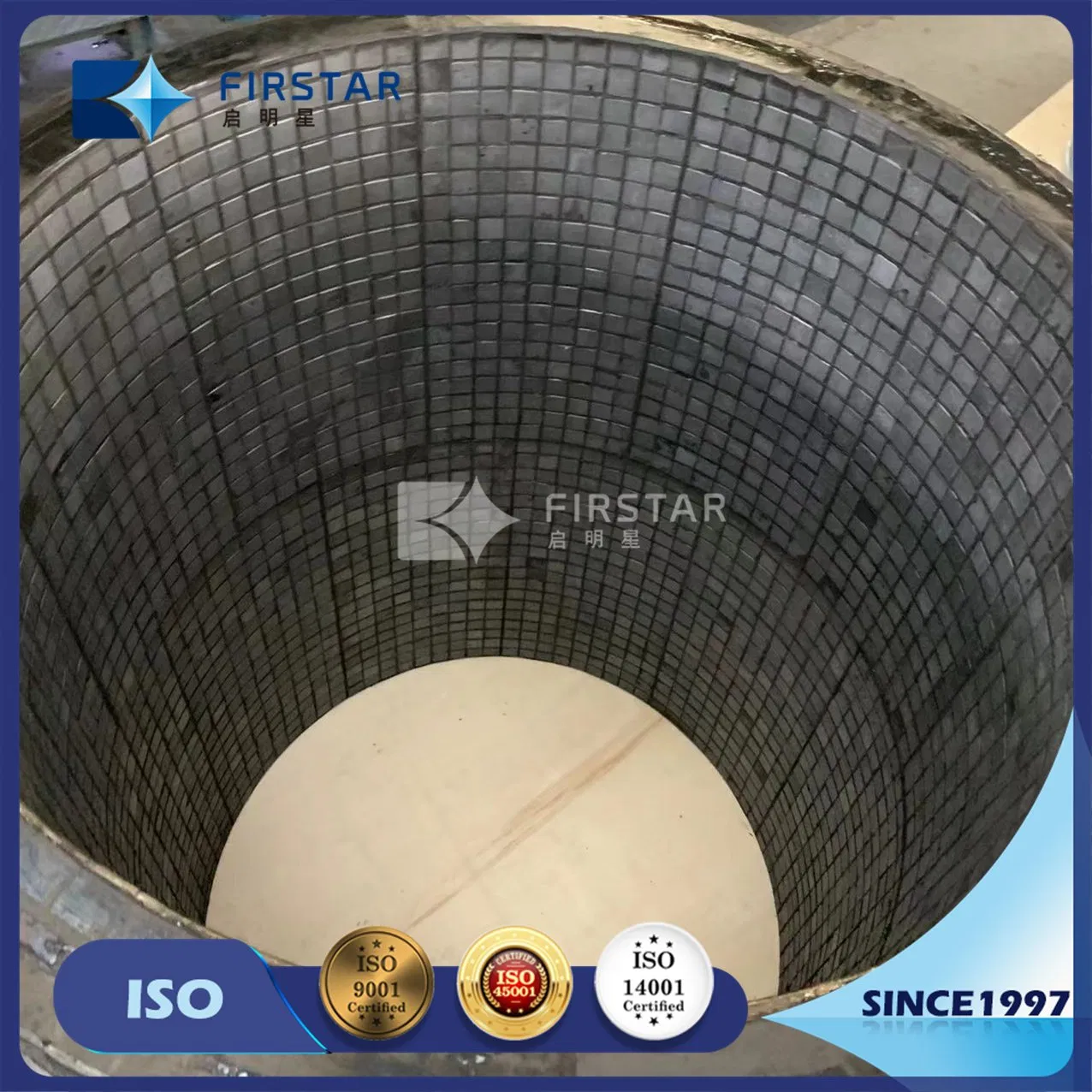

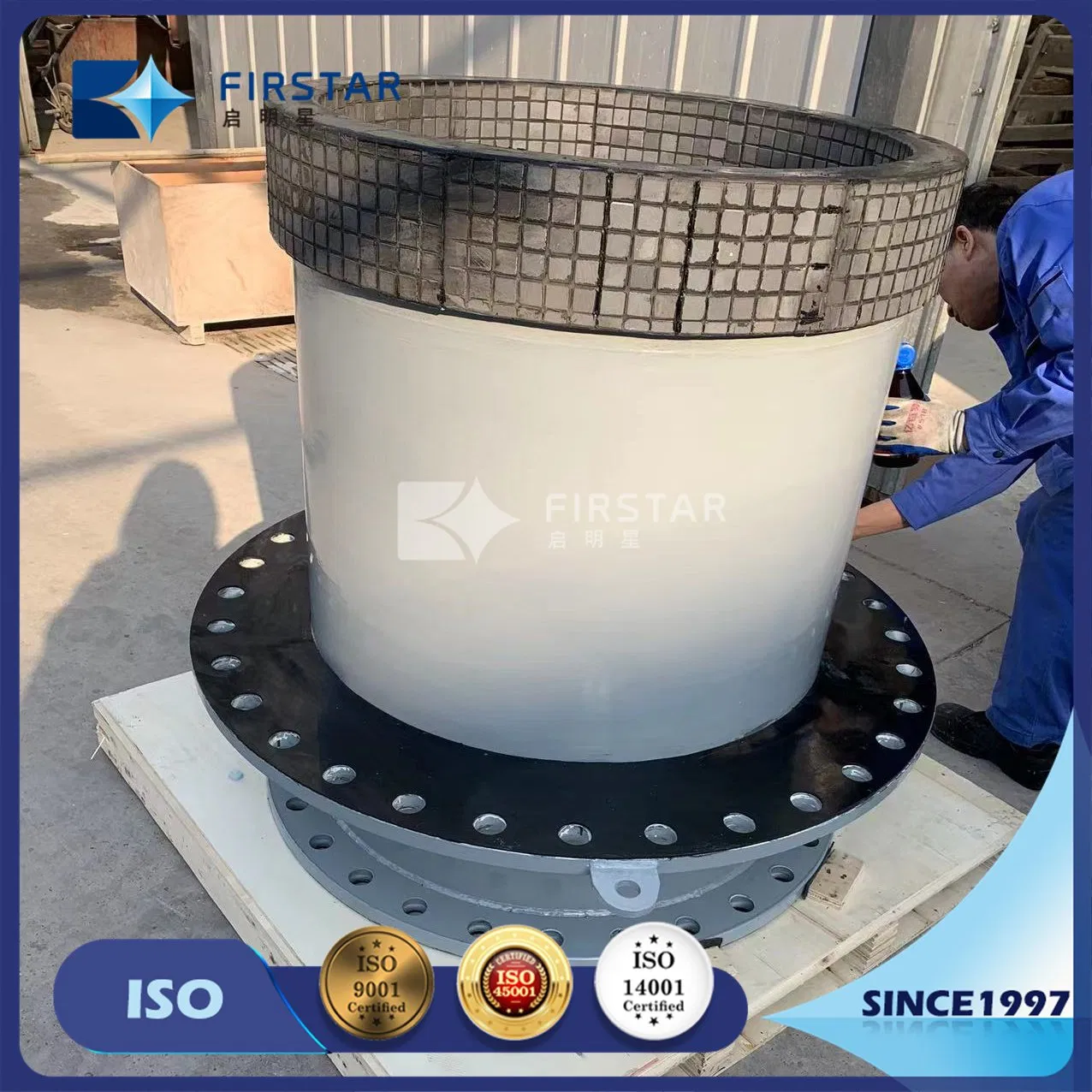

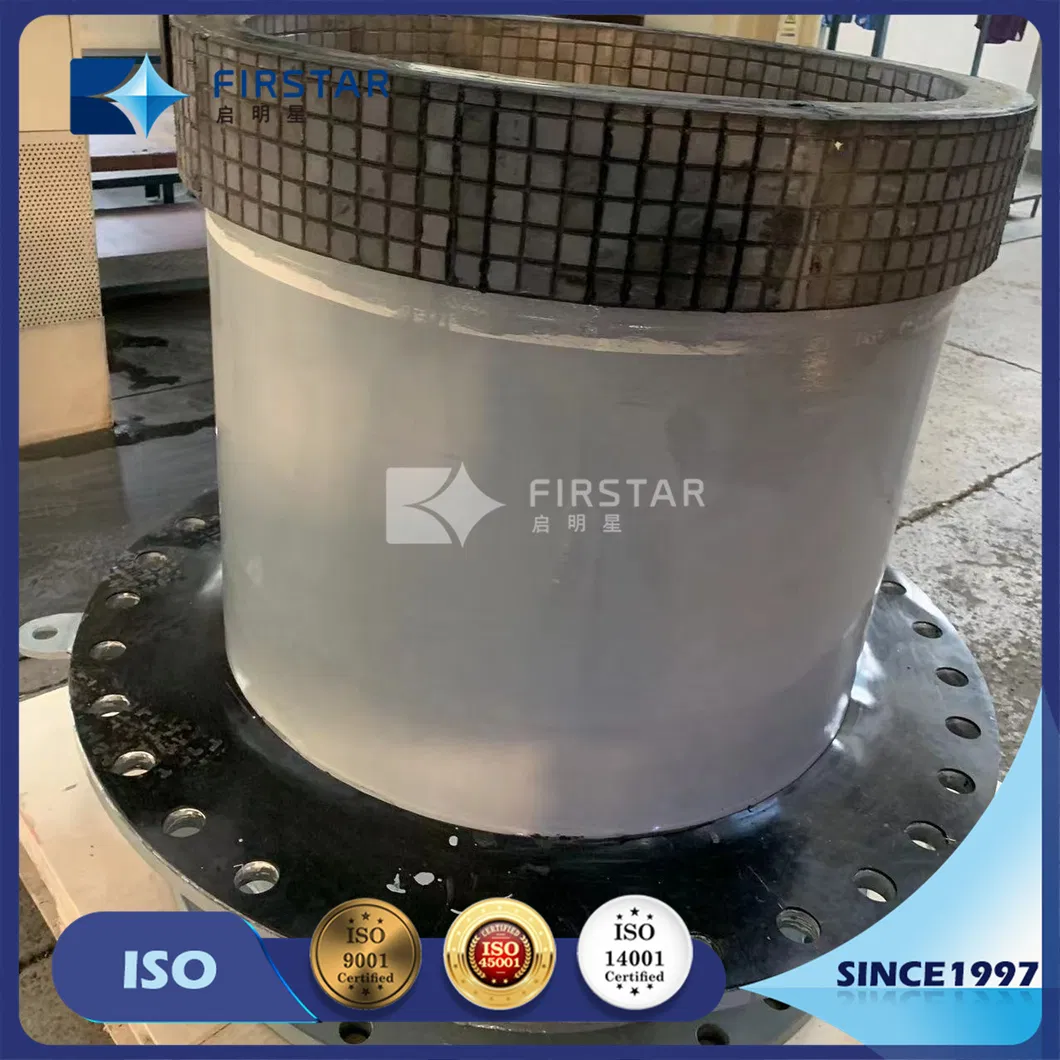

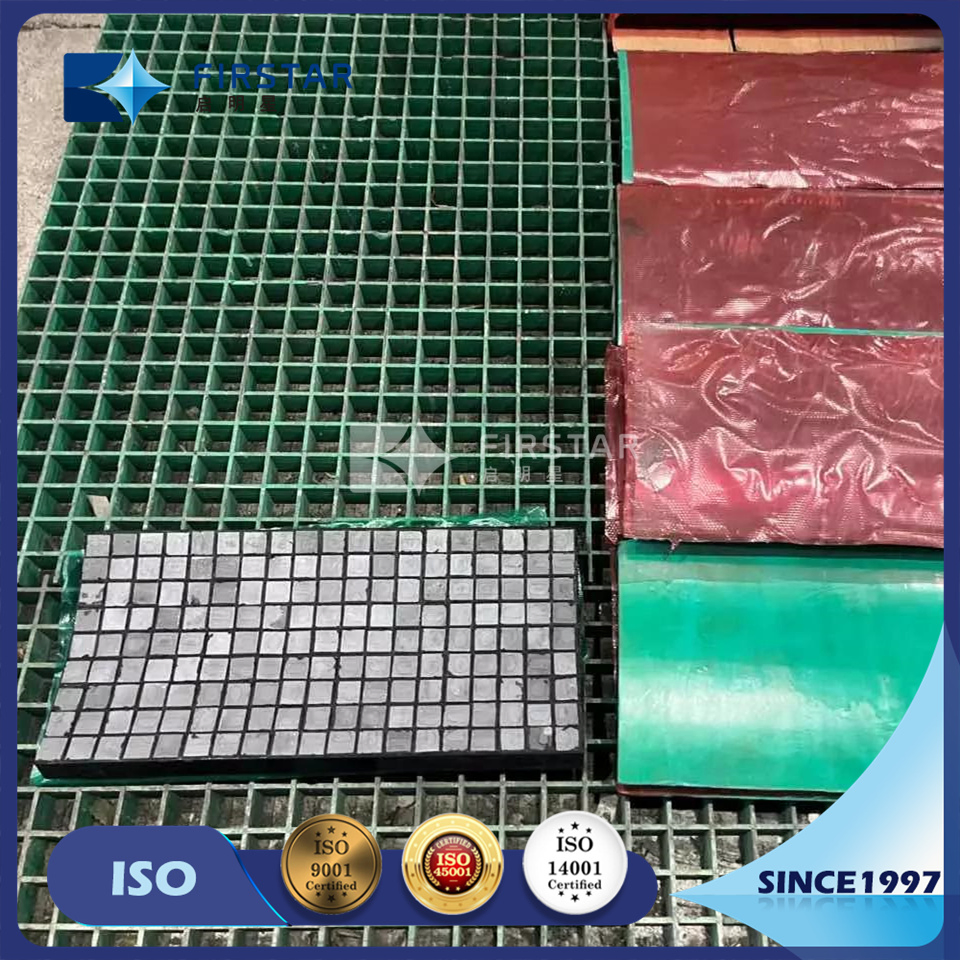

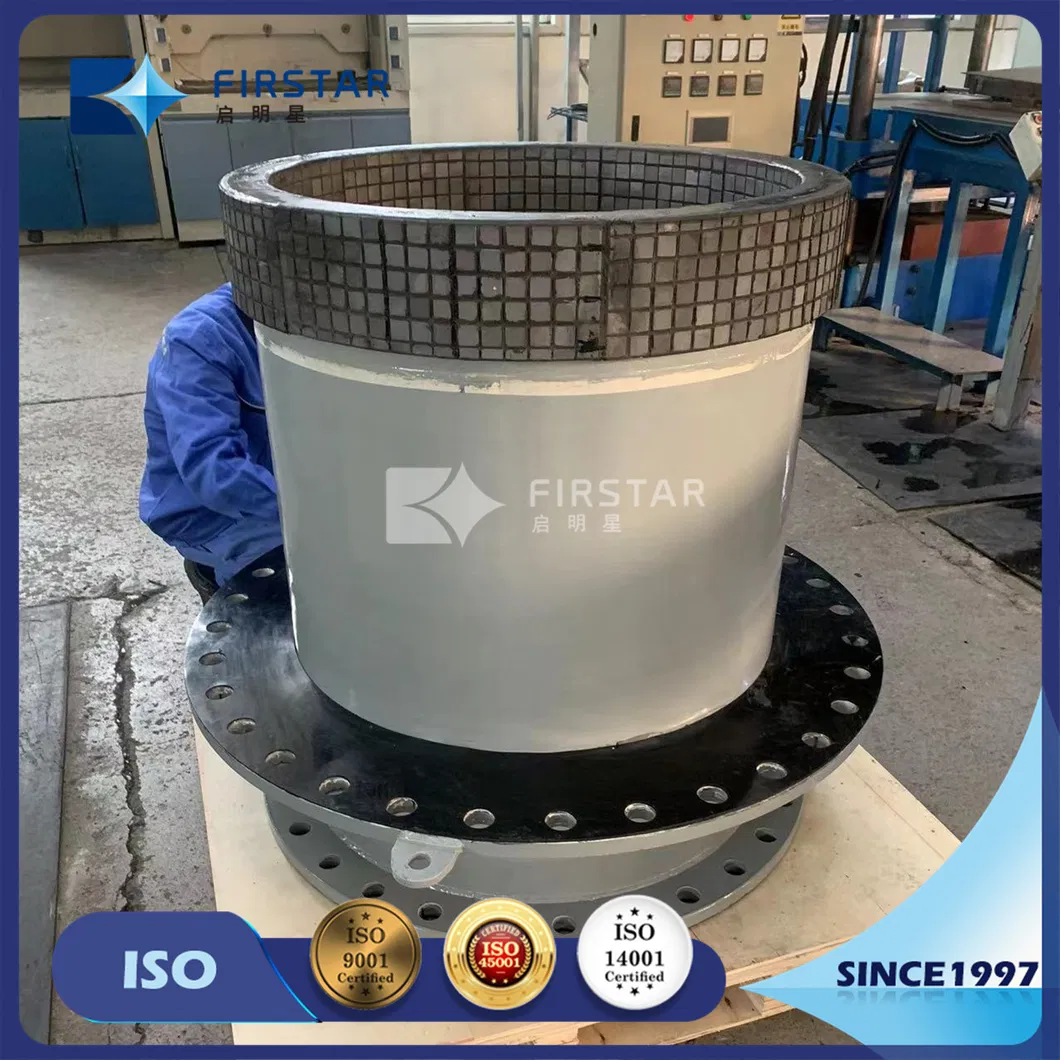

Wear Resistant Ceramic Rubber Composite Liner is engineered by combining high-performance alumina ceramics (cylinders, hexagons, or plates) vulcanized within a resilient rubber base. These panels can be supplied with or without steel backing depending on application requirements.
| Component | Property | Value |
|---|---|---|
| Ceramic | Hardness (Hv) | 950 n/mm² |
| Compression Strength | 1050 MPa | |
| Rubber | Tensile Strength | ≥15 Mpa |
| Shore Hardness | 45-65 | |
| Working Temp | -50ºC - 200ºC | |
| Steel | Density | 7.85g/cm³ |
Our wear liners are essential for systems handling abrasive materials:
| Feeding Systems | Belt head hoppers, trolley tee buckets, feed hoppers |
| Sintering Systems | Vibrating screens, beneficiation hoppers, silos |
| Dust Removal | Dust pipes, elbows, tees, tail dust pipes |
| Coking & Milling | Coke hoppers, coal injection pipes, burner cones |
