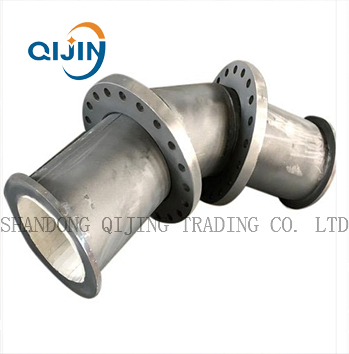

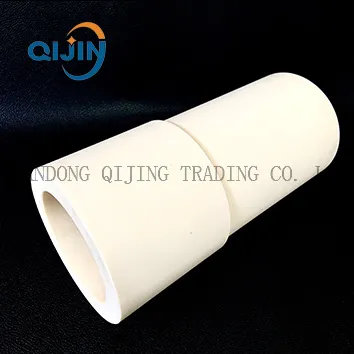

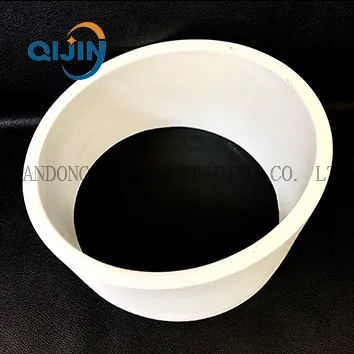

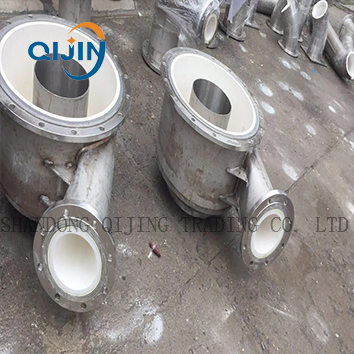

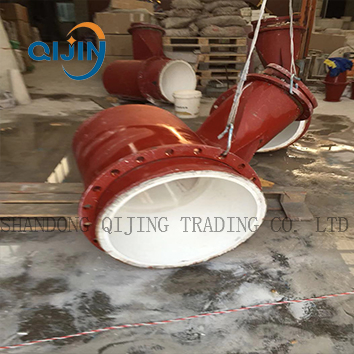

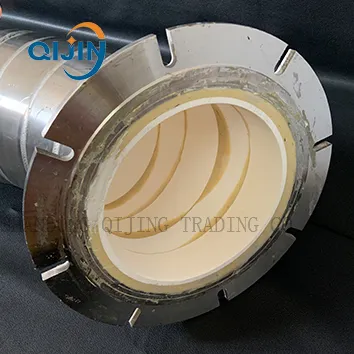

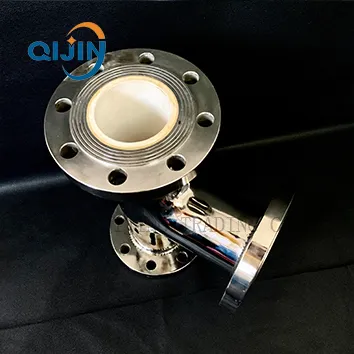

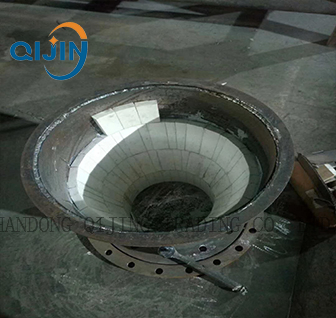

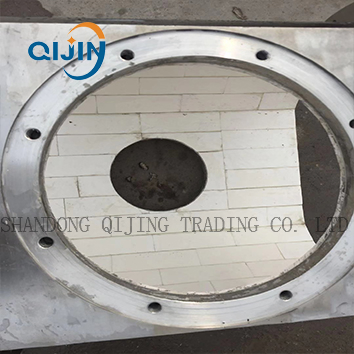

Industrial ceramics are widely used in power, coal, metallurgy, chemical industry and other industries as abrasive materials and corrosive medium. It is an ideal wear-resistant and corrosion-resistant pipeline solution used to transport sand, coal, ash and aluminum liquid, suitable for different high-temperature pipeline diameters.
Common Applications:
| Property | 92 Alumina | 95 Alumina | 97 Alumina | 99 Alumina |
|---|---|---|---|---|
| Al2O3 (%) | ≥92 | ≥95 | ≥97 | ≥99 |
| Fe2O3 (%) | ≤0.2 | ≤0.15 | ≤0.15 | ≤0.1 |
| Hardness (Mohs) | ≥8 | ≥9 | ≥9 | ≥9 |
| Density (g/cm3) | ≥3.60 | ≥3.65 | ≥3.75 | ≥3.9 |
| Porosity (%) | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.01 |
1. Handle with Care: High hardness but should be put gently to avoid serious collision or impact on the ceramic layer.
2. Directivity: Install according to the arrow direction on the surface consistent with medium flow.
3. Alignment: Ensure center line alignment; displacement should be controlled within 1.0mm.
4. Joints: For flexible joints, adjust inserted lengths symmetrically. Expansion clearance can be 3-5mm.
5. Welding: Can be conducted by welding with a 45°-60° "V" type slope angle.
A: We are a professional factory specializing in industrial ceramics.
A: Generally it is 15 days if mould sizes are in stock, or 25 days if customized, depending on quantity.
A: Yes, we offer stock samples for free, though freight costs are covered by the customer.
A: For new customers, 50% T/T in advance. For regular customers, 30% T/T in advance and balance after B/L copy.
A: Our ceramic pipe sizes range from 10mm to 500mm, with a maximum ID up to 620mm.
A: We use fumigated wooden boxes for export. For tight container spaces, we use PE film or customized packing per request.
