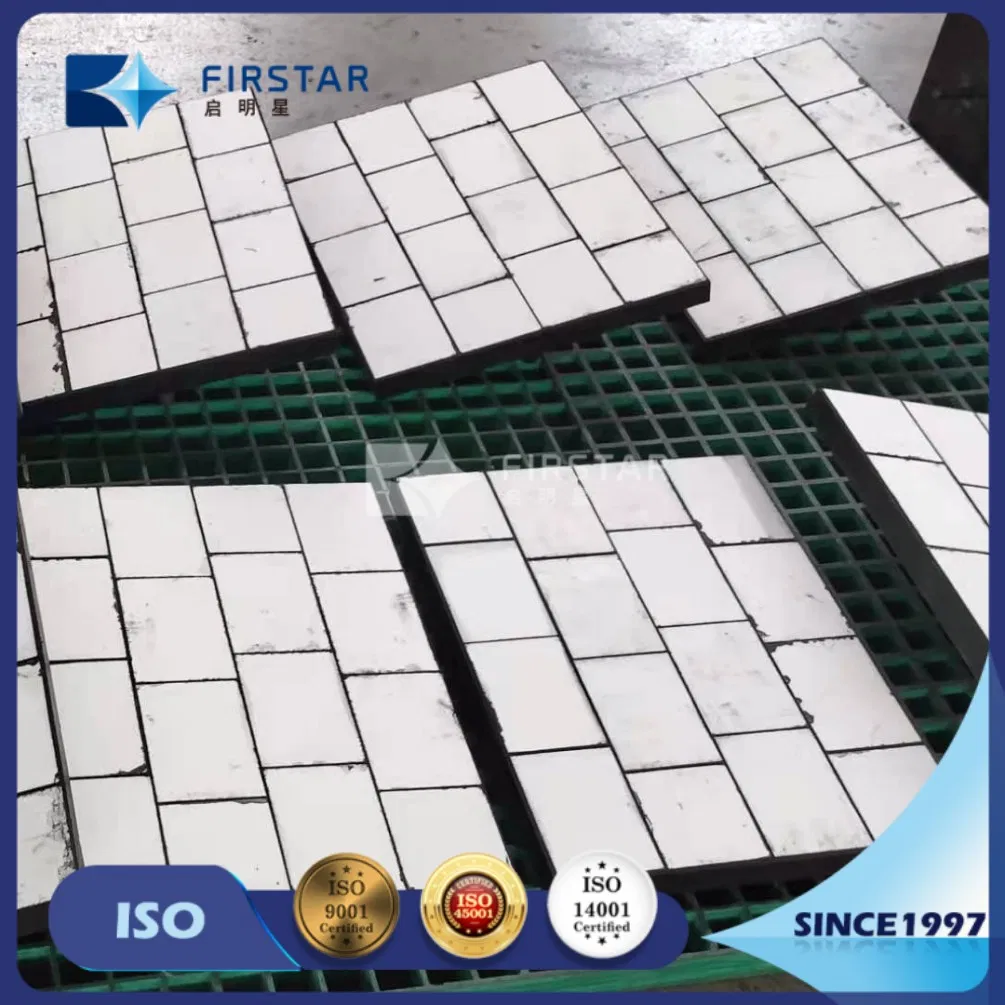

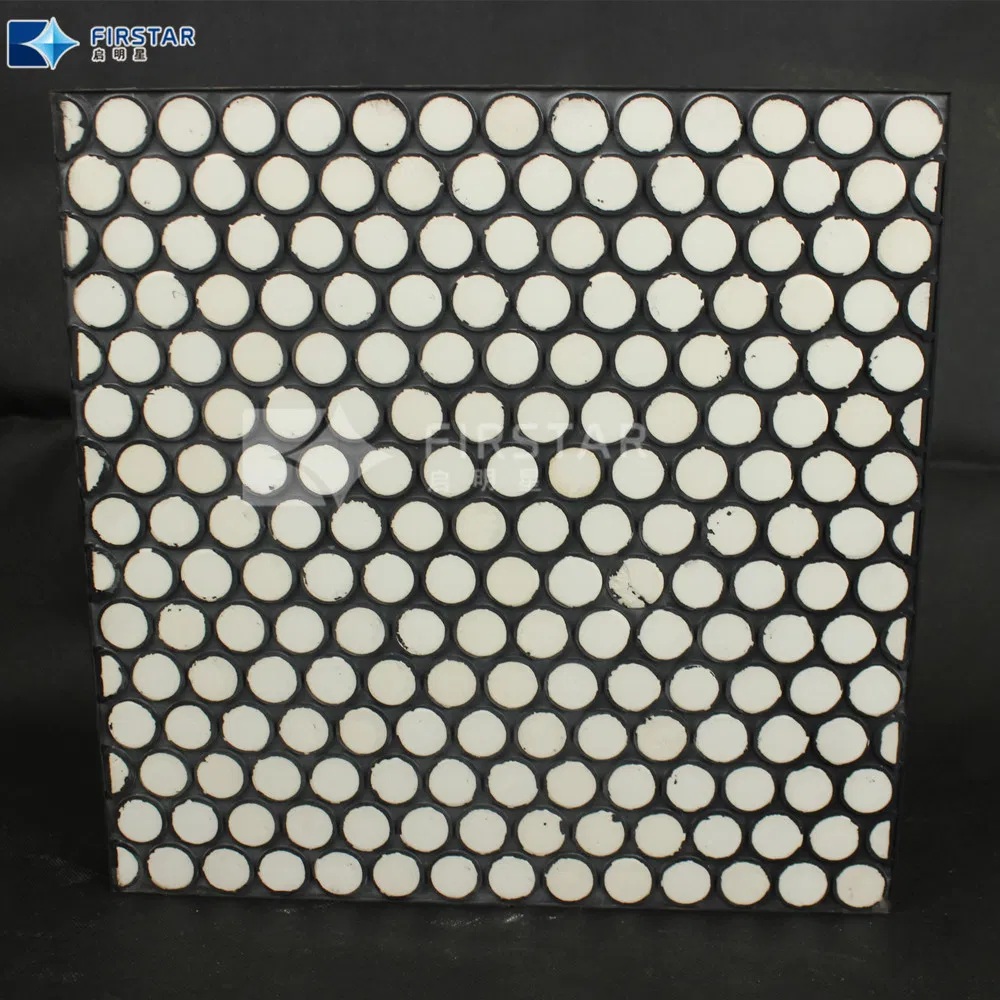

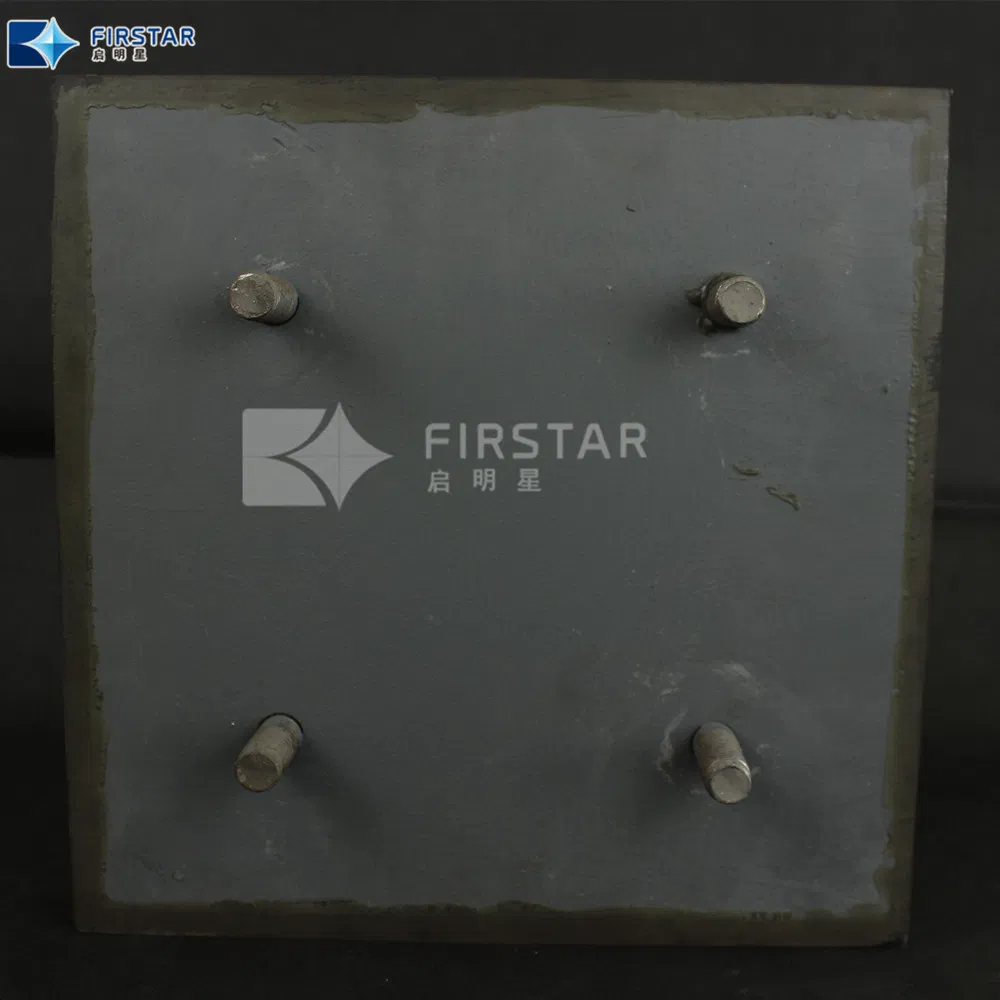

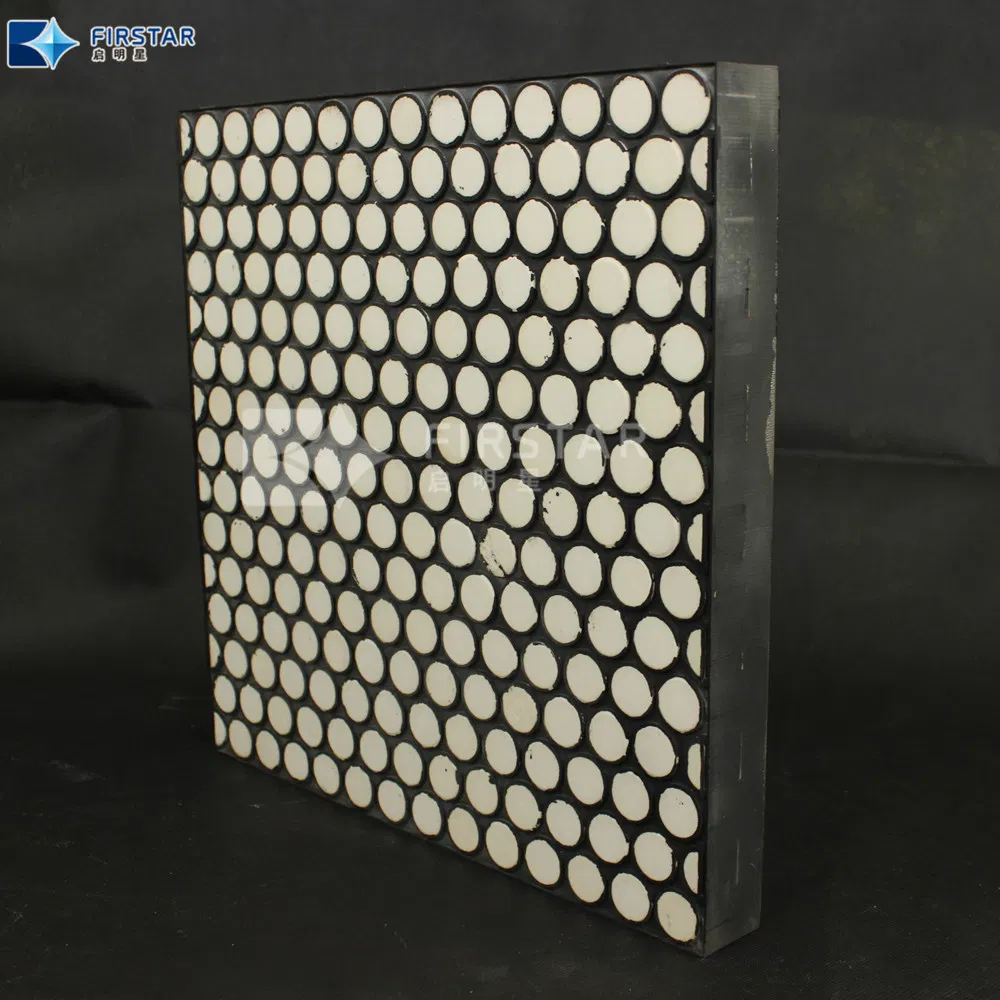

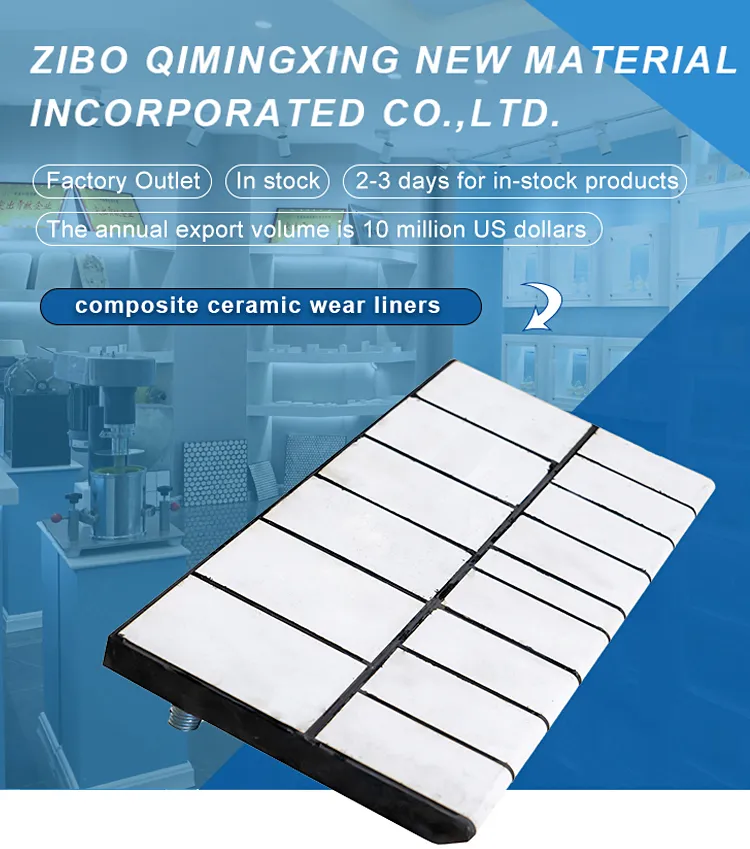

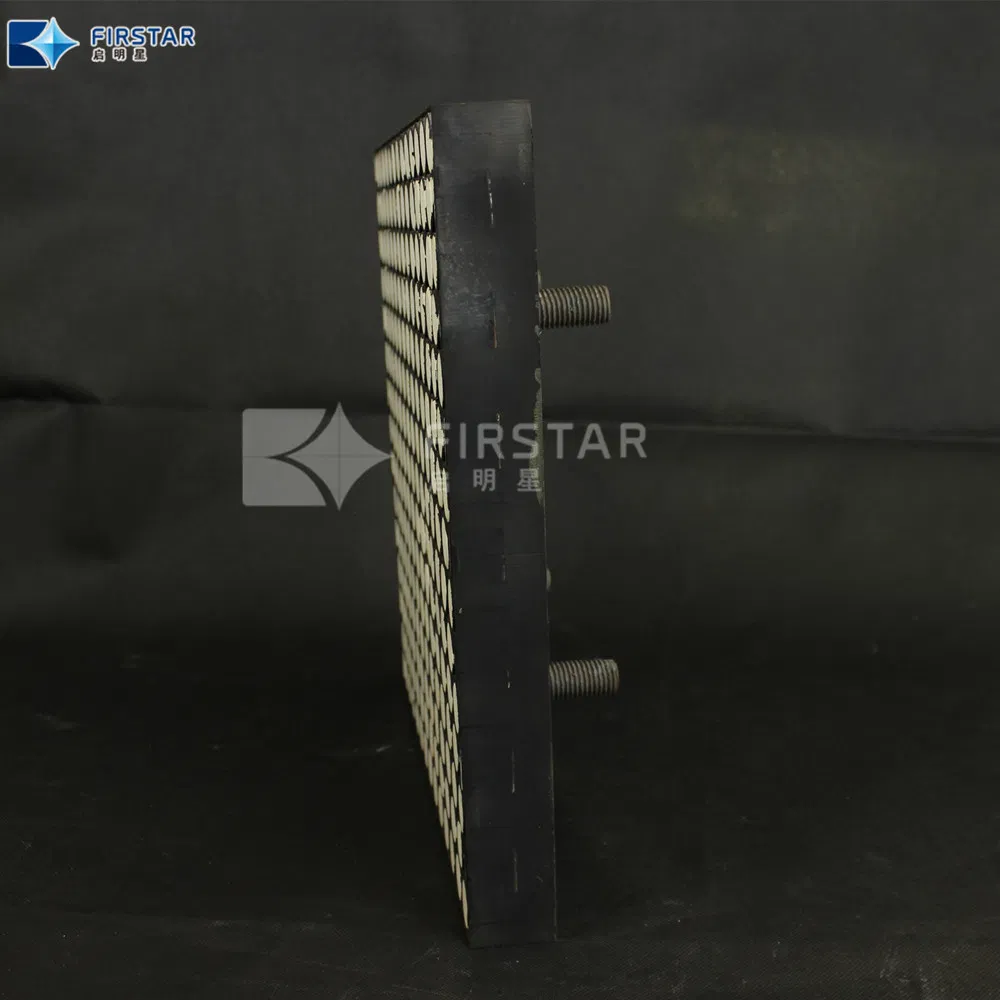

Ceramic-Rubber Composited Plates Backed with Steel Plate
Ceramic on rubber mats are available in varying thickness to suit different applications. The mats are supplied with a CN bonding layer and are ideal for lining over the top of rubber in high wear areas such as cyclone launders, dividers, and chutes.

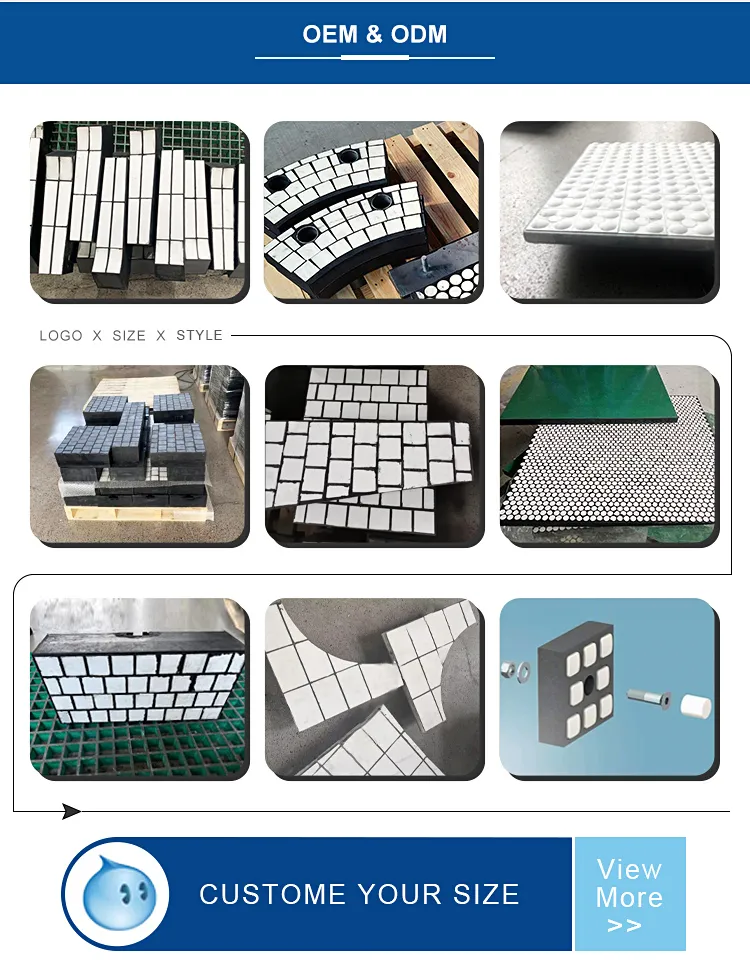

Available Sizes: 150x300mm, 300x300mm, 150x450mm, 500x500mm, and more.
| Category | 92 Series | 95 Series | T 95 Series | 99 Series | ZTA | ZrO2 |
| Al2O3 | ≥92% | ≥95% | ≥95% | ≥99% | ≥75% | / |
| Fe2O3 | ≤0.25 | ≤0.15 | ≤0.15 | ≤0.1 | / | |
| ZrO2+Ye2O3 | / | / | / | / | ≥23% | ≥99.8% |
| Density | >3.60g/cm3 | >3.65g/cm3 | >3.70g/cm3 | >3.80g/cm3 | >4.10g/cm3 | >5.90g/cm3 |
| HV Hardness (MPa) | 980 | 1040 | 1100 | 1250 | 1360 | 1100 |
| Bending Strength MPa | 260 | 280 | 320 | 350 | 400 | 1000 |
| Compression strength MPa | 1150 | 1200 | 1250 | 1300 | 1400 | / |
| Fracture Toughness | >3 | >3 | >3 | / | >4 | / |
| Abrasion | ≤0.47cm3 | ≤0.42cm3 | ≤0.28cm3 | ≤0.10cm3 | ≤0.10cm3 | ≤0.10cm3 |
