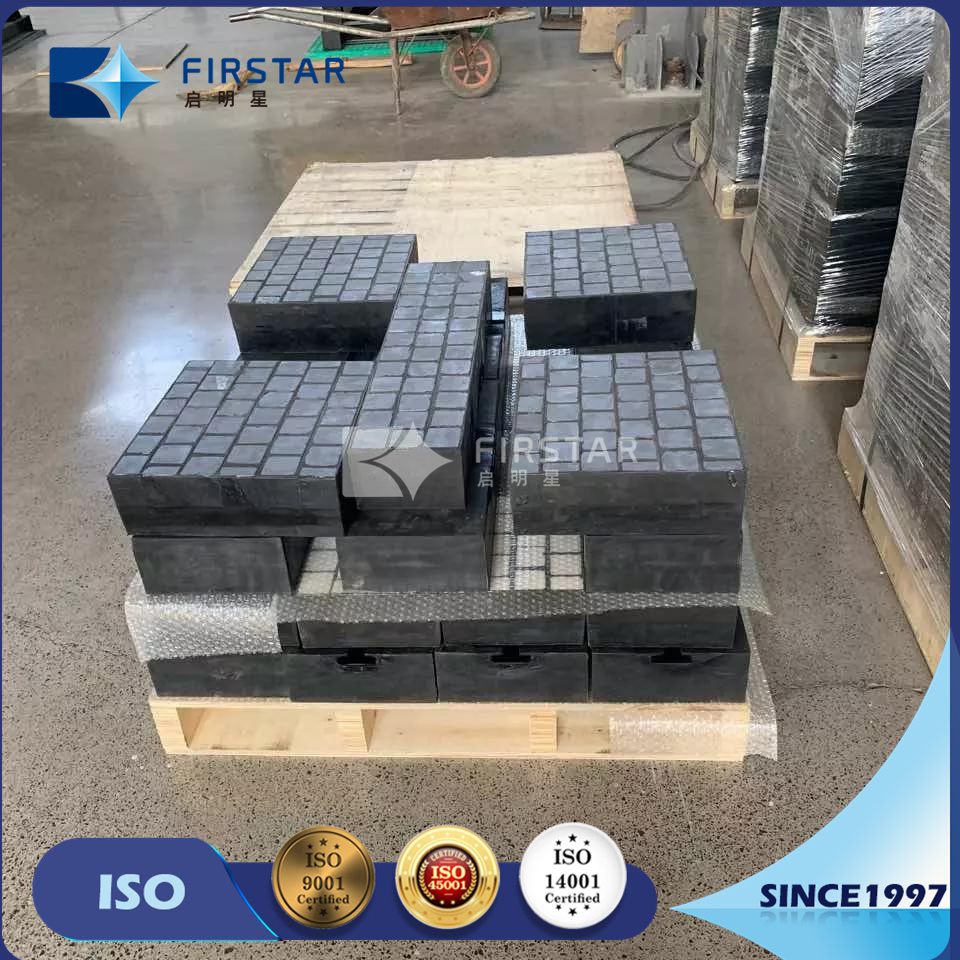

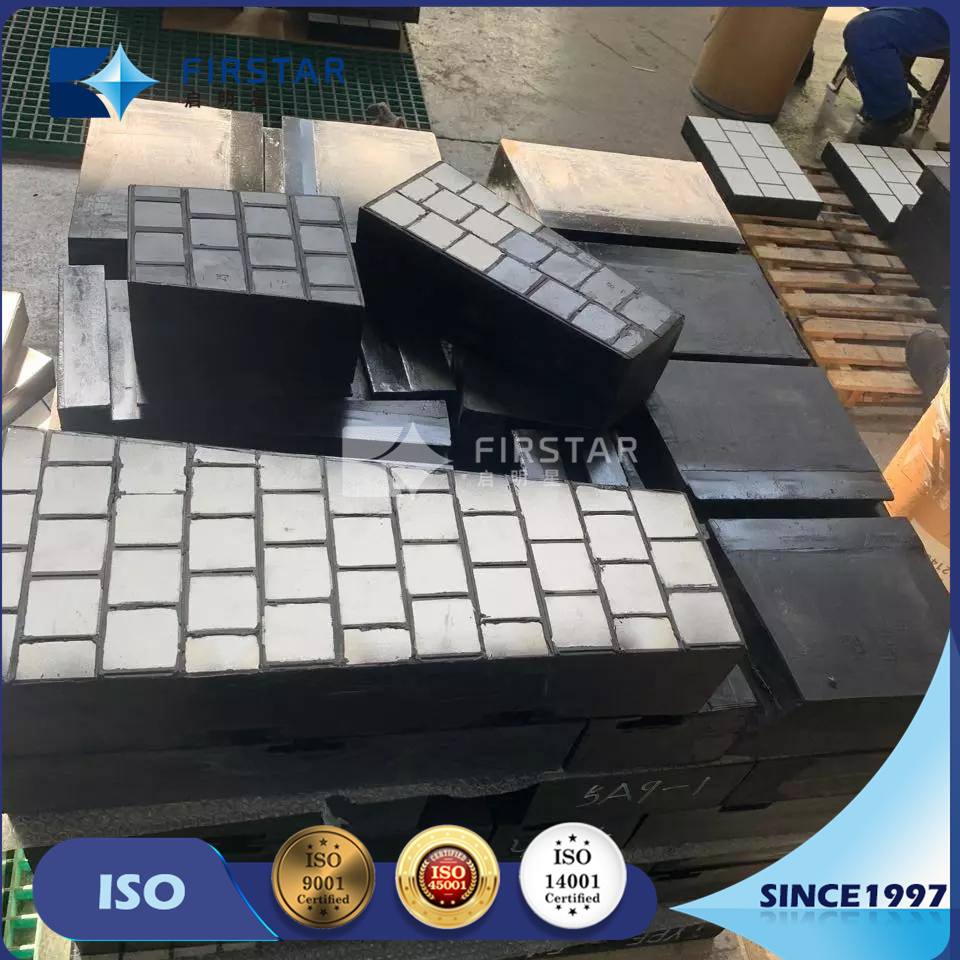

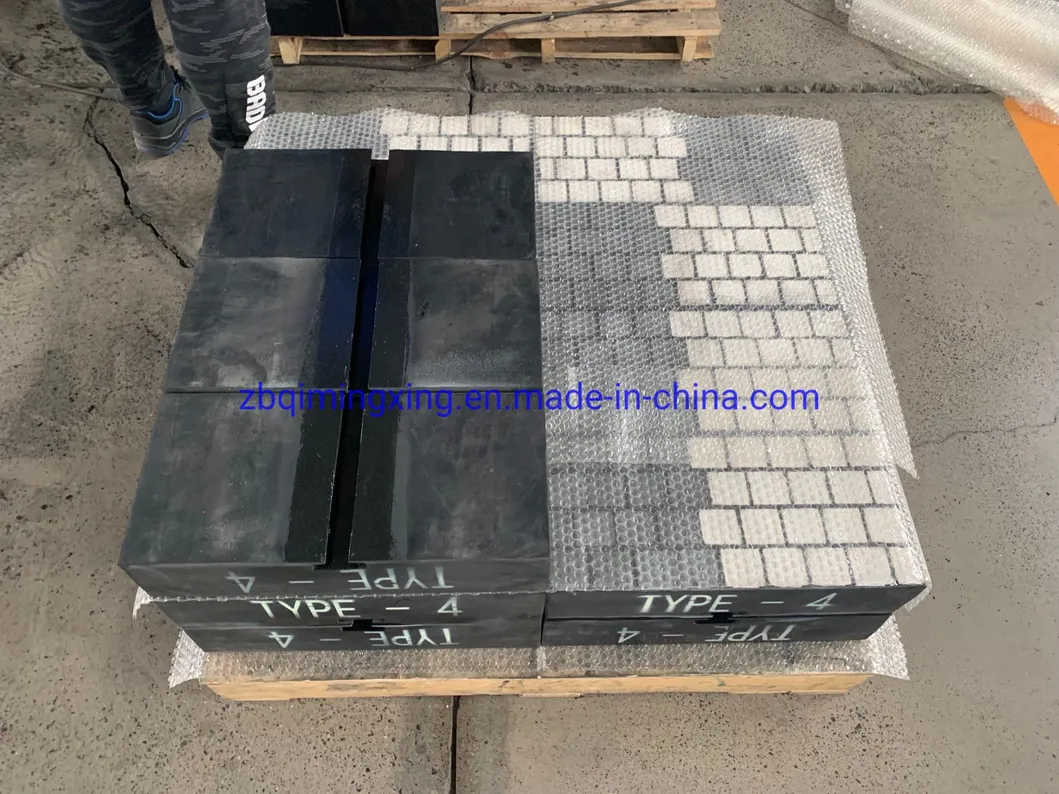

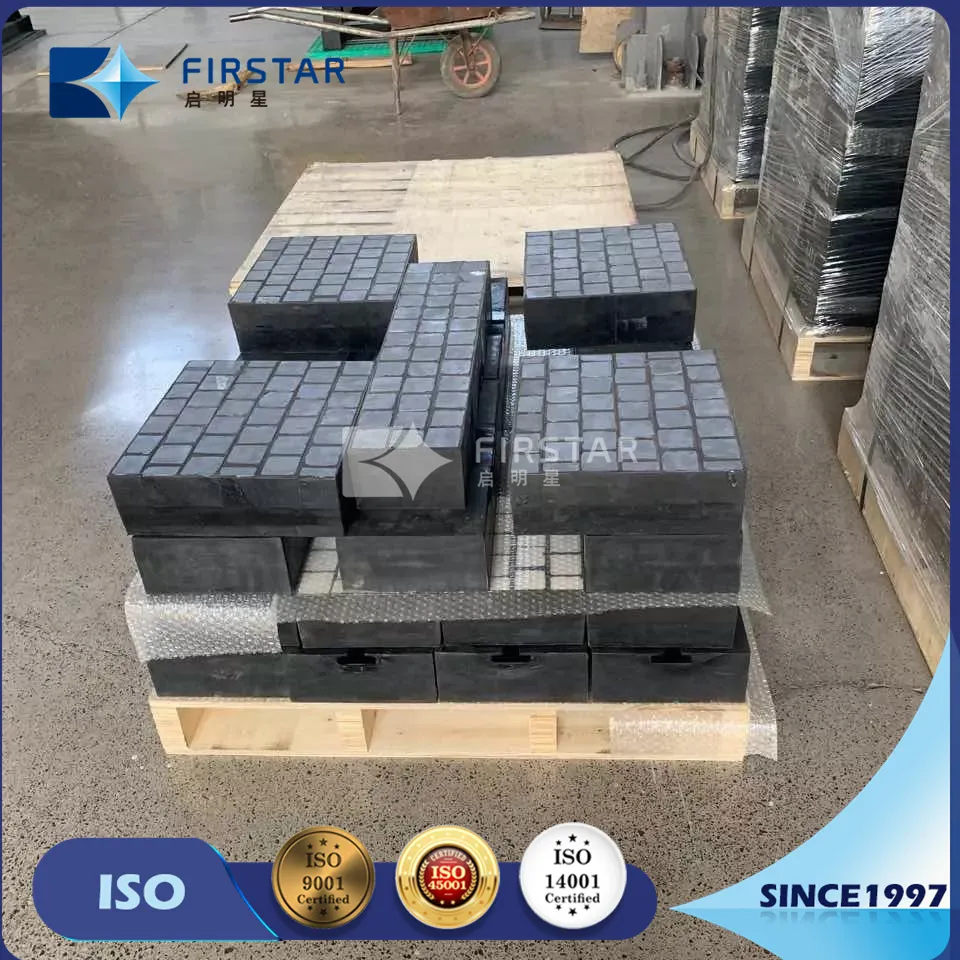

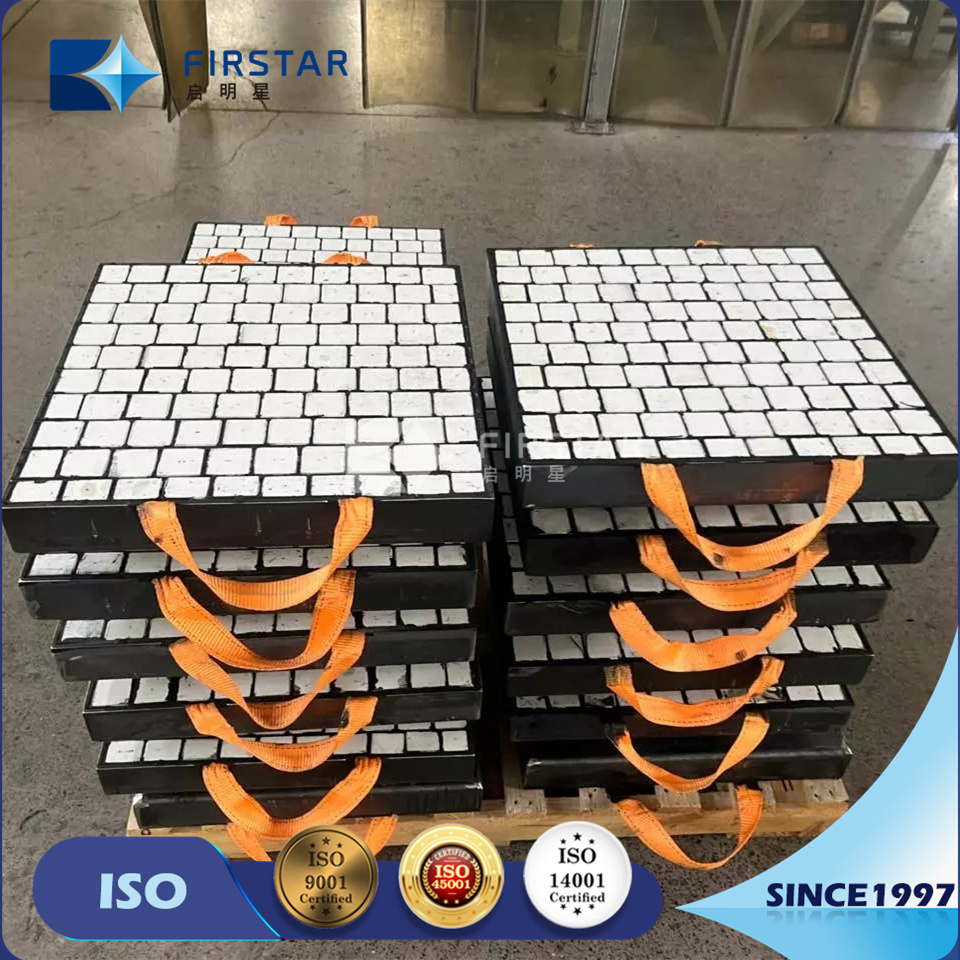

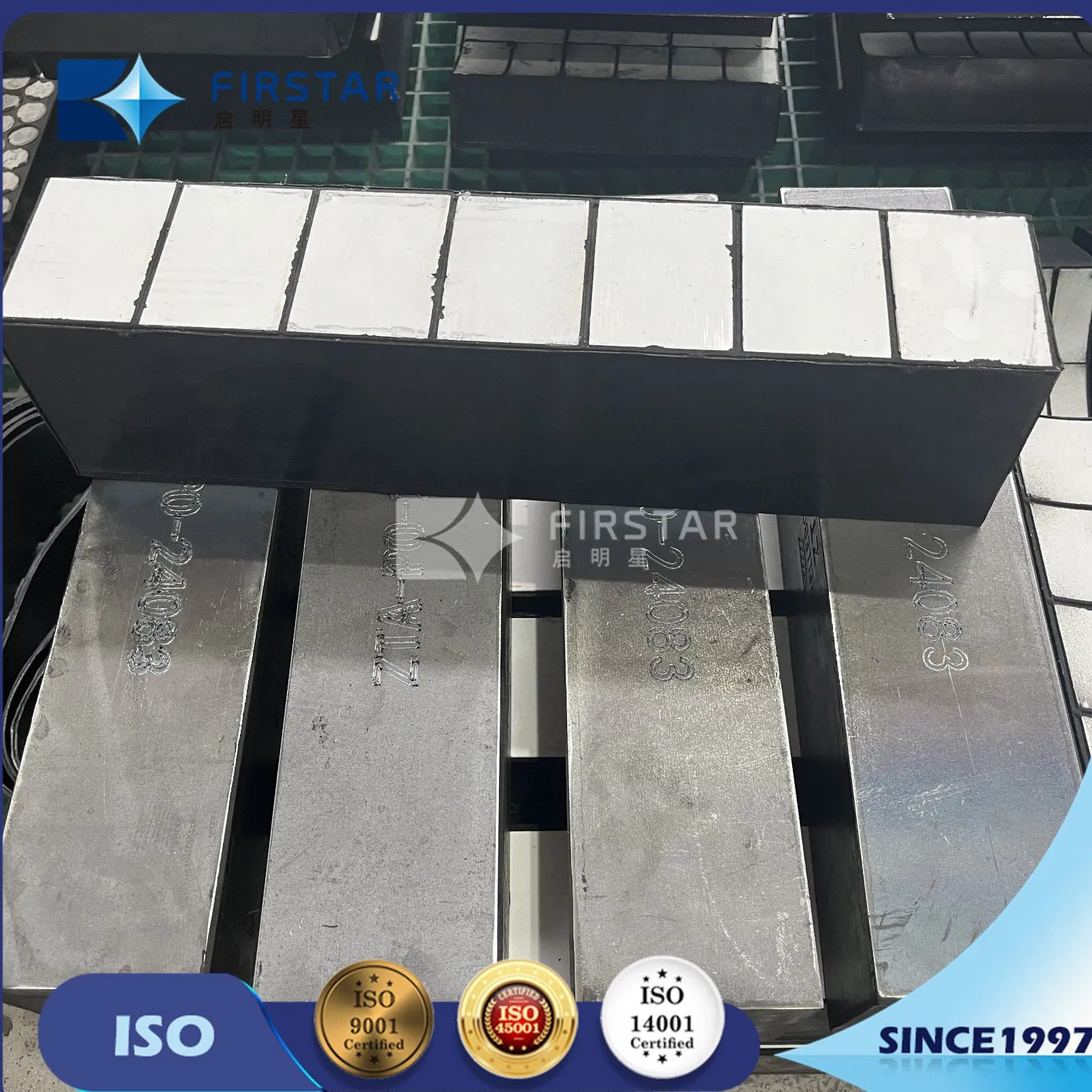

The rubber backed ceramic panel also can be called ceramic composite panel, steel/rubber backed ceramic panel, three-in-one ceramic panel, two-in-one ceramic panel, ceramic wear panel, ceramic bonded rubber panel/mats and so on.

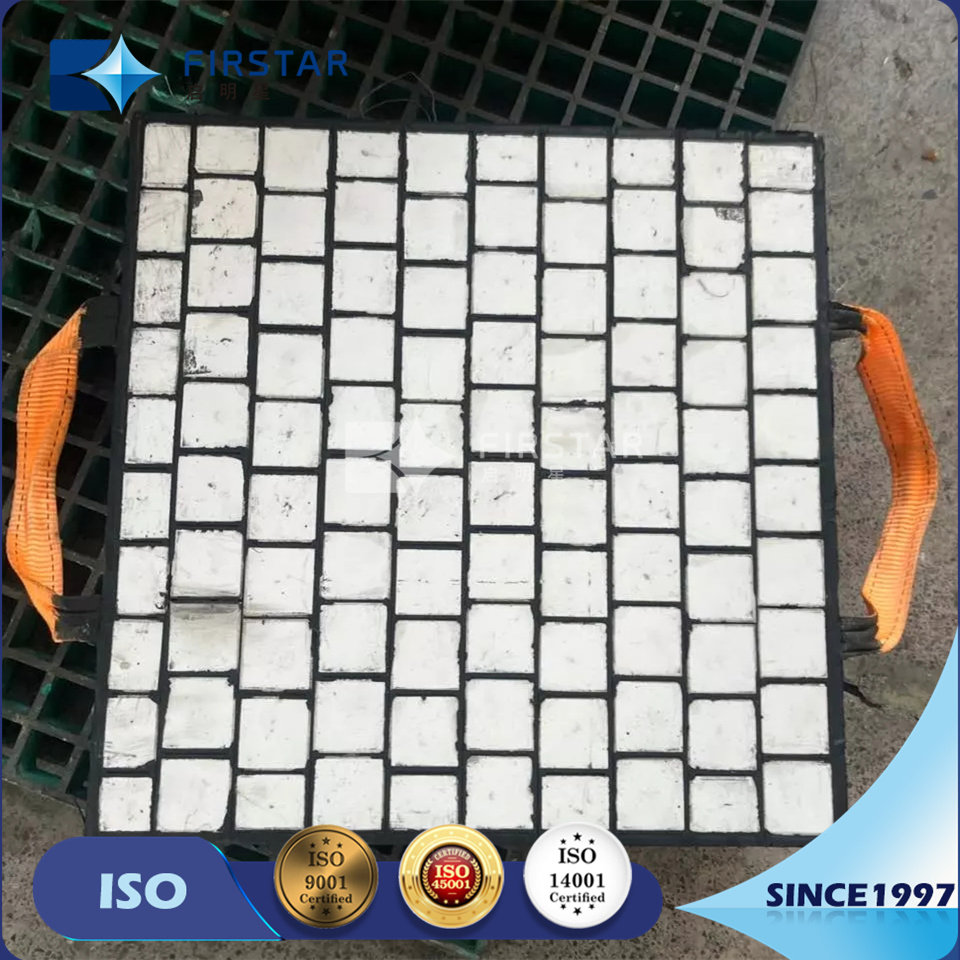

Alumina ceramics are the second hardest material after diamonds, and are ideal to line many components where rigorous wear is experienced or anticipated. Our ceramic wear liners can be supplied as tiles, in various thicknesses and grades, or as a series of inlaid balls, cylinders or hexagon shapes bonded to and contained within a rubber matrix.

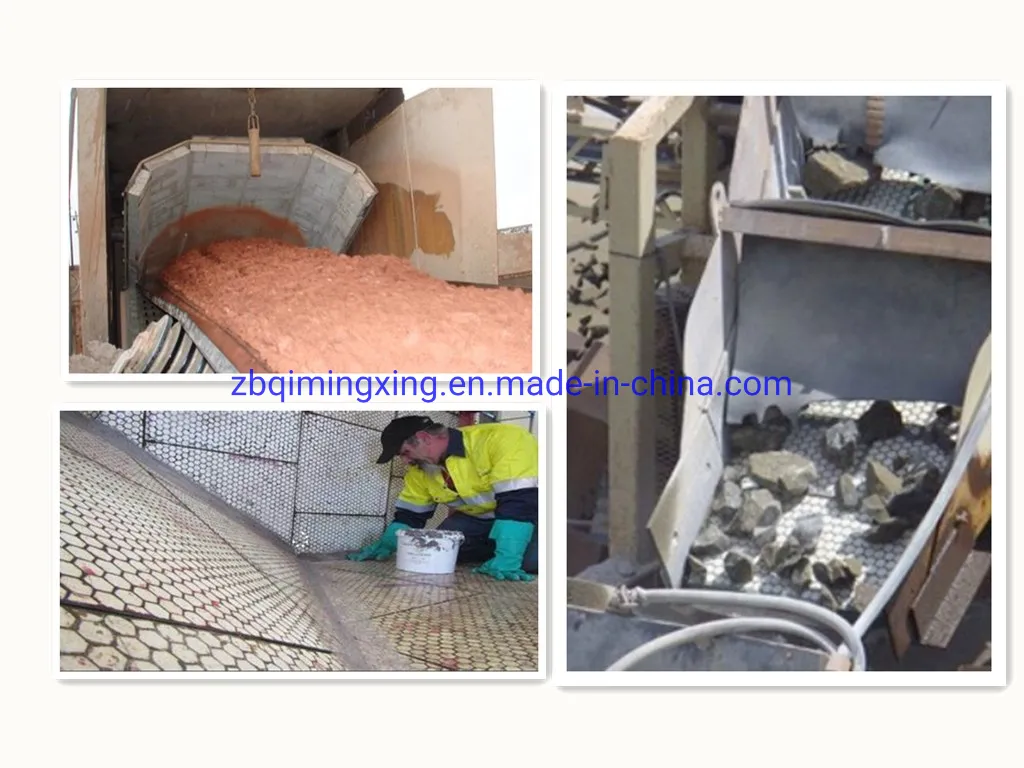

Ceramic rubber wear liner is suitable for the wear resistant equipment of bulk material conveying system. Such as the coal hopper, coal chute, material mixer, feeders, bins, bunkers so on. Major applicable industries are mining, coal fired power plants, cement plants, blast furnace plants and other industries requiring high impact abrasion resistant surfaces.

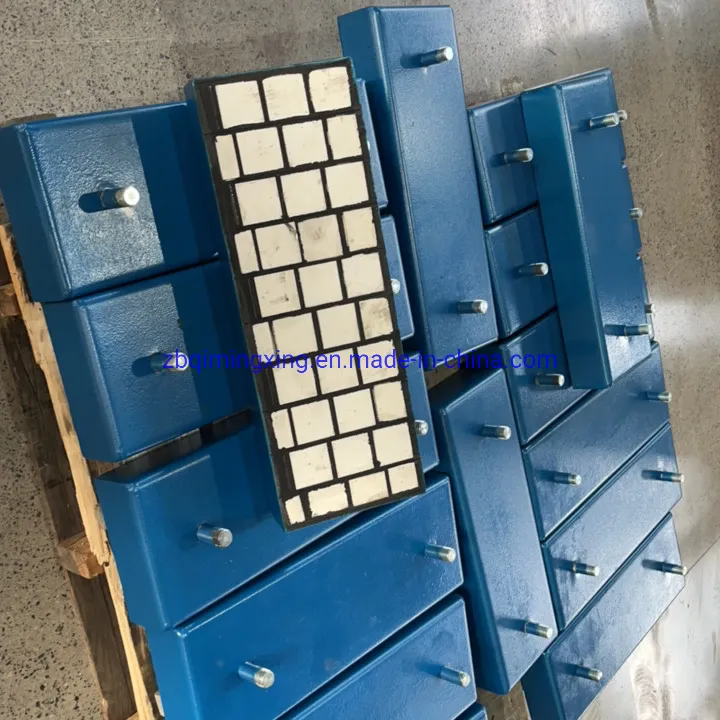

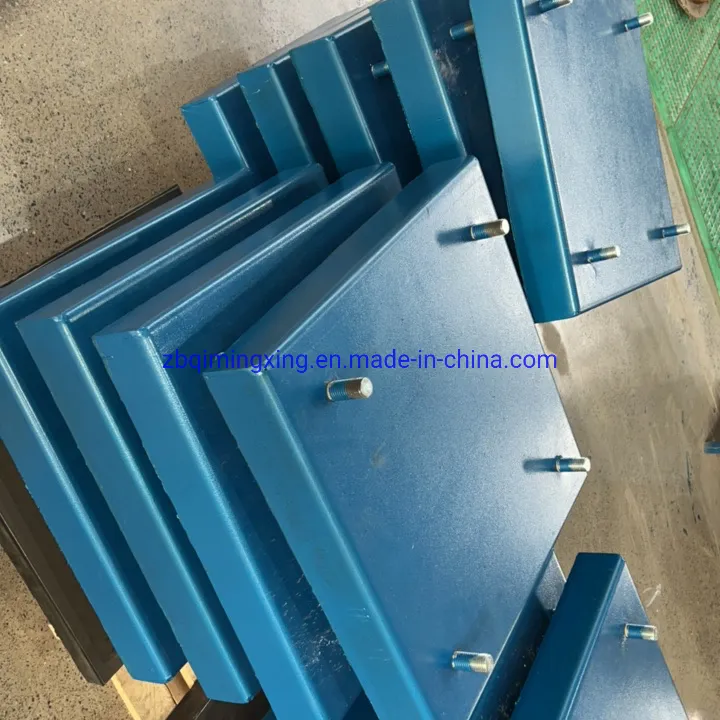

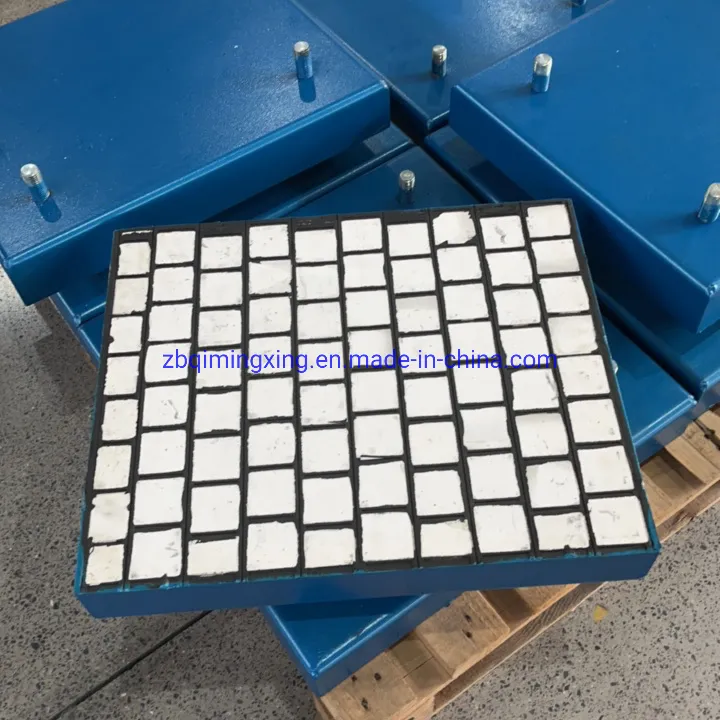

Advantages & InstallationExcellent in high impact /abrasion applications to absorb impact while offering sliding abrasion resistance. It also assists in reducing noise levels within the plant. Installation is easily done by bonding directly to steelwork using metal primer and bonding agents, or via welded stubs with bolts and nuts.
| Material | Attributes | Properties |
|---|---|---|
| Ceramic Tiles | Material | 92%, 95%, T95%, ZTA, Silicon Carbide |
| Rubber | Density | ~1.4g/cm3 |
| Tensile strength | ≥15Mpa | |
| Shore Hardness | 45-65 | |
| Working temp | -50ºC - 200ºC | |
| Steel Plate | Material | Q235A (5-6mm thickness) |
