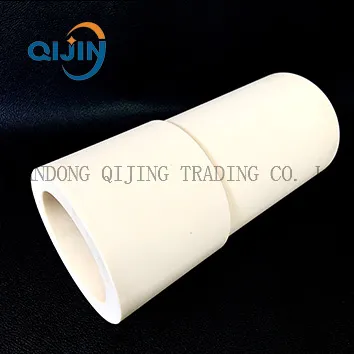

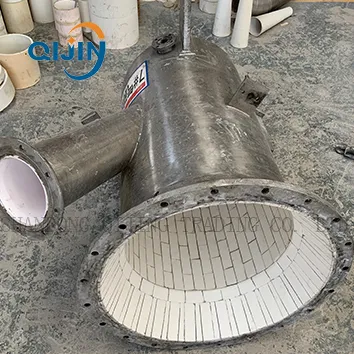

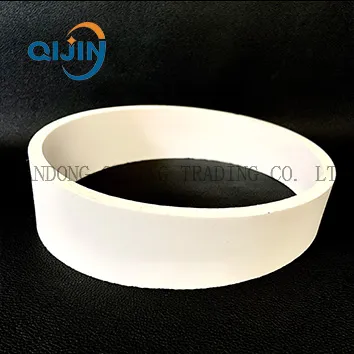

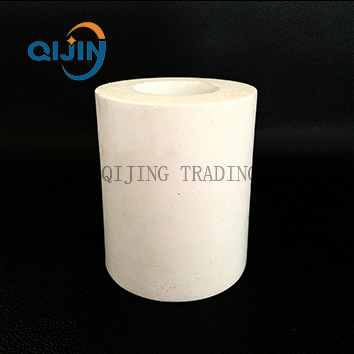

| Product | ID(mm) | OD(mm) | Thickness(mm) | Length(mm) | R(mm) | Degree |
| Straight Tube | 76 | 106 | 15 | 150-250 | / | / |
| Straight Tube | 100 | 140 | 20 | 305 | / | / |
| Straight Tube | 150 | 185 | 17.5 | 150-250 | / | / |
| Straight Tube | 200 | 240 | 20 | 305 | / | / |
| Bend | 76 | 106 | 15 | / | 400 | 7.5 |
| Bend | 150 | 185 | 17.5 | / | 1500 | 3 |
| Ceramic pipe sizes range: 10 ~ 500 mm | ||||||
1. Handling: High hardness but handle gently to avoid serious collision or impact on the ceramic layer.
2. Directivity: For bending pipes, the arrow direction on the surface must match the medium flow direction.
3. Alignment: Align with the center line; displacement at both ends should be within 1.0mm.
4. Expansion: Since thermal expansion is 1/3 of steel, expansion clearance can be reduced by 3-5mm.
5. Welding: Can be welded using 45°-60° "V" type slope angle (2-4mm) and 0.8-1.2mm gap.
