📊 Basic Information
Model NO.:
Alumina ceramic
Material:
Alumina Ceramic, Zta, Zironia, Sic
Type:
Wear Resistant Ceramic
Lining Hardness:
900-1200hv
Transport Package:
Wooden Box
Specification:
customizable
Production Capacity:
5000000
🛡️ Product Description
Industrial ceramics are widely used in power, coal, metallurgy, chemical industry and other industries. As an abrasive material and corrosive medium.
Industrial Ceramics is an ideal wear-resistant and corrosion-resistant pipeline, used to transport sand, coal, ash and aluminum liquid, and is suitable for different high-temperature pipeline inner diameters.
In addition to the ash removal, slag discharge pipe, powder feeding and powder returning pipes of coal-fired power plants, ceramic-lined wear-resistant steel pipes are also widely used in the following industries:
- Mine: Coal water slurry, coal washing slime, mine filler, pulverized coal; Metal mines (pipeline transportation of concentrates and tailings).
- Metallurgy: Blast furnace coal injection and slag conveying pipelines; Optimal pipelines for steel-making conveying ferroalloys and refining outside the furnace.
- Cement plant.

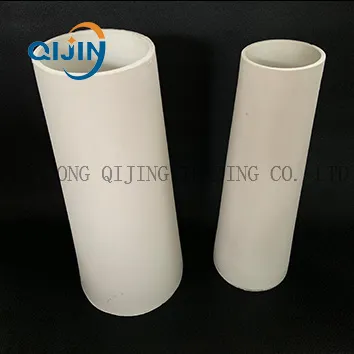

📷 Photo Gallery
💎 Ceramic Pipe Advantages
- High hardness
- Superior abrasion resistance
- Corrosion and chemical resistance
- Light weight
- Low maintenance cost: Super wear-resistance reduce the maintenance frequency.
- Good fluidity: Smooth surface ensure the free flow of material without blocking.

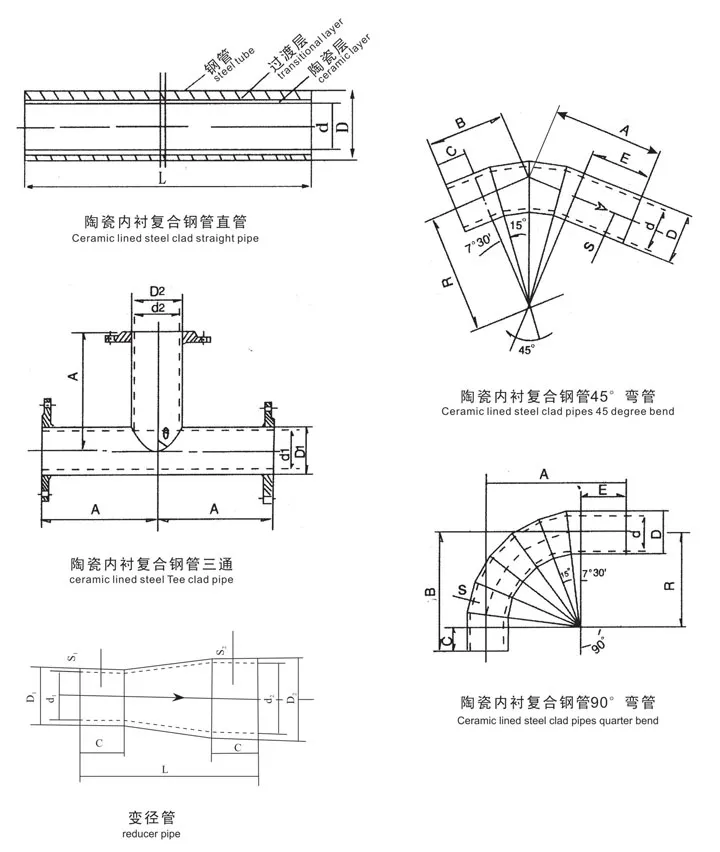

📏 Pipe Sizes Specifications
| Product |
ID(mm) |
OD(mm) |
Thickness(mm) |
Length(mm) |
R(mm) |
Degree |
| Straight Tube | 76 | 106 | 15 | 150-250 | / | / |
| Straight Tube | 100 | 140 | 20 | 305 | / | / |
| Straight Tube | 150 | 185 | 17.5 | 150-250 | / | / |
| Straight Tube | 152 | 182 | 15 | 150-250 | / | / |
| Straight Tube | 200 | 240 | 20 | 305 | / | / |
| Bend | 76 | 106 | 15 | / | 400 | 7.5 |
| Bend | 101 | 131 | 15 | / | 500 | 5 |
| Bend | 150 | 185 | 17.5 | / | 1500 | 3 |
| Bend | 151 | 181 | 15 | / | 750 | 7.5 |
| Ceramic pipe sizes range : 10~500 mm |
⚠️ Transport and Installation Precautions
- The ceramic composite pipe has high hardness but should be handled gently to avoid serious collisions or direct impact on the ceramic layer.
- Bending pipes must be installed following the direction indicated by the arrow on the surface.
- Ensure alignment with the center line; displacement at both ends should be controlled within 1.0mm.
- When using flexible joints, adjust inserted lengths symmetrically. Expansion clearance can be reduced by 3-5mm.
- For flange connections, ensure the flange end is flush with the composite pipe end.
- Welding is possible; use a 45°-60° "V" type slope angle with a 0.8-1.2mm gap.
📦 Package
❓ Frequently Asked Questions
Are you a trading company or manufacturer?
We are a factory and manufacturer.
How long is your delivery time?
Generally, it is 15 days if the mould sizes are in stock, or 25 days if the sizes need to be customized, depending on the quantity.
Do you provide samples? Is it free?
Yes, we provide stock samples for free, though customers are responsible for the freight cost.
What are your terms of payment?
For new customers, 100% T/T in advance. For regular customers, 30% T/T in advance and the balance upon receipt of the B/L copy.
What industries use these ceramic pipes?
They are widely used in mining, power plants (ash removal), metallurgy (blast furnaces), and cement plants for abrasion resistance.
Can the pipe sizes be customized?
Yes, the specifications are fully customizable within a size range of 10mm to 500mm.
