Basic Information
Certification:ISO, RoHS, IBR

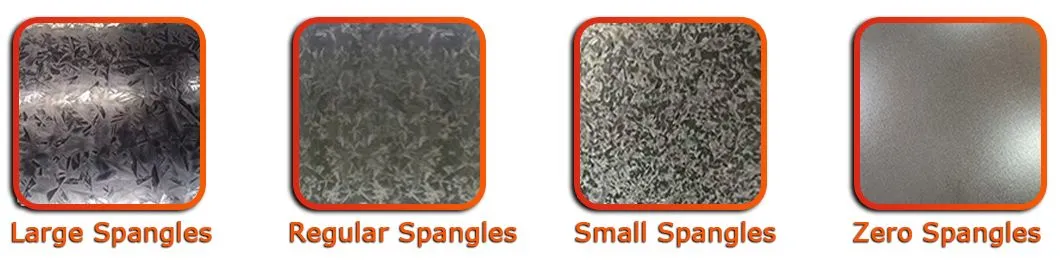

Surface Treatment:Galvanized
Technique:Hot Rolled
Zn Coating:Z30-Z275
Thickness:0.12mm-0.8mm
Width:660~1100mm
HS Code:7210410000
Capacity:500,000 tons/Year

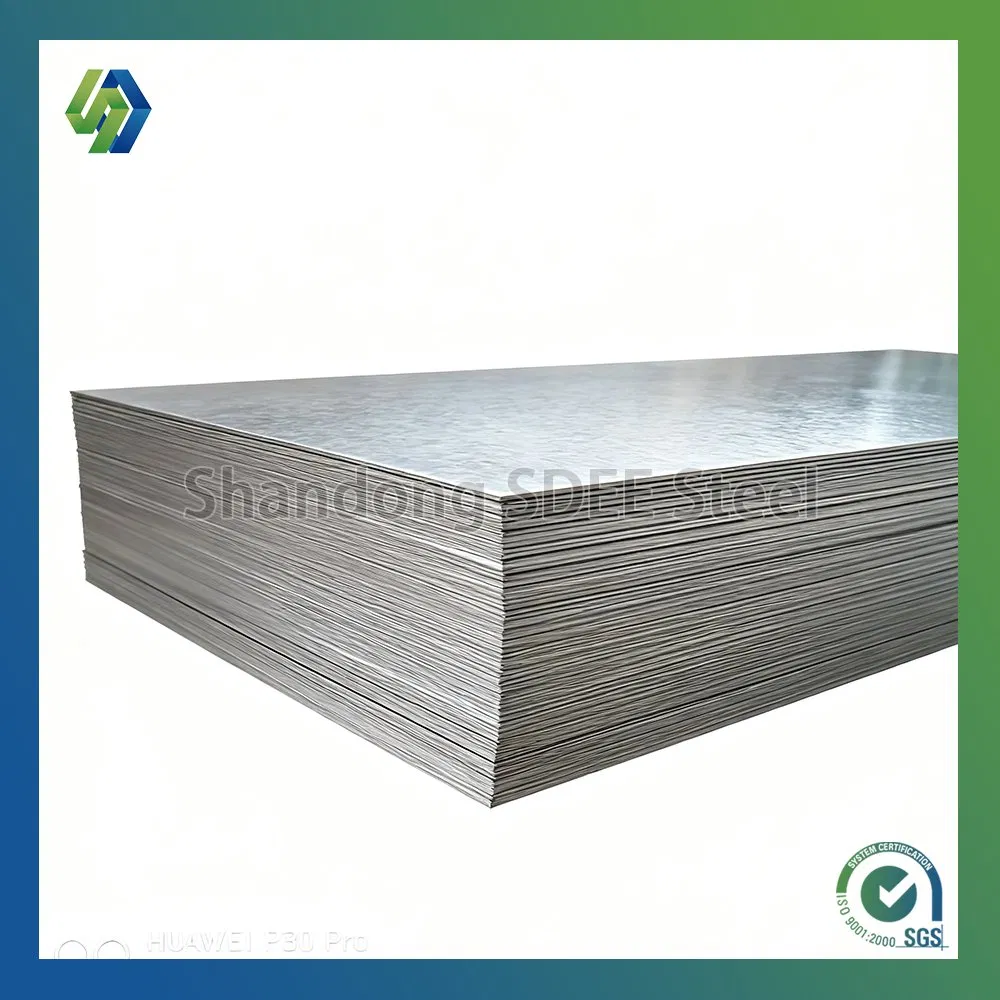

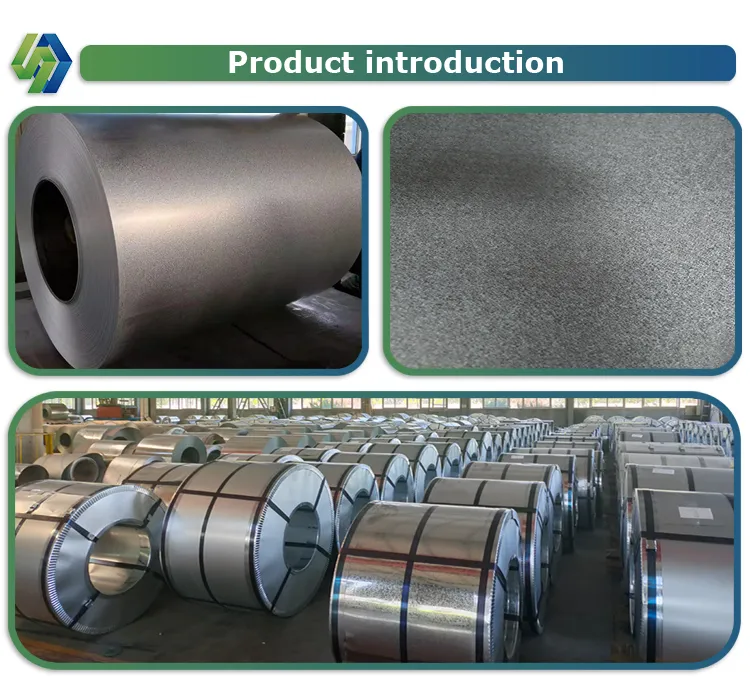

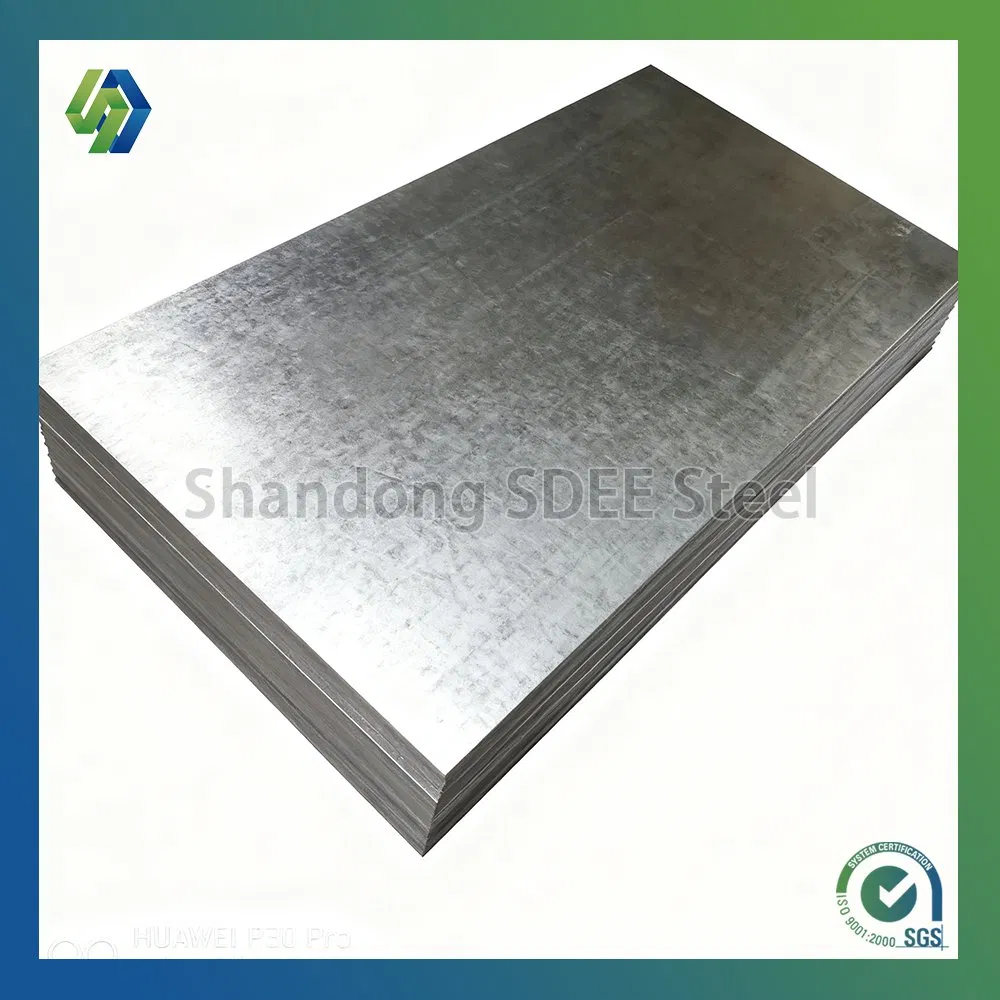

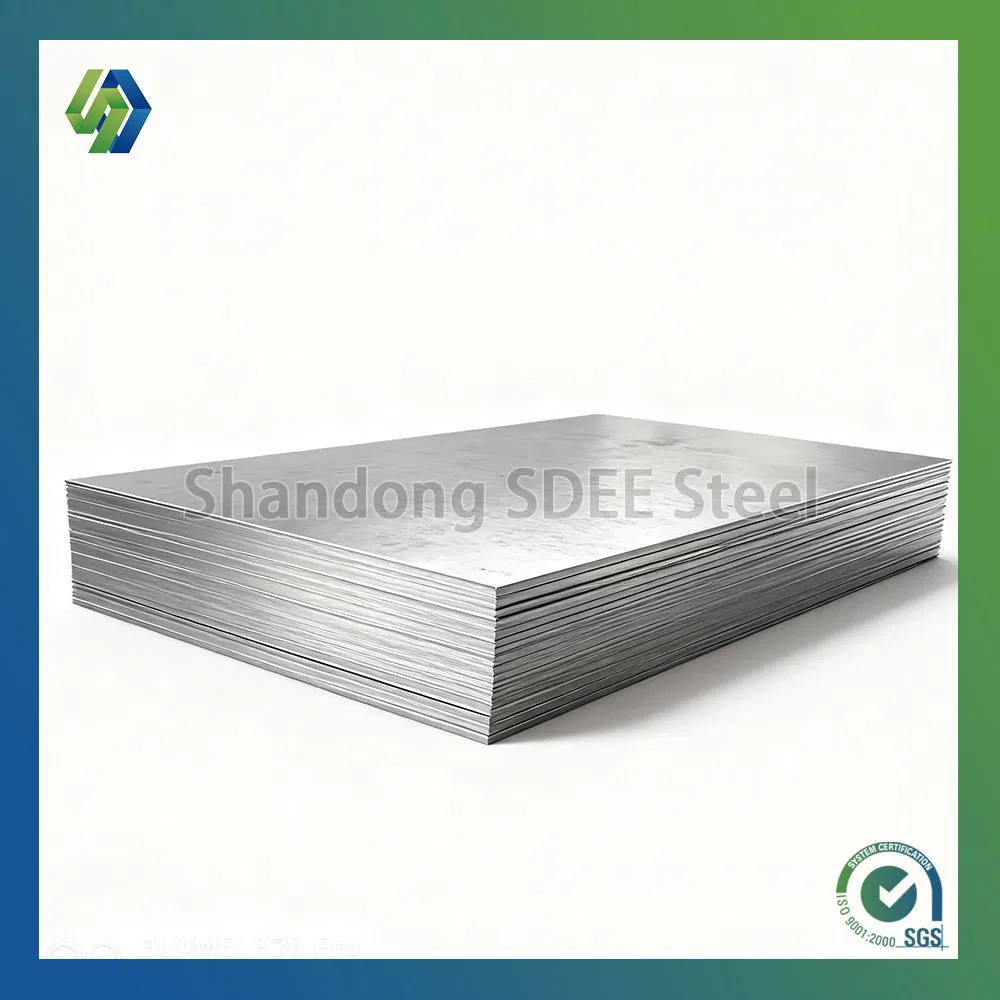

SGCC Galvanized Steel Sheet Overview
Key Specifications:
• Thick: 0.12~0.8 mm
• Width: 660-1100 mm
• Material: SGCC, DX51D~DX53D, G350-G550
• Zinc coating: 40~275G/M2
• Payment terms: T/T, LC, Western Union, Paypal, O/A, DP
| Feature |
Details |
| Grade | DX51D+Z, DX52D+Z, SGCC, SGC340, S220GD+Z to S550GD+Z |
| Coating Types | PE, SMP, JD, HDP, PVDF |
| Paint Micron | Top: 10~25μm | Back: 5~12μm |
| Finish | High light, Glossy, Matte |
| Application | Building industry, structural use, roofing, household appliance |
Chemical Composition & Mechanical Properties
| Steel Grade |
C% (max) |
Si% (max) |
Mn% (max) |
Tensile (MPa) |
Yield (MPa) |
| SGCC / DX51D+Z | 0.07 | 0.03 | 0.50 | 270-500 | 140-280 |
| S220GD+Z | 0.17 | 0.30 | 1.00 | 300-440 | >220 |
| S350GD+Z | 0.20 | 0.55 | 1.60 | 420-560 | >350 |
Service and Support
Pre-sale Service:
• Samples available for testing.
• Over 10 years of design and manufacturing experience.
• OEM & ODM orders accepted with custom logo printing.
Customer Service:
• Logistics optimization and instant sea freight updates.
• Full quality inspection reports provided after payment.
• Real-time shipping tracking until delivery.
Frequently Asked Questions
What is the thickness range for your galvanized steel sheets?
Our galvanized steel sheets are available in a thickness range from 0.12mm to 0.8mm.
What types of surface treatments do you offer?
The primary surface treatment is galvanized, with options for PE, SMP, JD, HDP, and PVDF coatings.
What are the main applications for these steel plates?
They are widely used in the building industry, roofing, structural components, household appliances, and office buildings.
Can I request a custom logo or design on the products?
Yes, we accept OEM and ODM orders, including free logo printing according to your requirements.

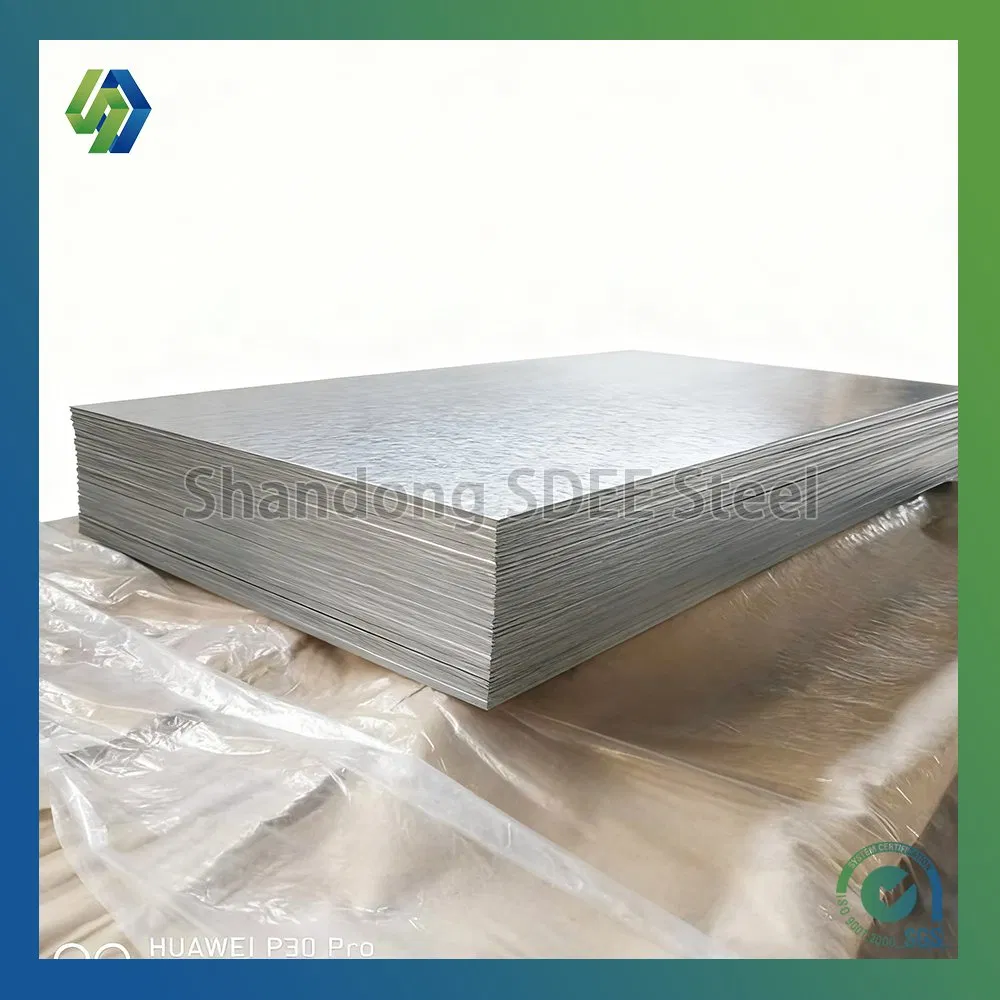

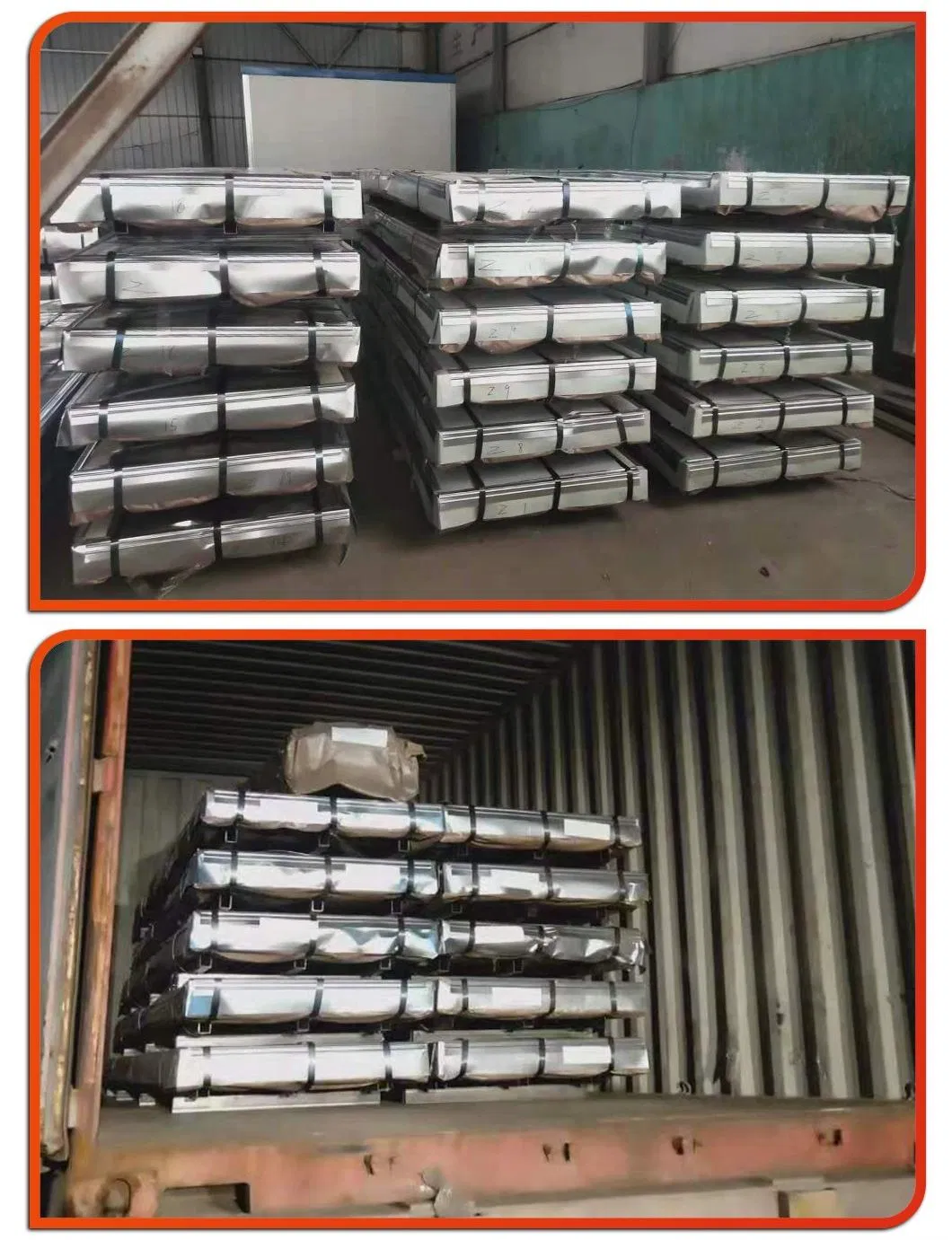

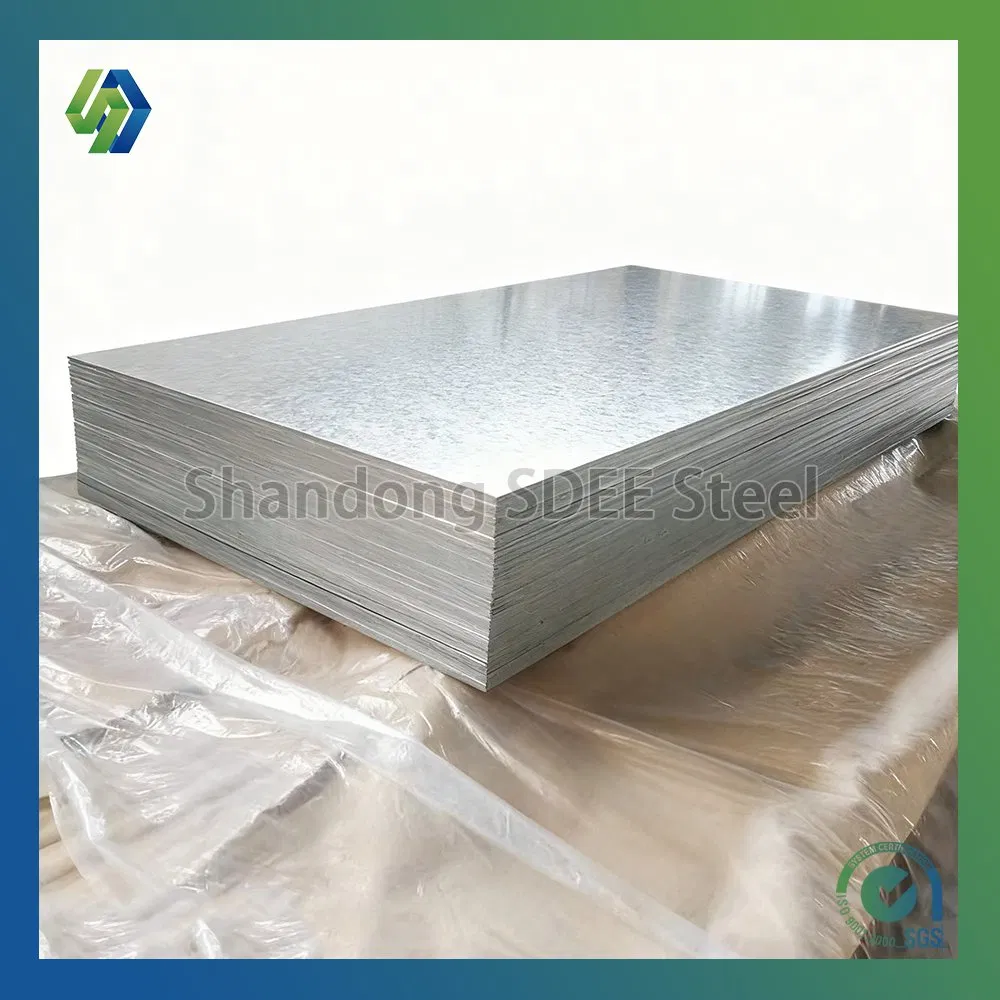

How is the steel packaged for international shipping?
We use a 3-layer export standard package: kraft paper inside, water plastic film in the middle, and GI steel sheet outside secured with steel strips.
What certifications do your products hold?
Our products are certified under ISO, RoHS, and IBR standards, ensuring high quality and safety.
