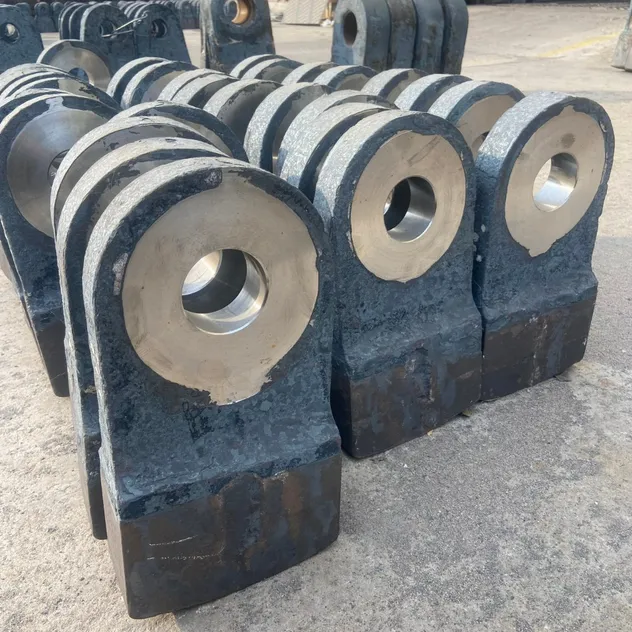

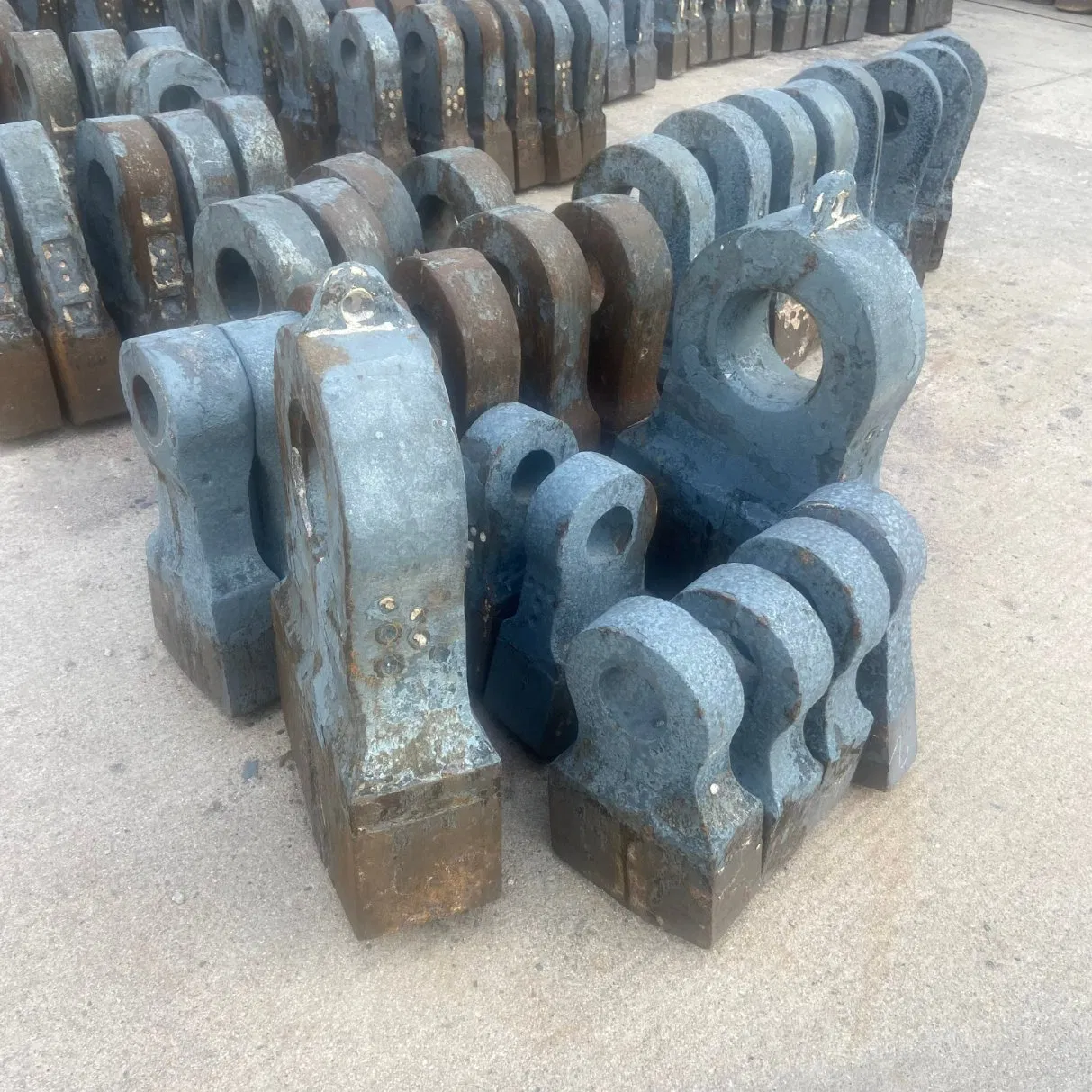

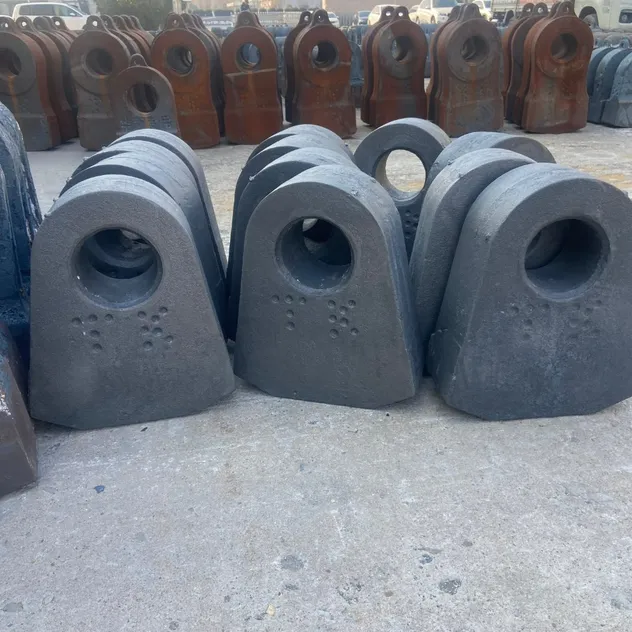

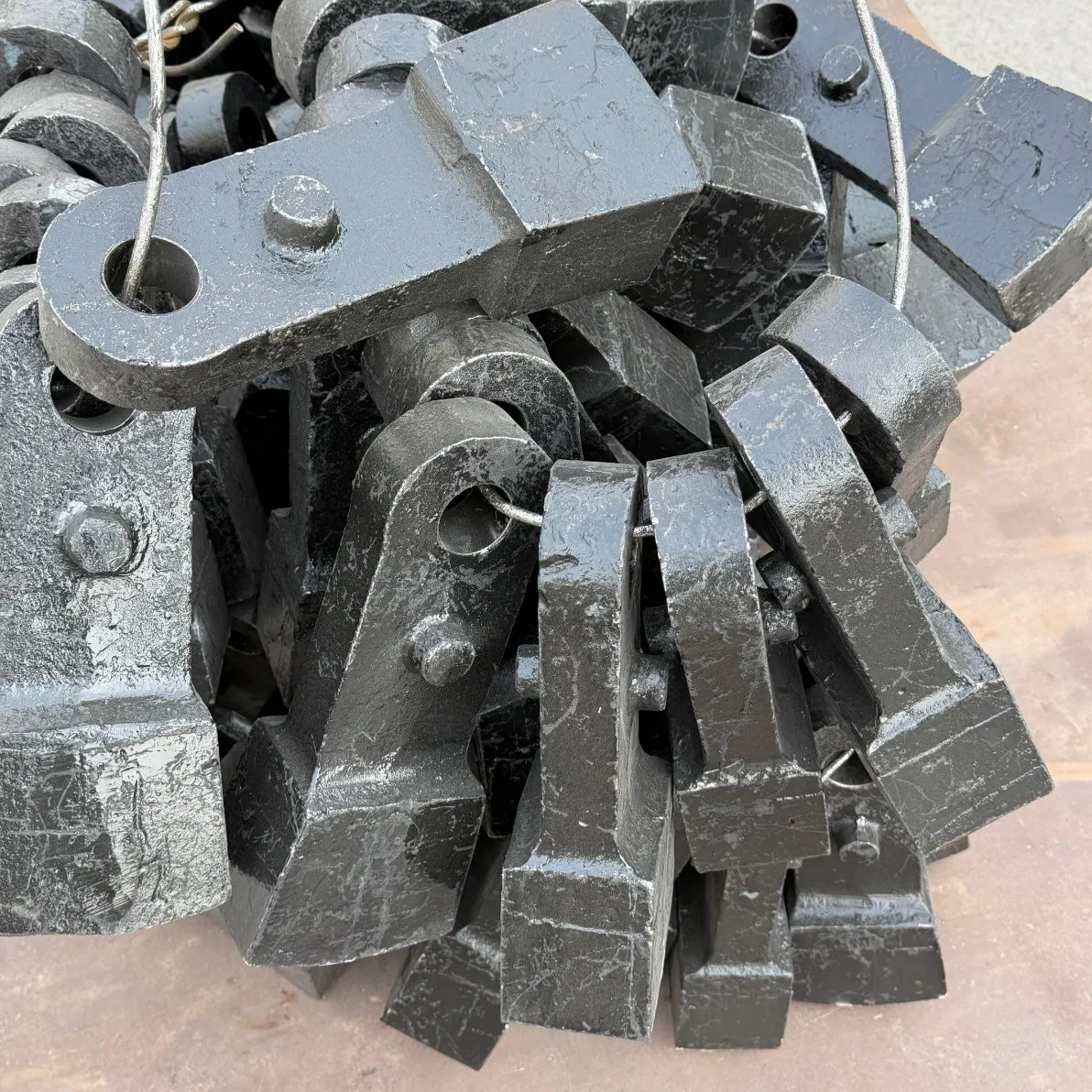

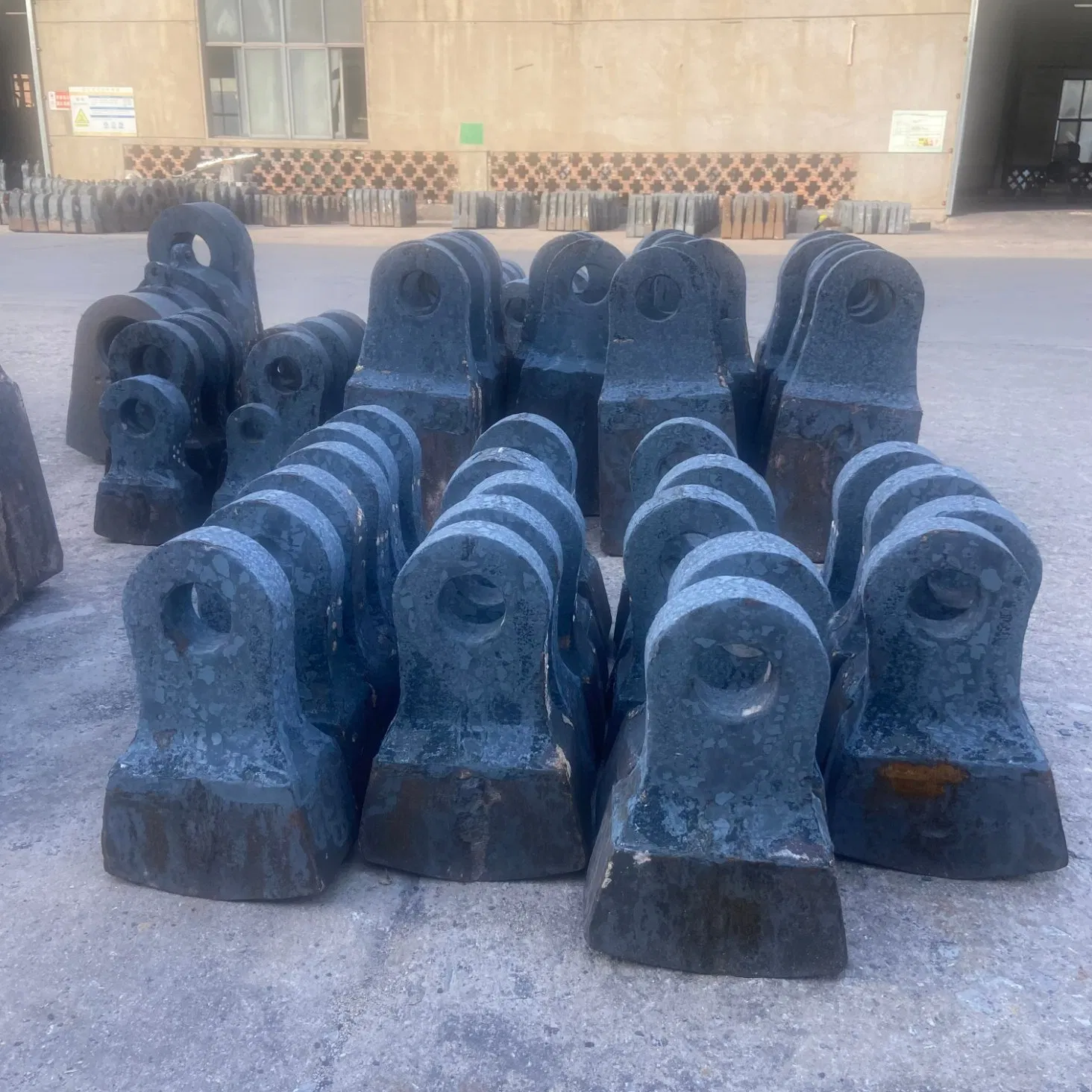

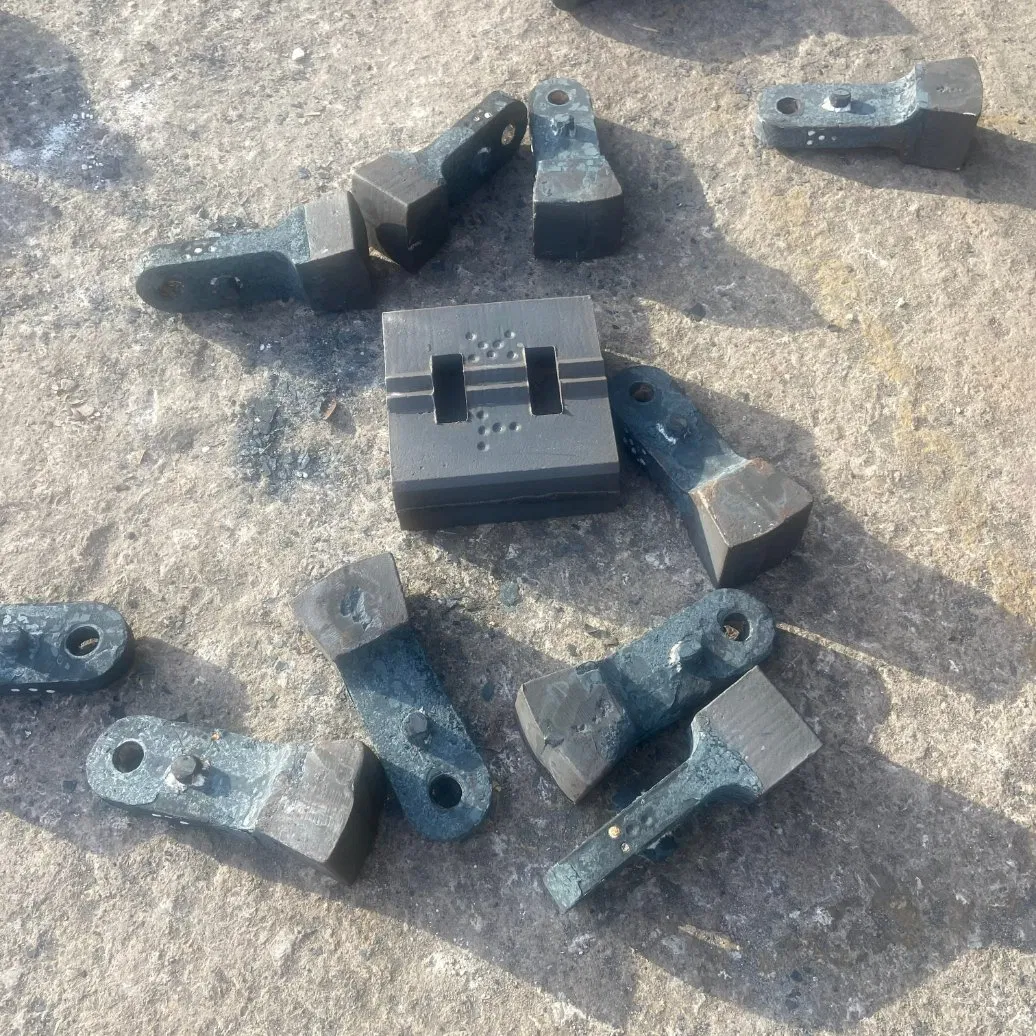

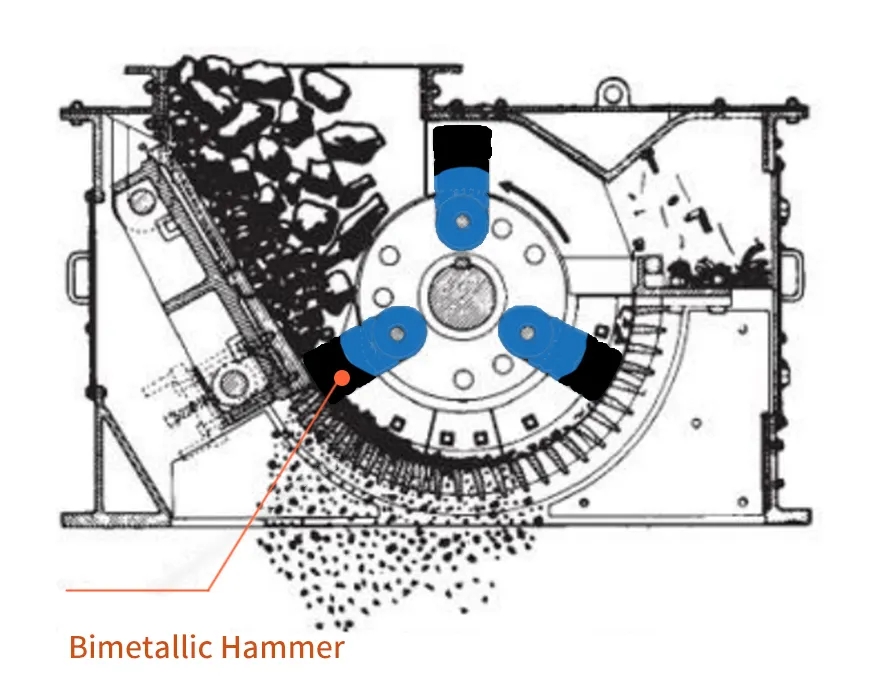

Process Features: The metallurgical combination of the two materials is achieved through the liquid fusion process of the two metals, combining the excellent wear resistance of high-chromium cast iron and the good toughness of alloy steel. The striking part is usually made of high-chromium cast iron (Cr20~30%); the handle is mostly made of high-hardness and toughness alloy steel.
| High-chromium lining plate | ||||
|---|---|---|---|---|
| Category | Impact toughness AK (J/cm²) | Rockwell hardness (HRC) | Microstructure | Performance |

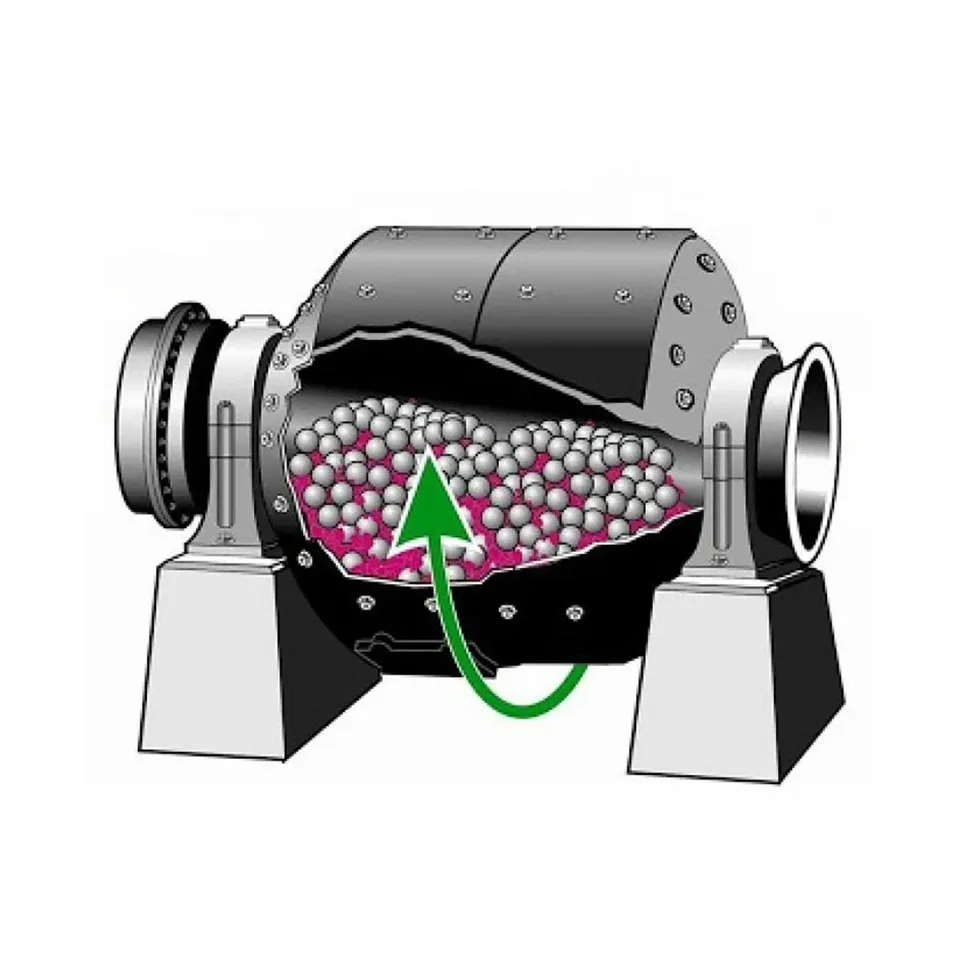

| Cr15 | ≥8 | ≥60 | M+M7C3+M23C6+A | suitable for mills below 3 meters, 3-5 years life |
| Cr20 | ≥8 | ≥60 | M+M7C3+M23C6+A | suitable for mills above 3 meters, 3-8 years life |
| Cr26 | ≥8 | ≥60 | M+M7C3+M23C6+A | suitable for mills above 4 meters, 5-10 years life |
