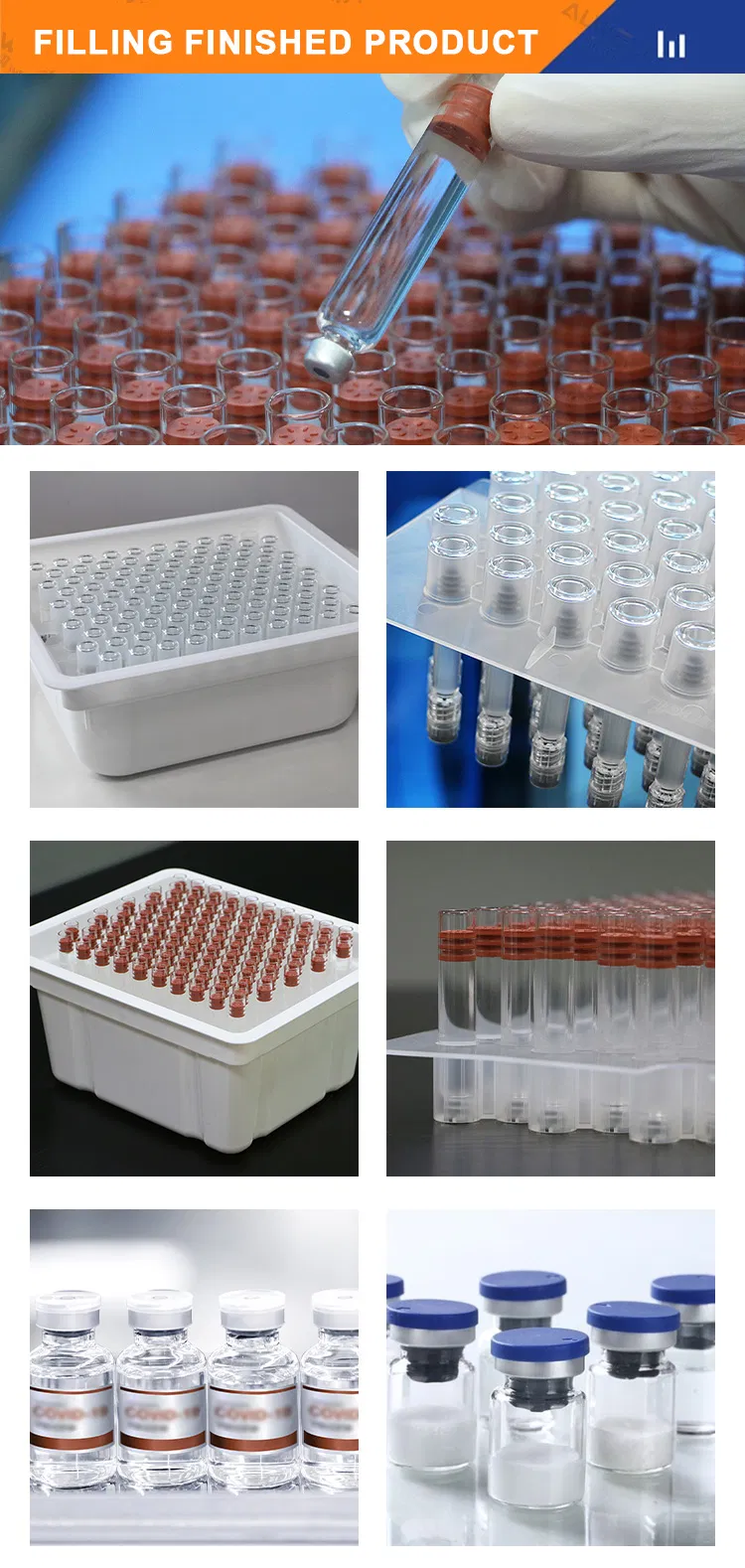

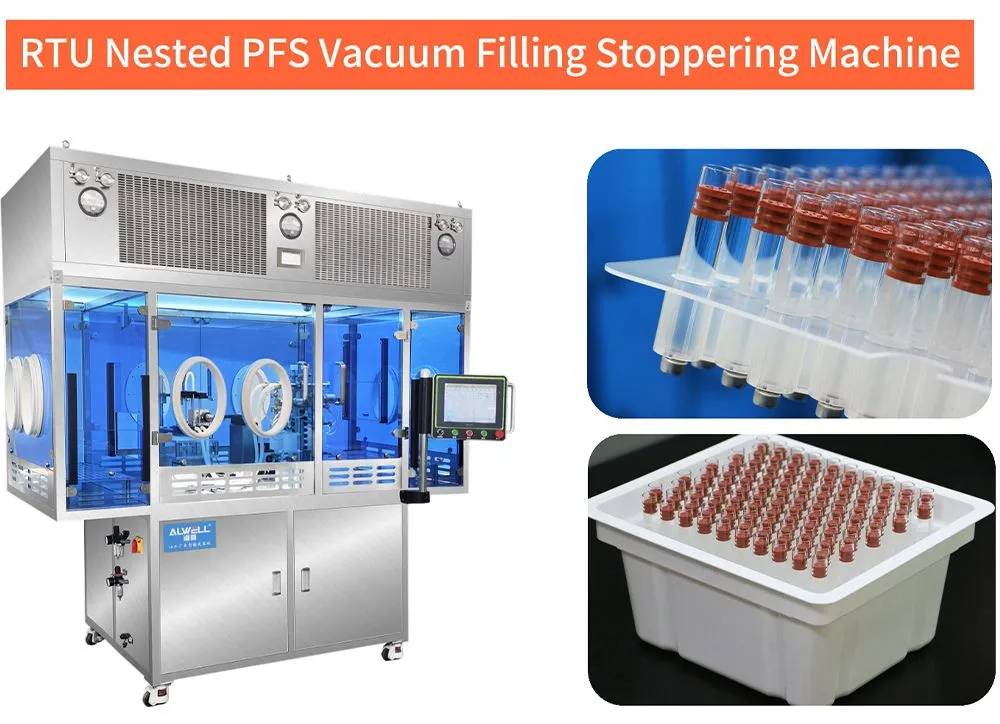

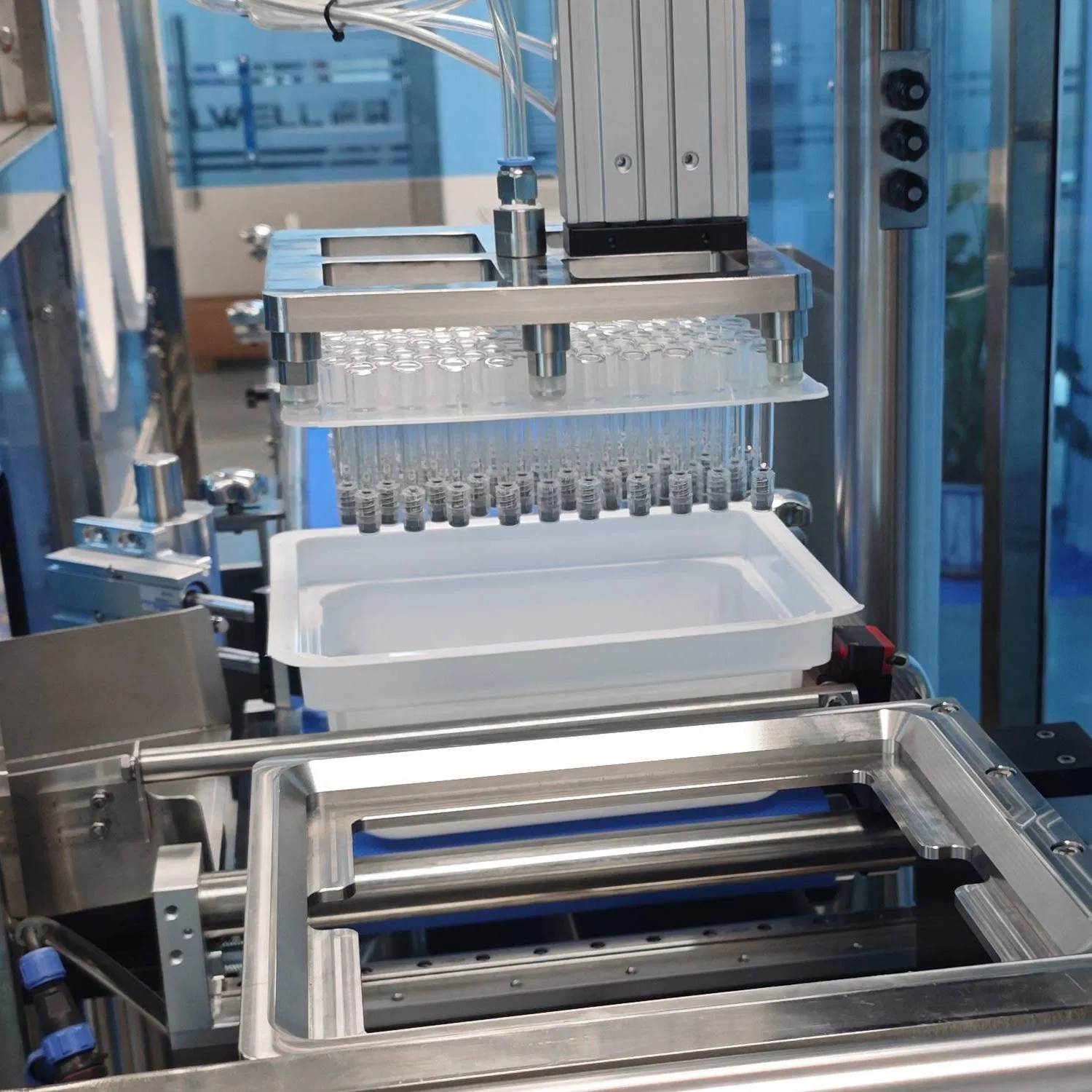

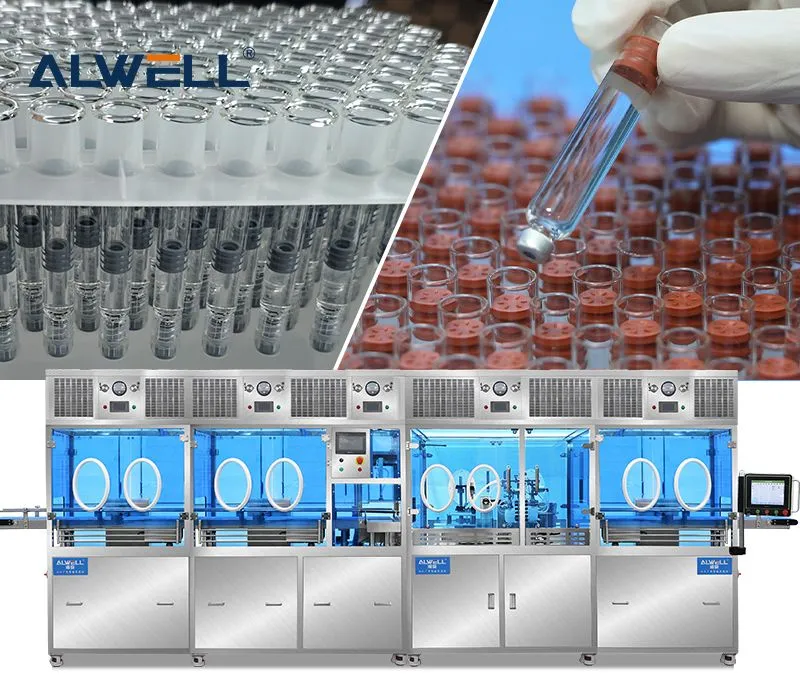

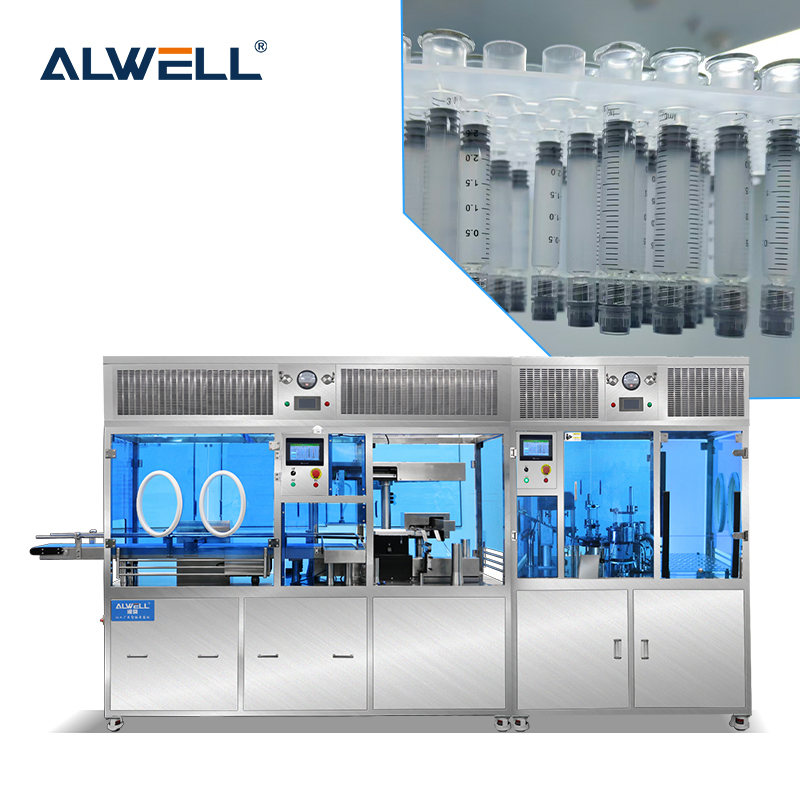

This equipment is a highly automated single-nest cassette filling host designed for prefilled filling of precision liquids such as vaccines, biologics, insulin, high-value cosmetics, adhesives, etc. It is the core unit for building a complete "fully automatic cartridge/prefilled syringe filling production line".

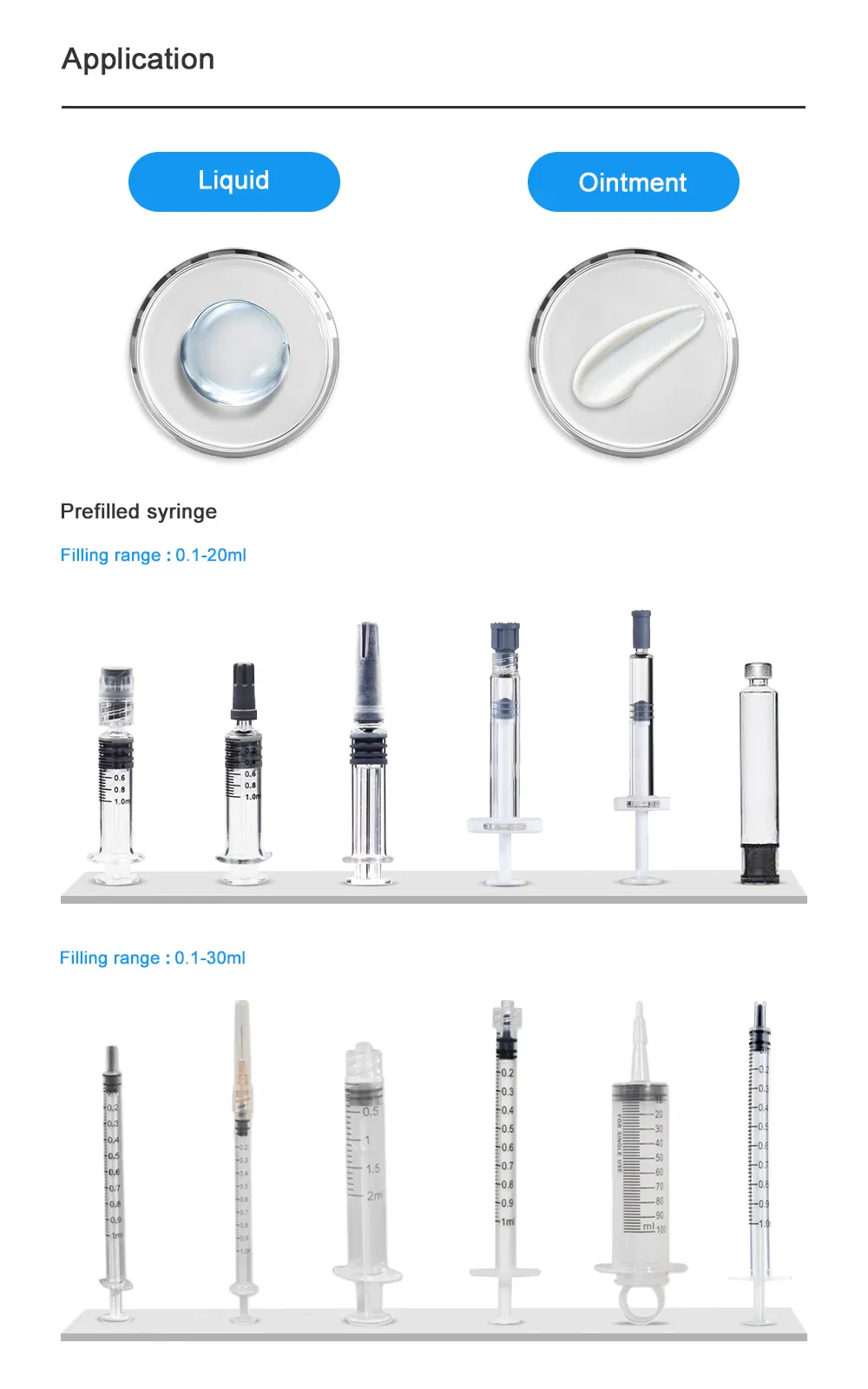

Applications:
• Pharmaceutical industry: insulin cartridges, GLP-1 analog pen refills, vaccine prefilled needles, biologic syringes, anesthetics, etc.
• Biotechnology: cell therapy, gene therapy vectors, diagnostic reagents.
• High-end cosmetics: essence, high-active ingredient filling.
• Others: precision chemical reagents, high-value adhesives, etc.
| Item | Specifications |
|---|---|
| Syringes | 0.5ml-50ml Glass or Plastic |
| Filling Heads | 2/5/10 (Customizable) |
| Capacity | 4000-11000pcs/h |
| Compressed Air | 0.6Mpa |
| Supply Power | 3P 380V 50-60Hz 3KW |
| Dimension | 1700*700*1700mm (L*W*H) |
| Net Weight | 500Kg |

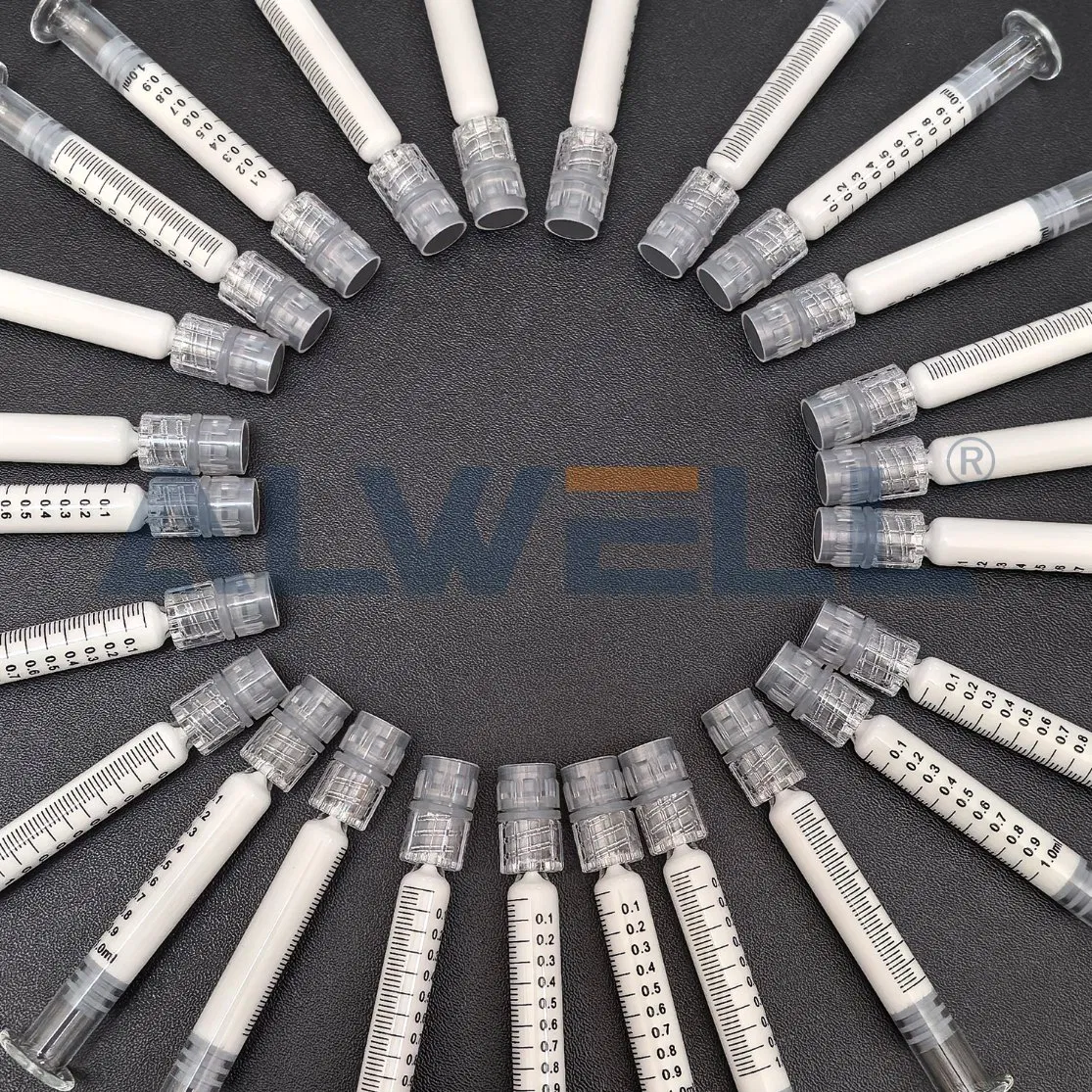

1. Suitable for glass or plastic syringe liquid filling and rubber sealing.

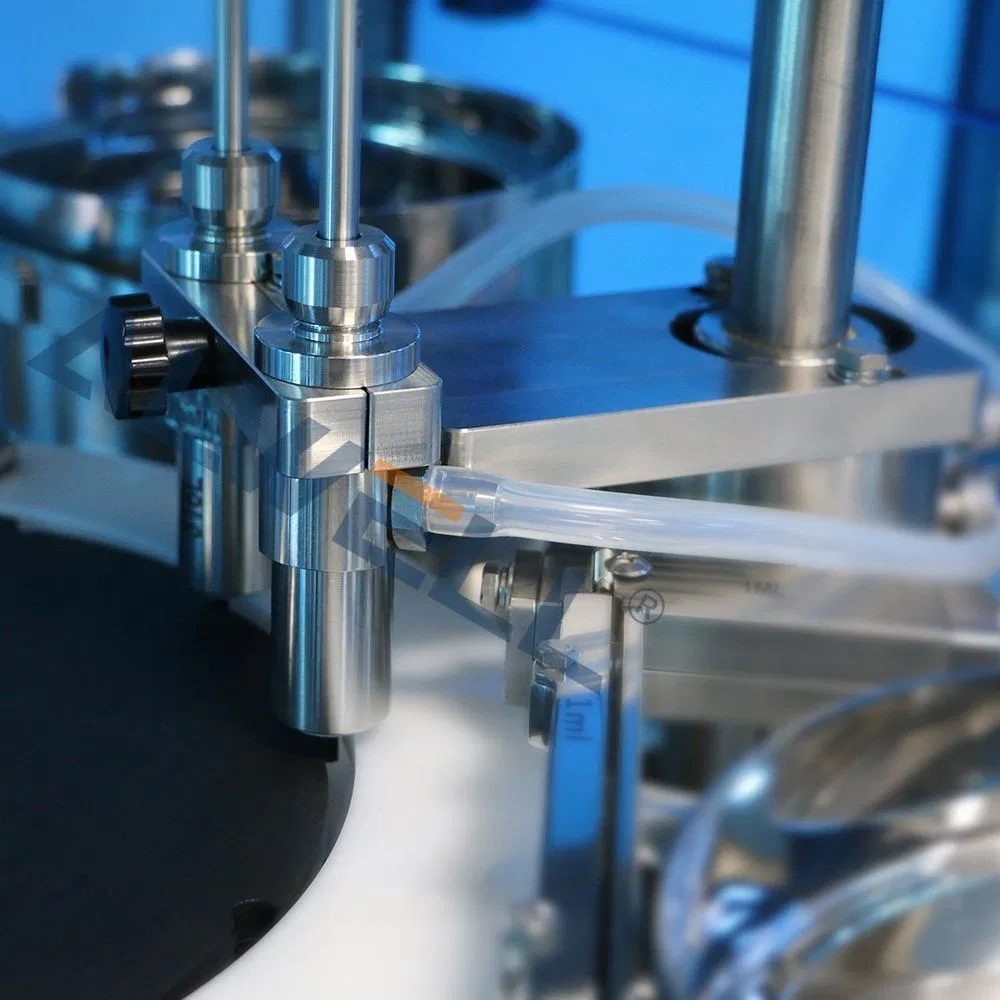

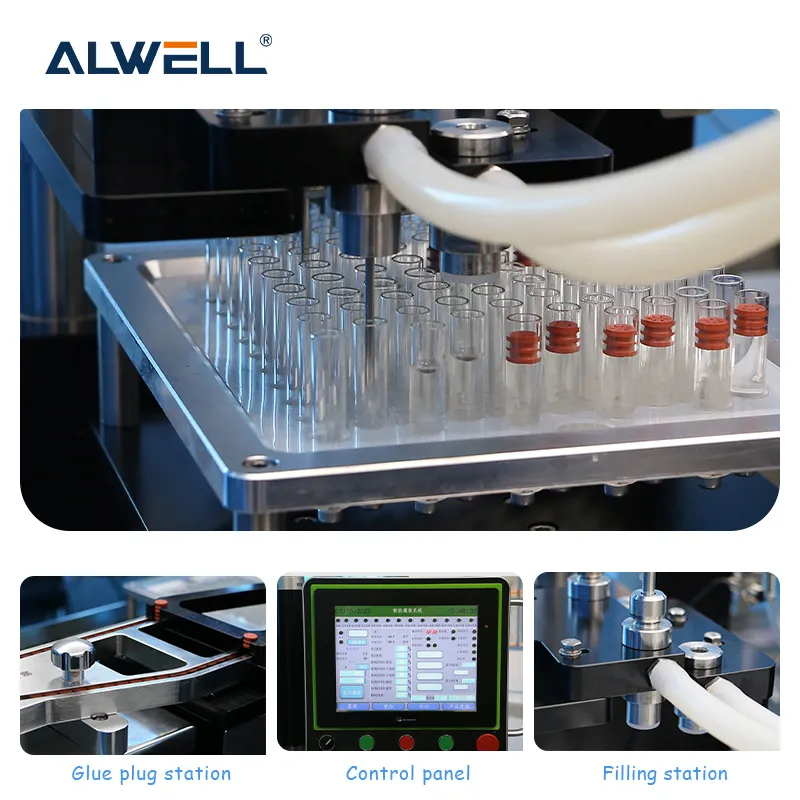

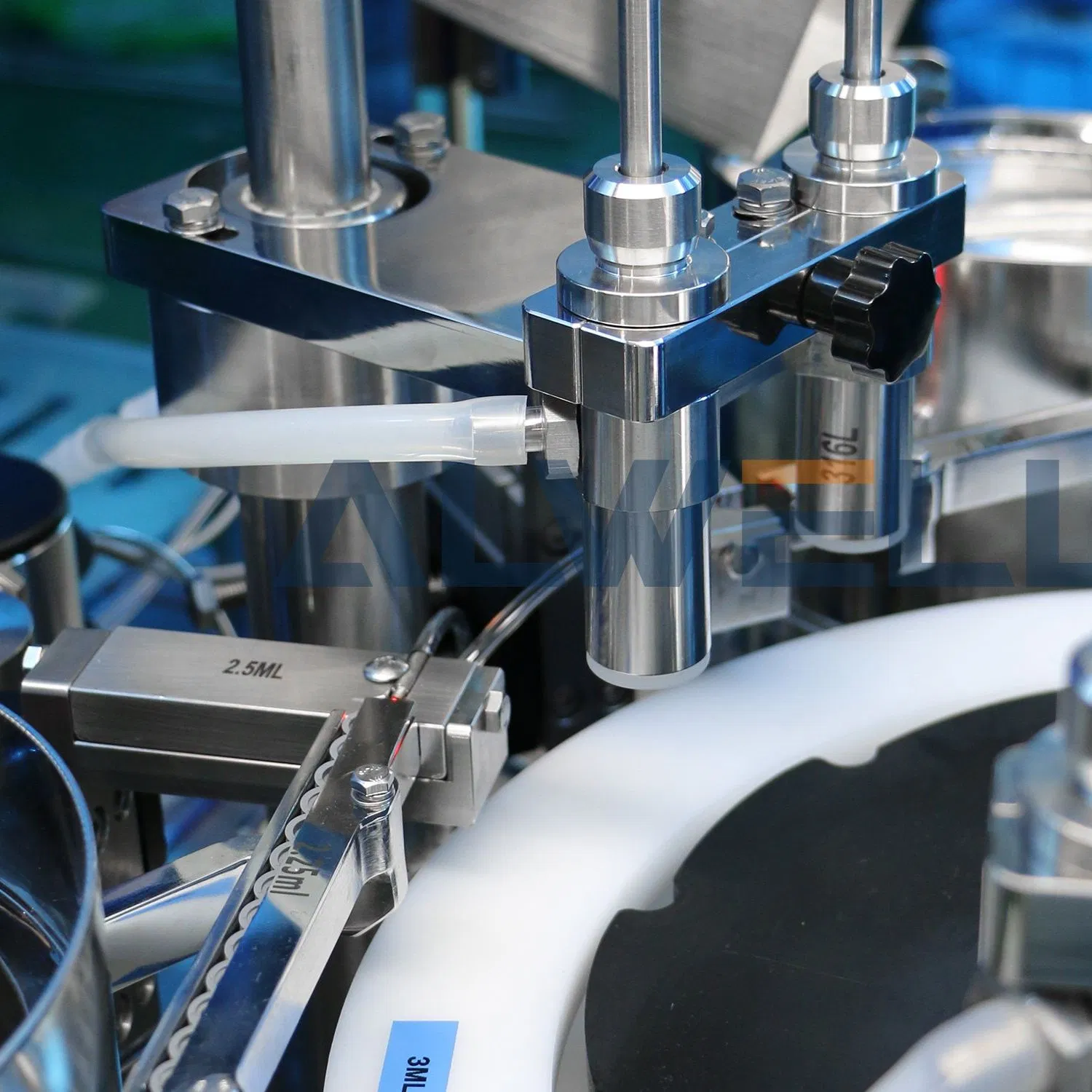

2. Double station filling and rubber sealing simultaneously. High precision ceramic pump.

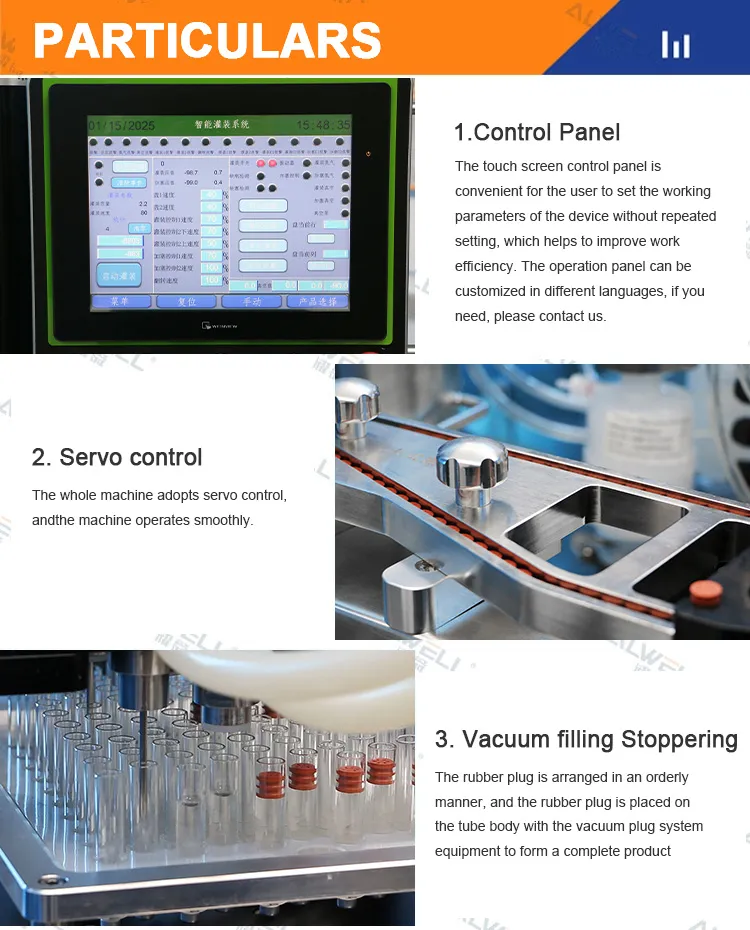

3. Full set of servo motor drive, accurate and stable loading.
4. Secondary screw cap mechanism improves qualification rates.
5. All contact parts are SUS316L stainless steel and medical silicone rubber.

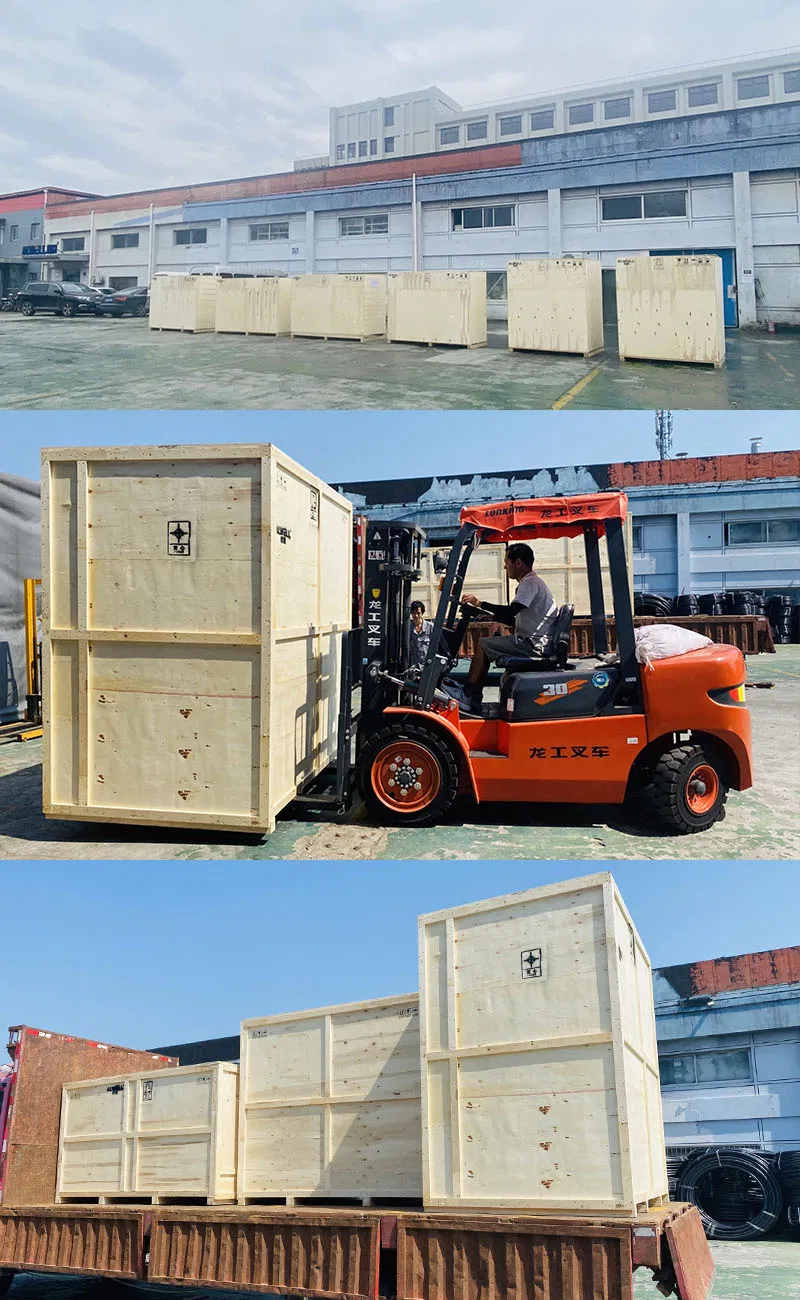

The machine will be fixed and then packed in wooden cases. Fast Delivery! The earliest delivery is 10 days after payment.
We have 10 years experience in the industry with a 2000 square meter factory. Our main products include check weighers, metal detectors, and specialized syringe filling lines.
